StudioStation 100 Rear Panel Reset
The Reset button on the rear panel of the StudioStation 100 (see
page 11) returns the StudioStation 100 to various modes of operation. There are three
unit reset modes (numbered 1, 4, and 5) that are initiated from the rear panel reset button.
To select different reset modes, use a pointed stylus or small screwdriver to press and hold
the
button while applying power to the StudioStation 100.
NOTES:
ATTENTION:
See figure 6 for simple reset instructions and the
for a summary of the reset modes.

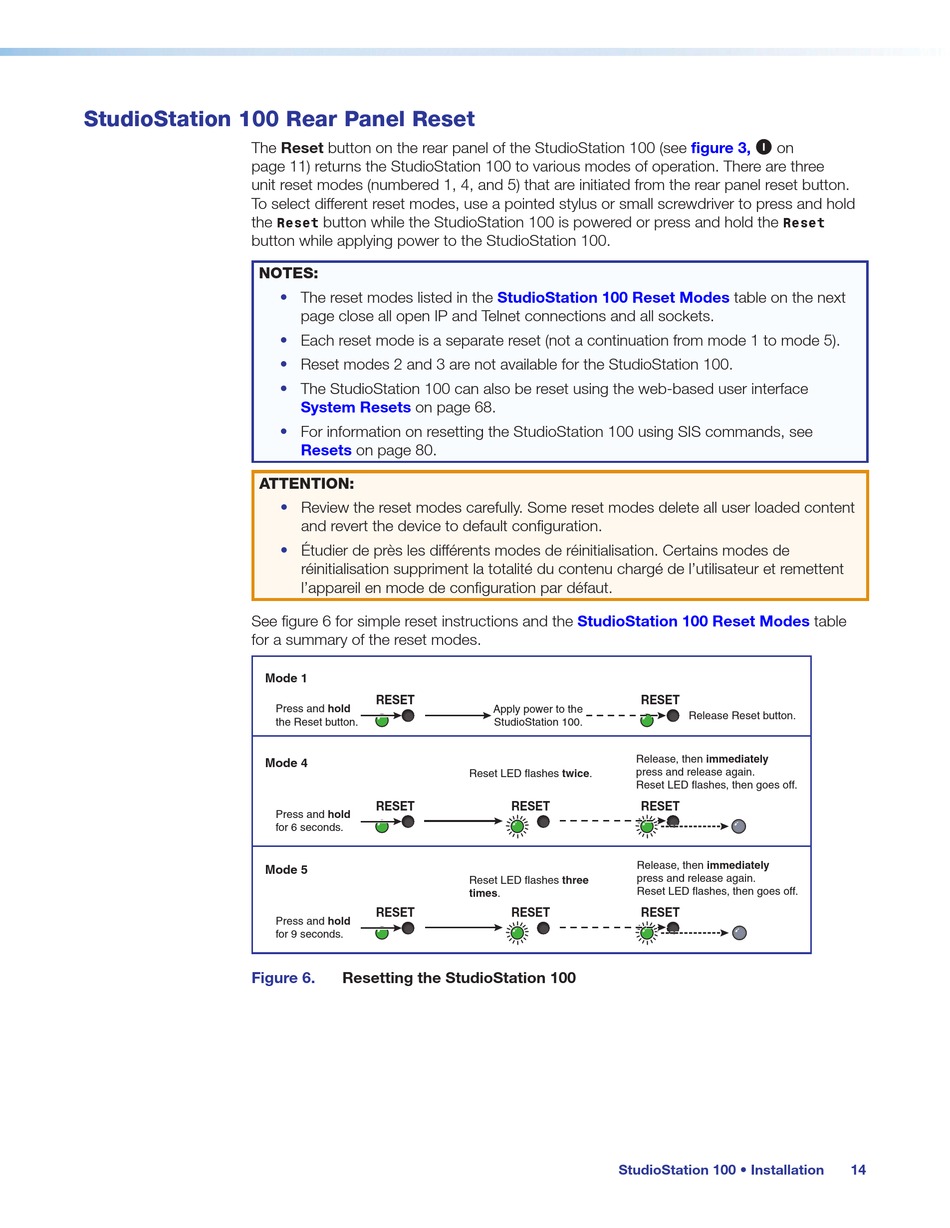

Figure 6.
button while the StudioStation 100 is powered or press and hold the
Reset
•
The reset modes listed in the
page close all open IP and Telnet connections and all sockets.
• Each reset mode is a separate reset (not a continuation from mode 1 to mode 5).
•
Reset modes 2 and 3 are not available for the StudioStation 100.
• The StudioStation 100 can also be reset using the web-based user interface
System Resets on page 68.
• For information on resetting the StudioStation 100 using SIS commands, see
Resets on page 80.
• Review the reset modes carefully. Some reset modes delete all user loaded content
and revert the device to default configuration.
•
Étudier de près les différents modes de réinitialisation. Certains modes de
réinitialisation suppriment la totalité du contenu chargé de l'utilisateur et remettent
l'appareil en mode de configuration par défaut.
Mode 1
RESET
Press and hold
the Reset button.
Mode 4
RESET
Press and hold
for 6 seconds.
Mode 5
RESET
Press and hold
for 9 seconds.
Resetting the StudioStation 100
StudioStation 100 Reset Modes
StudioStation 100 Reset Modes
RESET
Apply power to the
StudioStation 100.
Release, then immediately
press and release again.
Reset LED flashes twice.
Reset LED flashes, then goes off.
RESET RESET
Release, then immediately
press and release again.
Reset LED flashes three
Reset LED flashes, then goes off.
times.
RESET RESET
