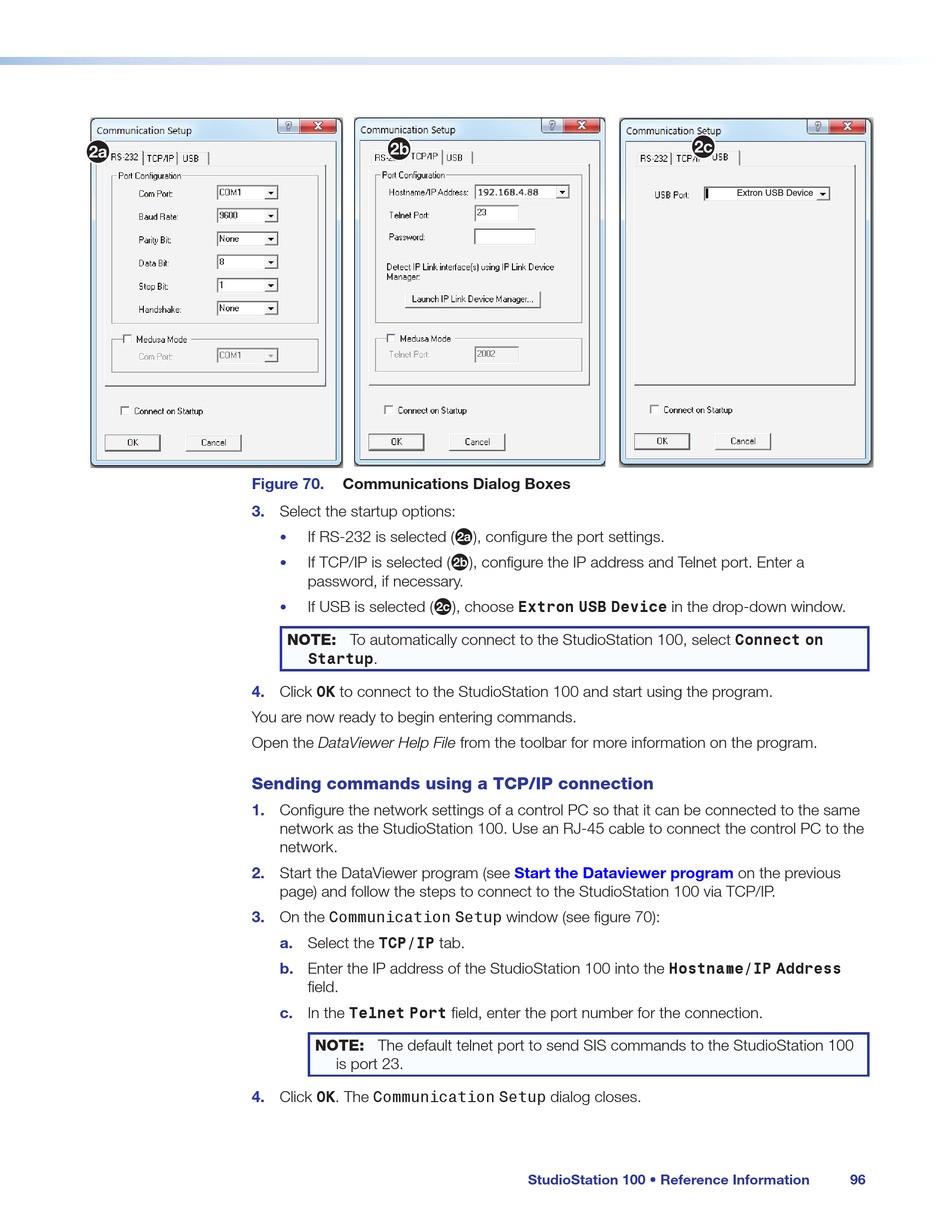

Figure 70.
3.
4.
You are now ready to begin entering commands.
Open the DataViewer Help File from the toolbar for more information on the program.
Sending commands using a TCP/IP connection
1.
2.
3.
4.
Ö Ö
Communications Dialog Boxes
Select the startup options:
If RS‑232 is selected (
Õ
•
If TCP/IP is selected (
• Ö
password, if necessary.
If USB is selected ( ), choose Extron USB Device in the drop‑down window.
• ×
NOTE: To automatically connect to the StudioStation 100, select Connect on
Startup.
Click OK to connect to the StudioStation 100 and start using the program.
Configure the network settings of a control PC so that it can be connected to the same
network as the StudioStation 100. Use an RJ‑45 cable to connect the control PC to the
network.
Start the DataViewer program (see
page) and follow the steps to connect to the StudioStation 100 via TCP/IP.
On the Communication Setup window (see figure 70):
a. Select the TCP/IP tab.
b. Enter the IP address of the StudioStation 100 into the Hostname/IP Address
field.
c. In the Telnet Port field, enter the port number for the connection.
NOTE: The default telnet port to send SIS commands to the StudioStation 100
is port 23.
Click OK. The Communication Setup dialog closes.
), configure the port settings.
), configure the IP address and Telnet port. Enter a
Start the Dataviewer program
