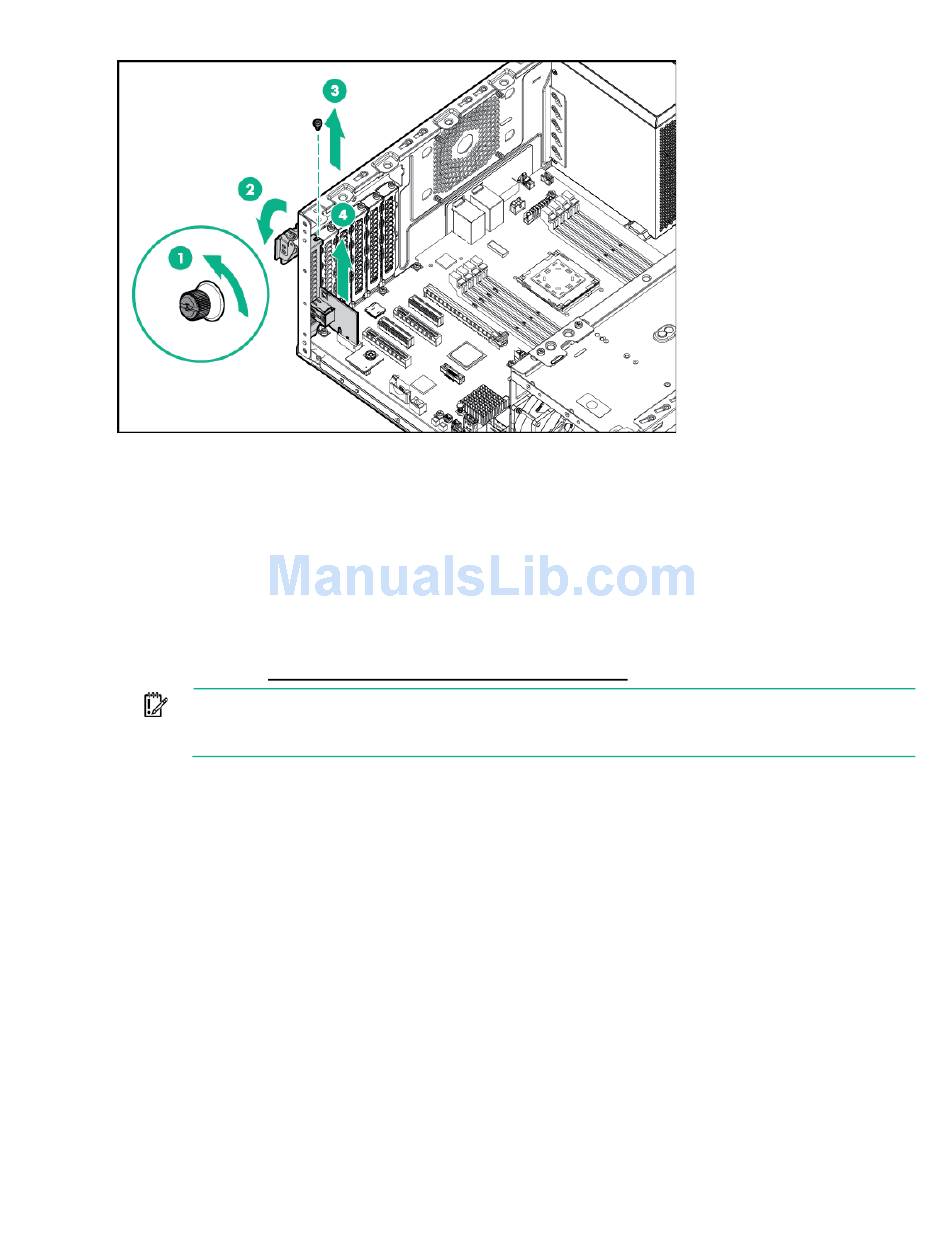

Open the slot cover and remove the Dedicated iLO port management module.
7.
To replace the component, reverse the removal procedure. After installing the new dedicated iLO
management module, enable the dedicated iLO connector
module" on page 60).

Enabling the dedicated iLO management module

The onboard NIC 1/shared iLO connector is set as the default system iLO connector. To enable the
dedicated iLO management module, use the iLO 4 Configuration Utility accessible within the HPE UEFI
System Utilities.
For more information on the UEFI System Utilities, see the UEFI documentation on the Hewlett Packard
Enterprise website (http://www.hpe.com/info/ProLiantUEFI/docs).
IMPORTANT: If the iLO configuration settings are reset to the default values, remote
access to the machine will be lost. Access the physical machine and repeat the procedure
described in this section to re-enable the dedicated iLO management connector.
To enable the dedicated iLO management module:
During the server startup sequence after installing the module, press F9 in the POST screen.
1.
The System Utilities screen appears.
Select System Configuration | iLO 4 Configuration Utility.
2.
The iLO 4 Configuration Utility screen appears.
Select Network Options, and then press Enter.
3.
The Network Options screen appears.
Set the Network Interface Adapter field to ON, and then press Enter.
4.
Press F10 to save your changes.
5.
A message prompt to confirm the iLO settings reset appears.
Press Enter to reboot the iLO settings.
6.
Press Esc until the main menu is displayed.
7.
Select Reboot the System to exit the utility and resume the boot process.
8.
The IP address of the enabled dedicated iLO connector appears on the POST screen on the
subsequent boot-up. Access the Network Options screen again to view this IP address for later
reference.
("Enabling the dedicated iLO management
Removal and replacement procedures 60
