Gpu Supporting Holder - HPE ProLiant ML110 Gen9 Maintenance And Service Manual

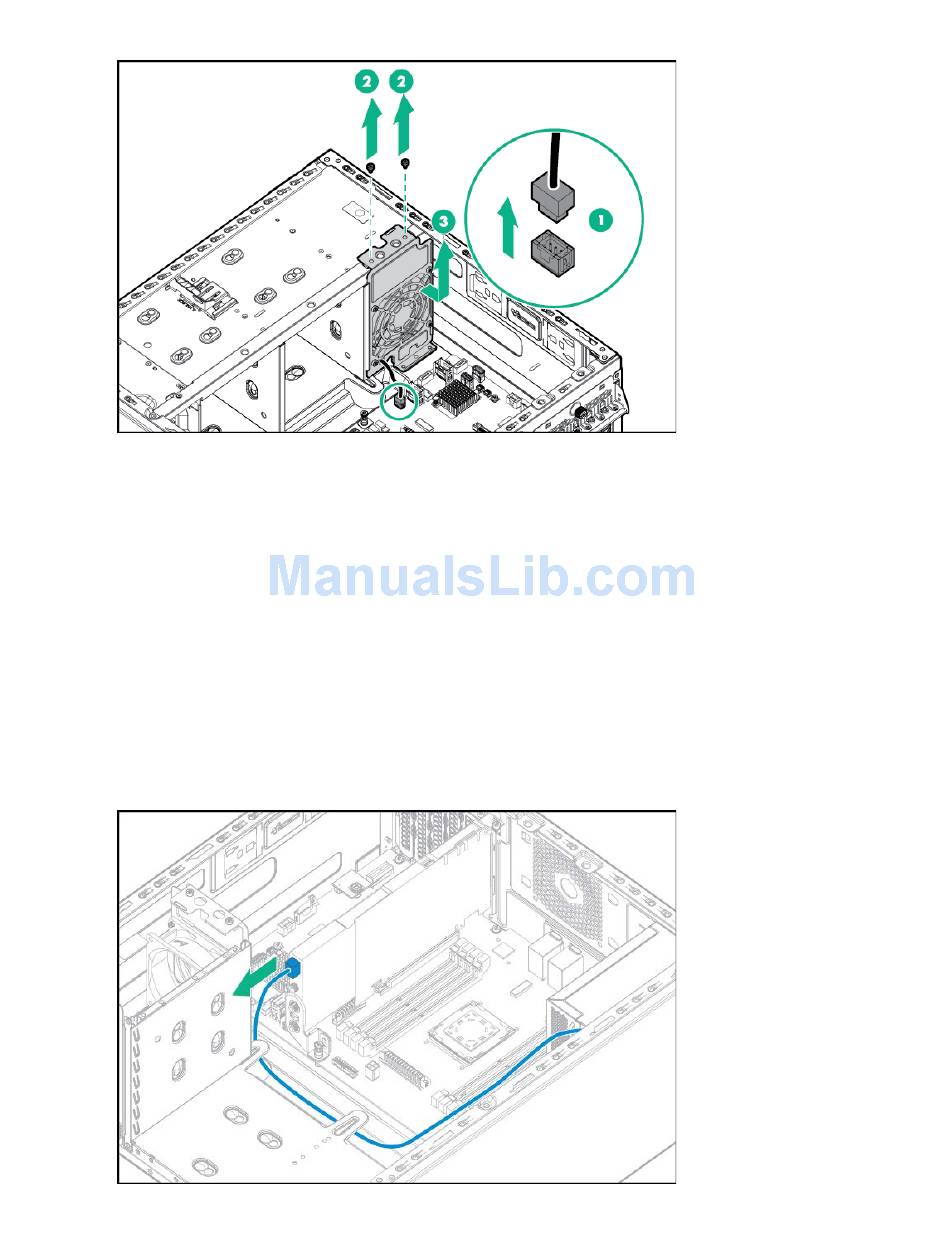

Disconnect the fan power cable and remove the PCI fan.
7.
To replace the component, reverse the removal procedure.

GPU supporting holder

To remove the component:
Power down the server (on page 24).
1.
Remove all power:
2.
Disconnect each power cord from the power source.
a.
Disconnect each power cord from the server.
b.
Place the server on its side.
3.
Remove the access panel (on page 24).
4.
If installed, remove the PCI air baffle (on page 25).
5.
Remove the system air baffle (on page 26).
6.
Disconnect the 6-pin power cable from the GPU.
7.
Removal and replacement procedures 40
