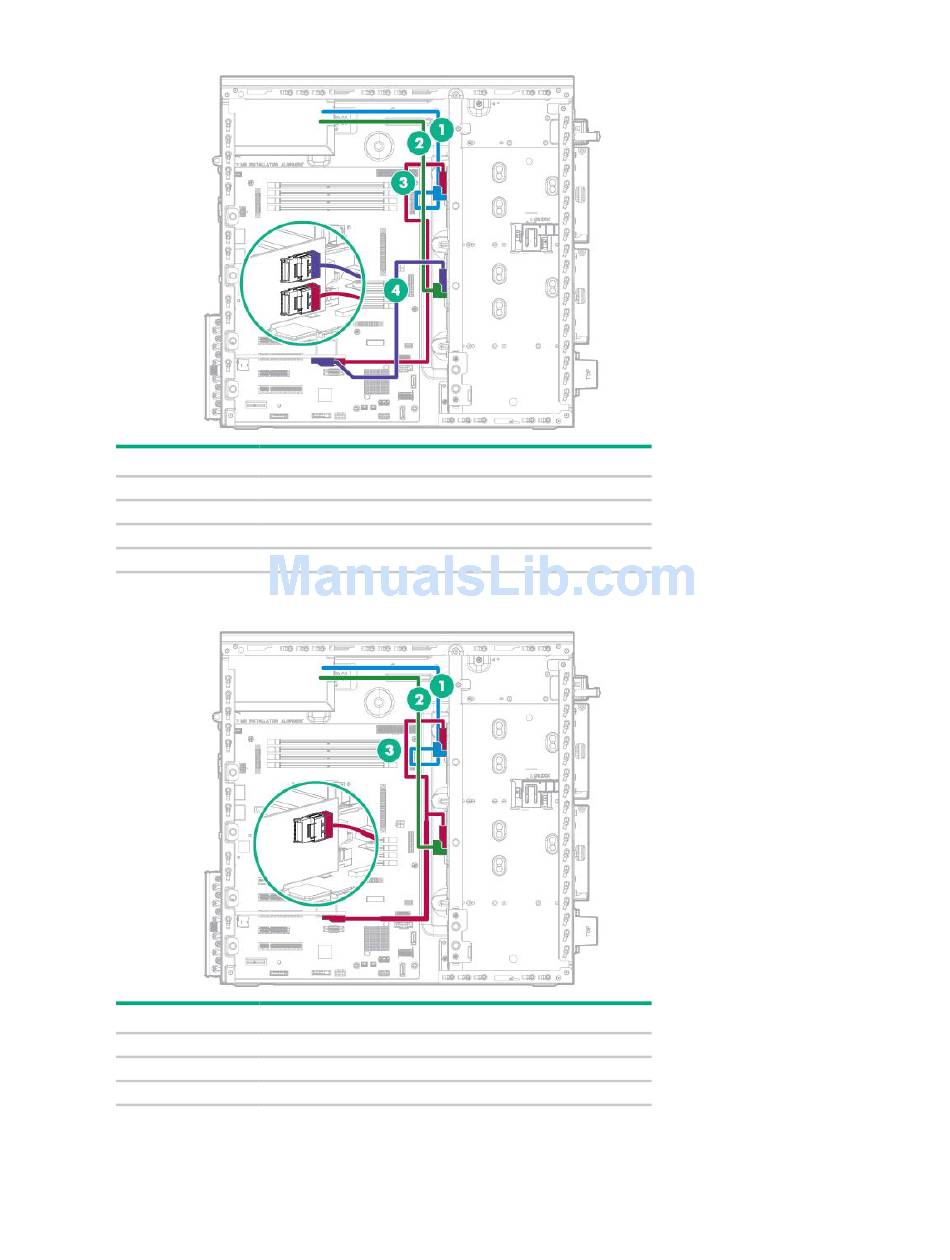

Box 1 and box 2 drive backplanes connected to an H240 adapter
Item
Description
Box 2 drive power cable
1
Box 1 drive power cable
2
Mini-SAS cable to port 2 of the controller
3
Mini-SAS cable to port 1of the controller
4
•
Box 1 and box 2 drive backplanes connected to a P440 controller
Item
Description
Box 2 drive power cable
1
Box 1 drive power cable
2
Mini-SAS Y-cable to the controller
3
Cabling 86
