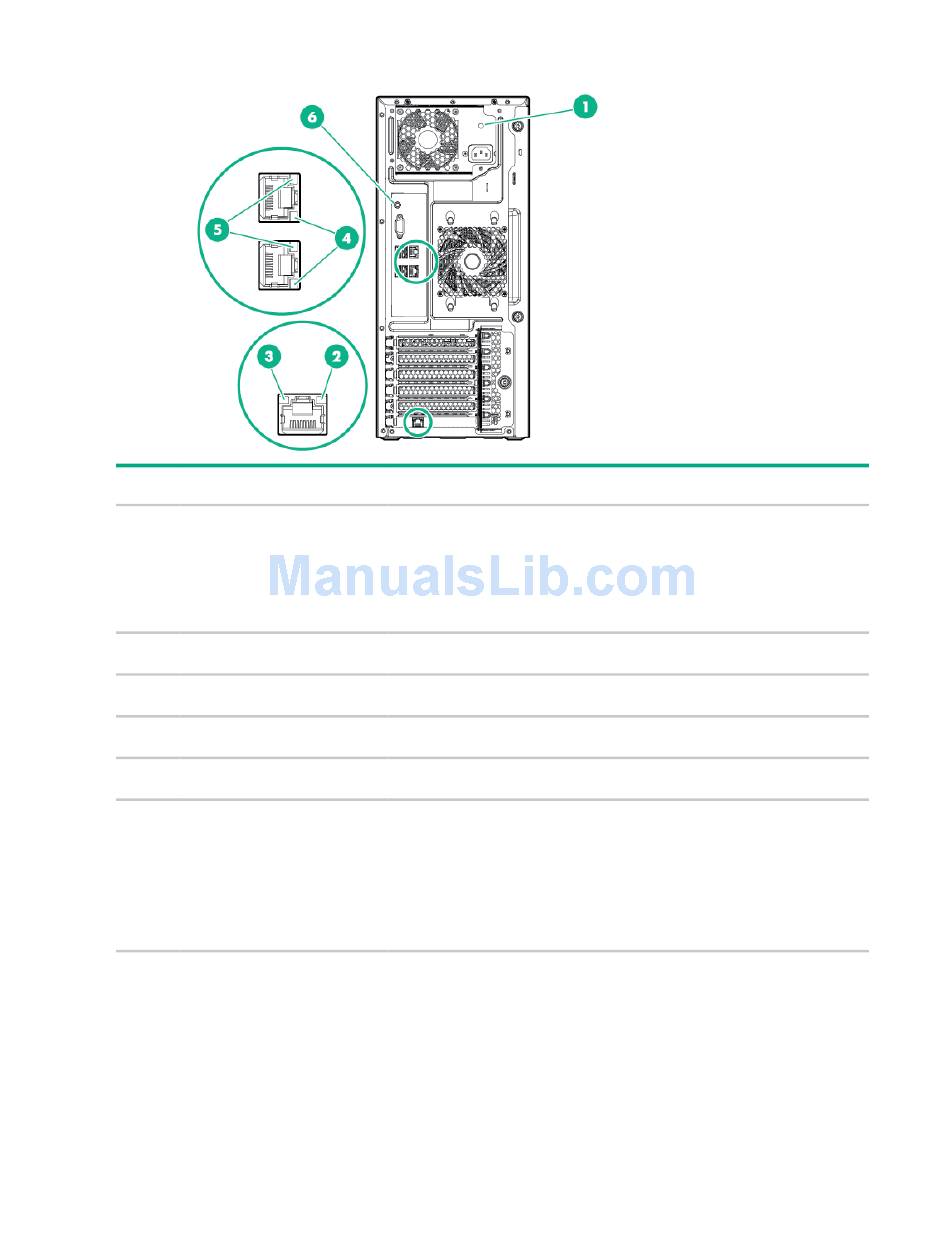

Rear panel LEDs

Item Description
Power supply LED
1
iLO link LED
2
iLO activity LED
3
NIC activity LED
4
NIC link LED
5
UID button/LED
6
Status
Solid green = Normal
Off = One or more of the following conditions exists:
•
Power is unavailable
•
Power supply failed
•
Power supply is in standby mode
•
Power supply error
Green = Linked to network
Off = No network connection
Green or flashing green = Network activity
Off = No network activity
Green or flashing green = Network activity
Off = No network activity
Green = Linked to network
Off = No network connection
Solid blue = Activated
Flashing blue:
•
1 flash per second = Remote management or firmware upgrade
in progress
•
4 flashes per second = iLO manual reboot sequence initiated
•
8 flashes per second = iLO manual reboot sequence in progress
Off = Deactivated
