Array parameters function as follows:
Setup 1
5 x
1
OK
Setup 1
INDEX
2
OK
Setup 1
INDEX
Setup 1
INDEX
OK
4
Setup 1
INDEX

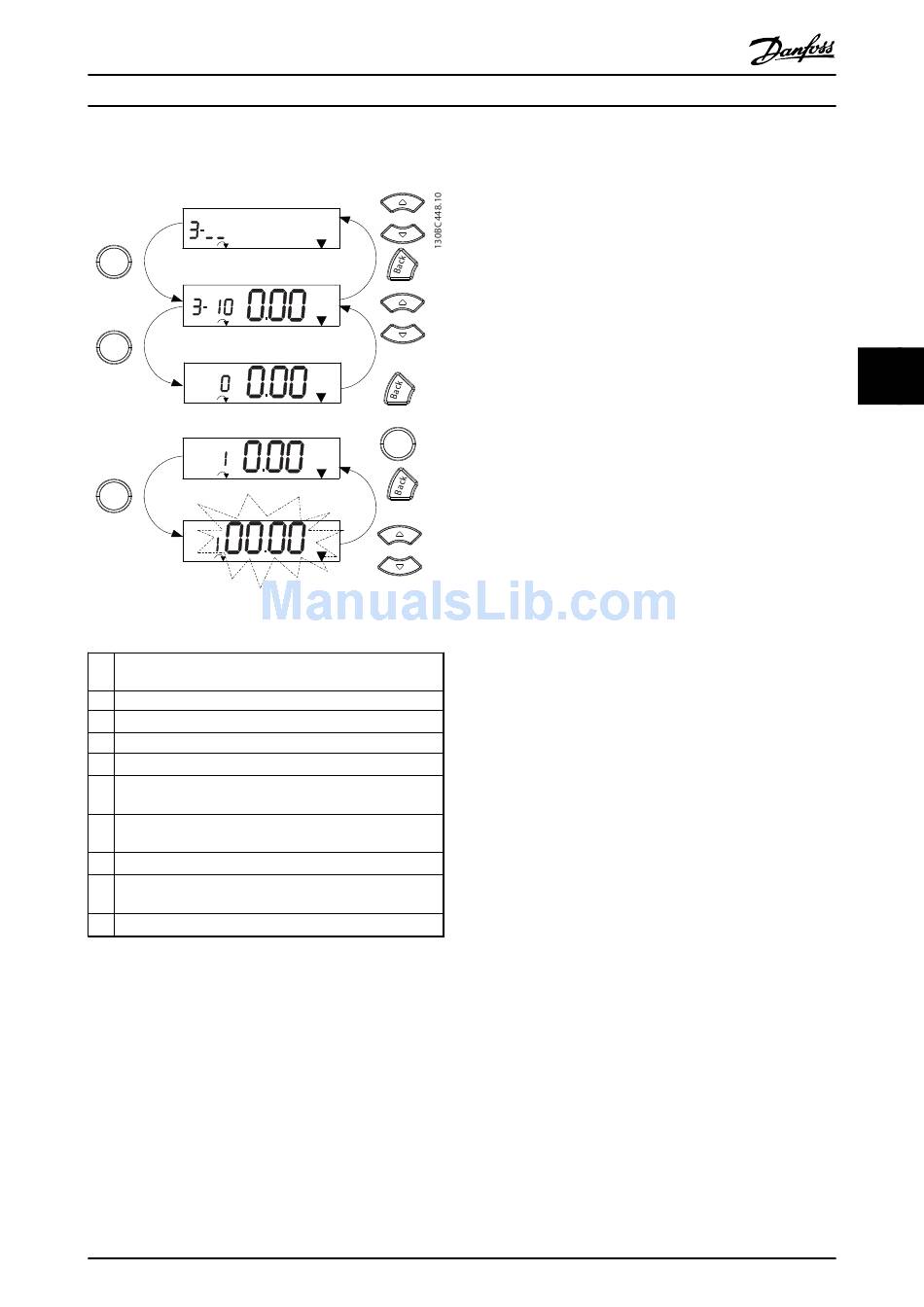

Illustration 4.7 Main Menu Interactions - Array Parameters
1 [OK]: shows parameter numbers and the value in the first
index.
2 [OK]: Index can be selected.
▲ ▼
3
[ ][ ]: Selects index.
4 [OK]: Value can be edited.
▲ ▼
5
[ ][ ]: changes parameter value (flashing).
6 [Back]: cancel changes
[OK]: accept changes
7 [Back]: cancels editing index, a new parameter can be
selected.
▲ ▼
8
[ ][ ]: selects parameter within the group.
9 [Back]: removes parameter index value and shows the
parameter group.
▲ ▼
10
[ ][ ]: selects group.
Table 4.6
®
