Introduction

2.2 Product Overview

A frequency converter is an electronic motor controller
that converts AC mains input into a variable AC waveform
output. The frequency and voltage of the output are
regulated to control the motor speed or torque. The
frequency converter can vary the speed of the motor in
response to system feedback, such as changing
temperature or pressure for controlling fan, compressor, or
pump motors. The frequency converter can also regulate
the motor by responding to remote commands from
external controllers.
In addition, the frequency converter monitors the system
and motor status, issues warnings or alarms for fault
conditions, starts and stops the motor, optimizes energy
efficiency, and offers many more control, monitoring, and
efficiency functions. Operation and monitoring functions
are available as status indications to an outside control
system or serial communication network.

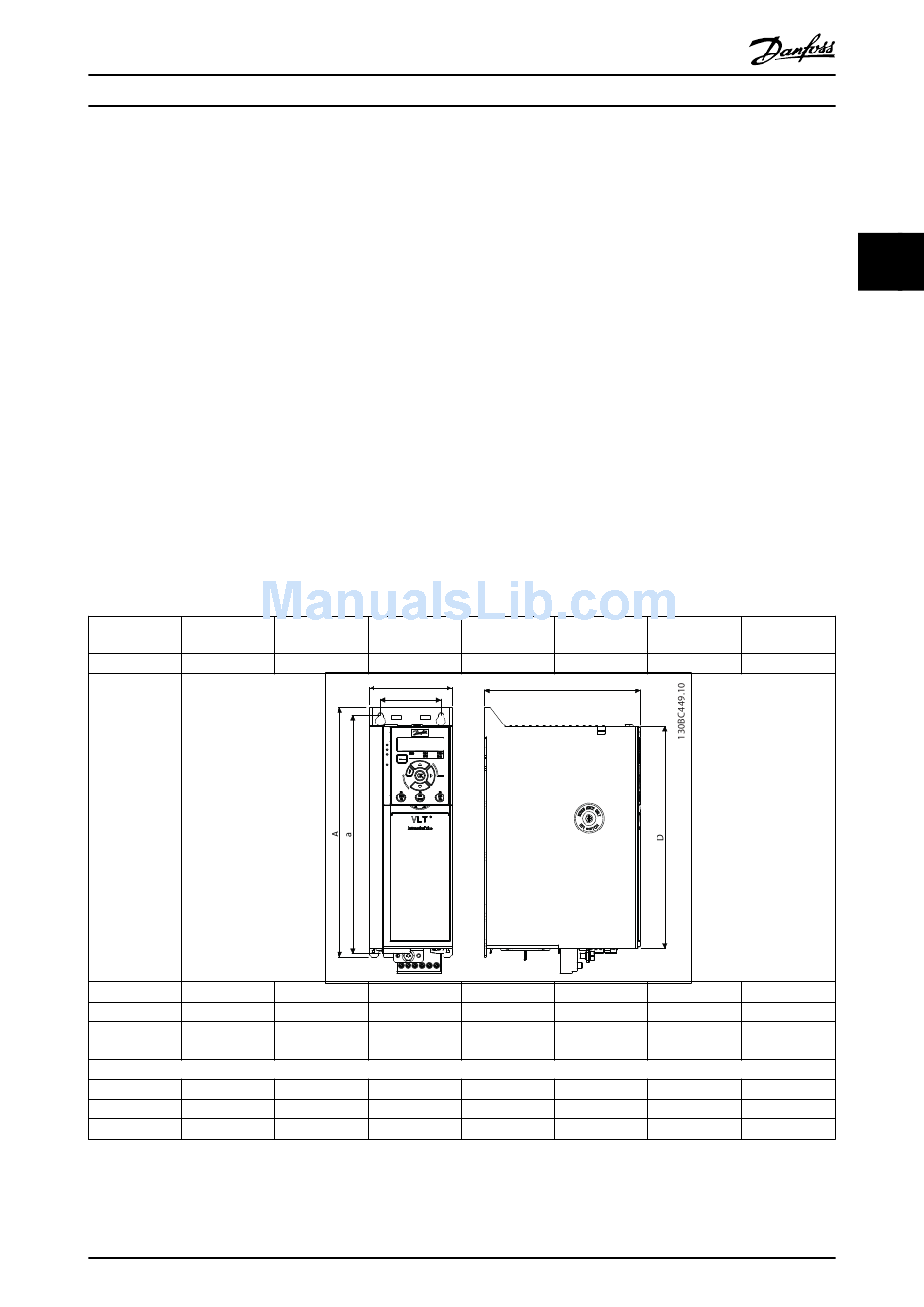

2.4 Frame Sizes and Power Ratings

Frame size J1
380-480 V
Power size [kW] 0.37-2.2
Dimensions
[mm]
Height A 210
Width B 75
Depth C 168 (181)
(with option B)
a 198
b 60
Mounting screw M4
Table 2.2 Frames Sizes, Power Ratings and Dimensions
®
VLT AutomationDrive FC 360 Quick Guide
J2 J3
3.0-5.5 7.5
B
b
272.5 272.5
90 115
168 (181) 168 (181)
Mounting holes
260 260
70 90
M5 M5
®
MG06A102 - VLT is a registered Danfoss trademark

2.3 Additional Resources

Other resources are available to understand advanced
frequency converter functions and programming.
•
The Programming Guide provides greater detail
on working with parameters.
•
The Design Guide is intended to provide detailed
capabilities and functionality to design motor
control systems.
•
Optional equipment is available that may change
some of the procedures described. Be sure to see
the instructions supplied with those options for
specific requirements.
Contact the local Danfoss supplier or go to
http://www.danfoss.com/Products/Literature/VLT+Technical
+Documentation.htm for downloads.
J4 J5
11-15 18.5-22
C
317.5 410
133 150
245 (258) 245 (258)
297.5 390
105 120
M6 M6
J6 J7
30-45 55-75
520 550
233 308
242 332
9
2 2
