3.2.4.2 Control Terminal Types

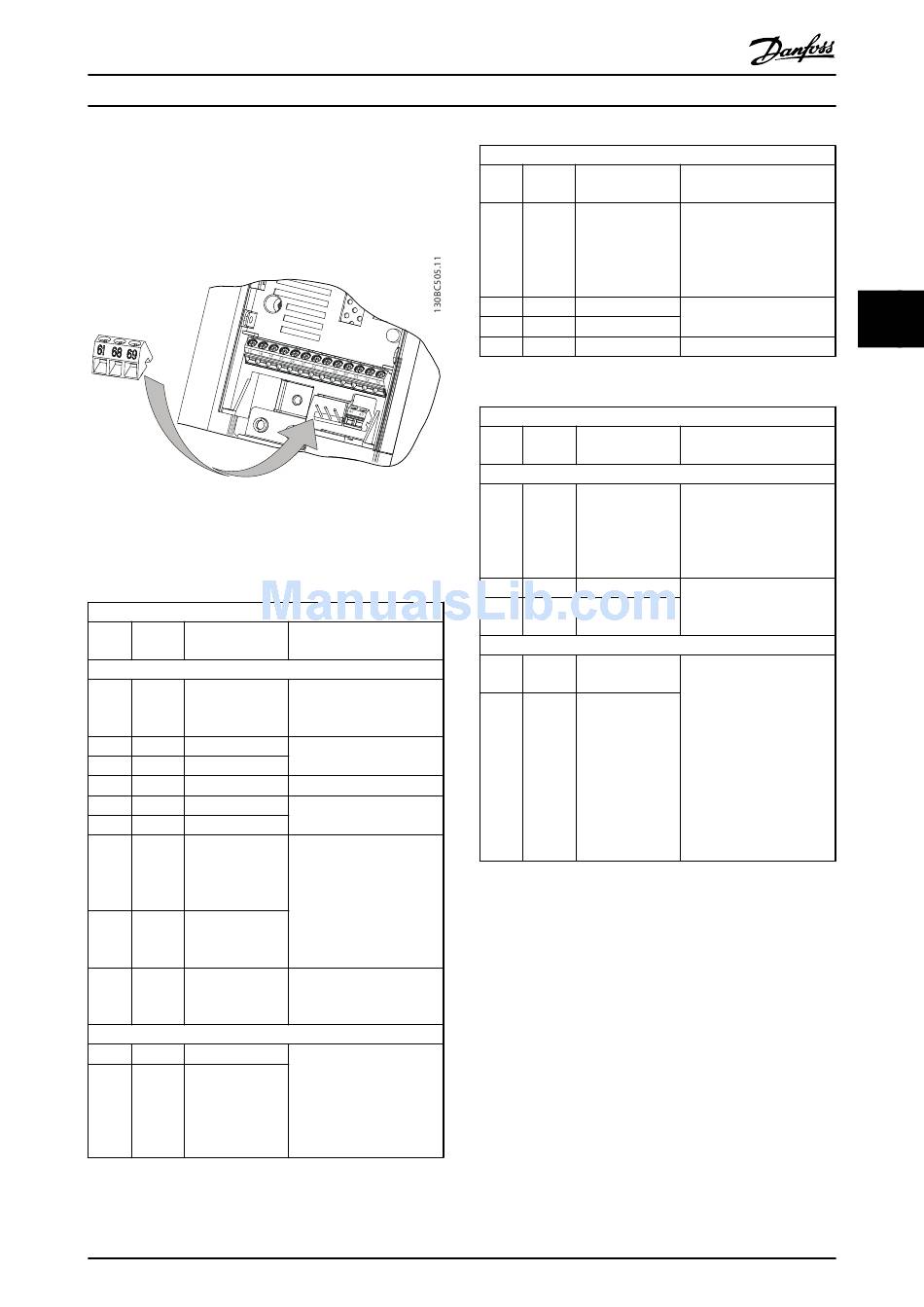

Illustration 3.6 shows the frequency converter control
terminals. Terminal functions and default settings are
summarized in Table 3.4.
Illustration 3.6 Control Terminal Locations
See 8.2 General Technical Data for terminal ratings details.
Terminal description
Termi Parame Default
nal ter setting
Digital I/O, Pulse I/O, Encoder
12 - +24 V DC
18 5-10 [8] Start
19 5-11 [10] Reversing
31 5-16 [0] No operation
32 5-14 [0] No operation
33 5-15 [0] No operation
27 5-12 DI [2] Coast
5-30 inverse
DO [0] No
operation
29 5-13 DI [14] Jog
5-31 DO [0] No
operation
20 -
Analog inputs/outputs
42 6-91 [0] No operation
45 6-71 [0] No operation
®
VLT AutomationDrive FC 360 Quick Guide
Description
24 V DC supply voltage.
Maximum output current is
100mA for all 24 V loads.
Digital inputs.
Digital input, pulse input.
Digital input, 24 V encoder.
Selectable for either digital
input, digital output or
pulse output. Default
setting is digital input.
Common for digital inputs
and 0V potential for 24V
supply.
Programmable analog
output. The analog signal
is 0-20mA or 4-20 mA at a
maximum of 500Ω. Can
also be configured as
digital outputs
®
MG06A102 - VLT is a registered Danfoss trademark
Terminal description
Termi Parame Default
nal ter setting
50 - +10 V DC
53 6-1* Reference
54 6-2* Feedback
55 -
Table 3.3
Terminal description
Termi Parame Default
nal ter setting
Serial communication
61 -
68 (+) 8-3*
69 (-) 8-3*
Relays
01, 02,
03 5-40 [0] [0] No operation
04, 05, 5-40 [1] [0] No operation
06
Table 3.4 Terminal Description
Description
10 V DC analog supply
voltage. 15mA maximum
commonly used for
potentiometer or
thermistor.
Analog input. Selectable
for voltage or current.
Common for analog input
Description
Integrated RC-Filter for
cable screen. ONLY for
connecting the screen
when experiencing EMC
problems.
RS-485 Interface. A control
card switch is provided for
termination resistance.
Form C relay output. These
relays are in various
locations depending upon
the frequency converter
configuration and size.
Usable for AC or DC
voltage and resistive or
inductive loads.
RO2 in J1-J3 enclosure is 2-
pole, only 04,05 terminal
available
