ColorSource Linear v1.5

Installation

Mounting
The ColorSource Linear ships with a pair of floor trunnions for mounting.
Note: Ensure that the trunnions are installed with the feet
You also have the option of using C-clamps with the trunnions to hang the
fixture. Attach the C-clamps to the holes in the trunnion feet (see figure
below).
The ColorSource Linear 1 has two additional mounting options. Contact your
local dealer for more information.
• Yoke with C-clamp (7414K1017)
• Double yoke with C-clamp for mounting two fixtures (7414K1018)

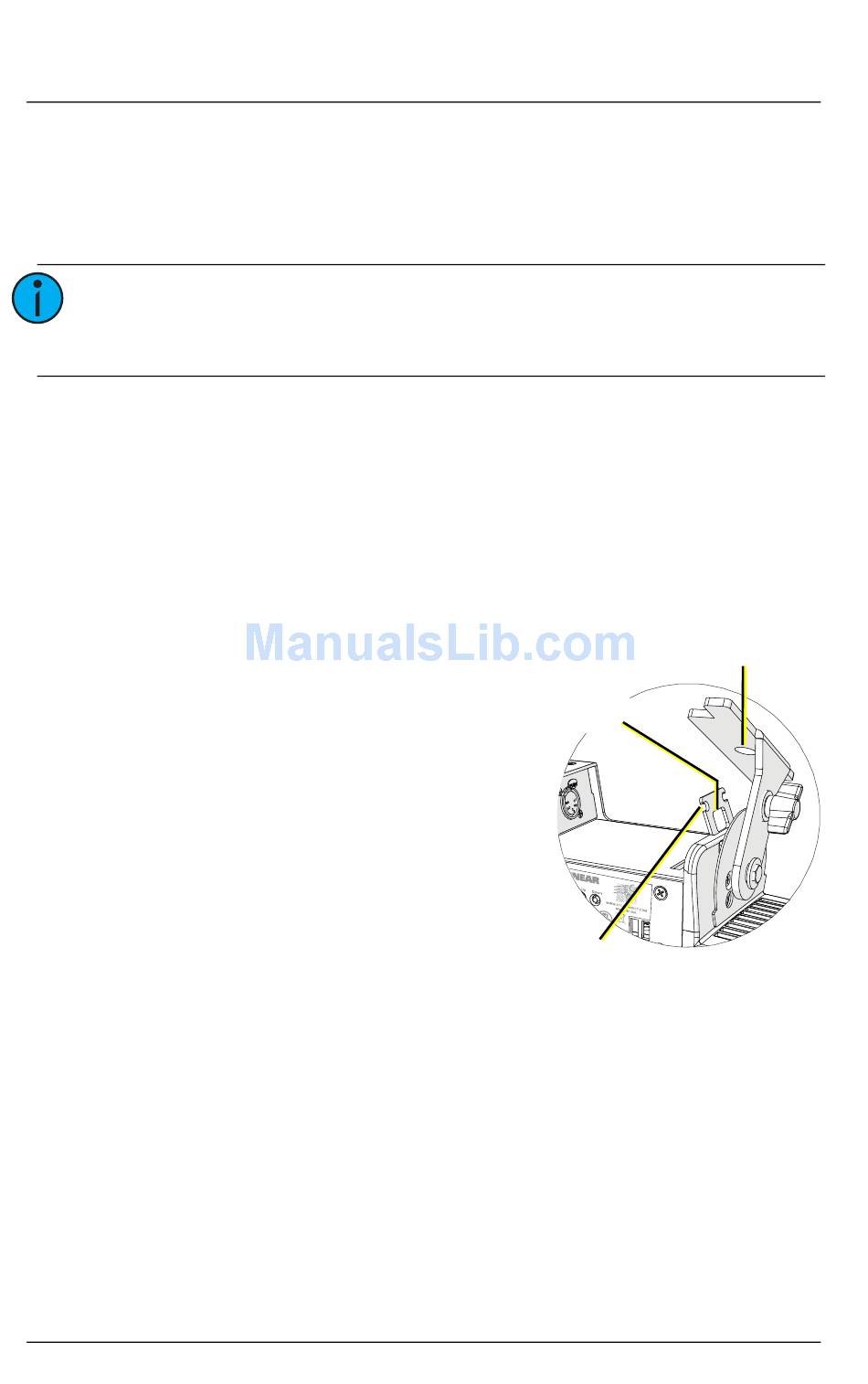

Safety cable

The safety cable (or other approved
safety device) must be attached to the
fixture. Two safety cable anchor
points are provided on the fixture
housing.
The anchor points also include two
cutouts that can be used for cable
strain relief.
Connectors
• Power: Two powerCON
connectors for power in and
thru
• Data (DMX512/RDM): Two
five-pin XLR connectors
Conversion cables are available from ETC. Please contact your ETC customer
service representative and request part number W6538 for RJ45 to female
XLR or part number W6539 for RJ45 to male XLR.
Connector locations
• Linear 1: Power connectors on one side of the fixture and data
connectors on the other
• Linear 2 and Linear 4: Power and data connectors on each end (to
facilitate daisy-chaining)
ColorSource Linear v1.5
inward so that fixtures can be lined up end-to-end, if
needed.
®
OR
Page 4 of 16
Safety cable
anchor point
Cutout for
cable strain relief
two RJ45 connectors for data in and thru
C-clamp
attachment
point
