Installing secondary lenses

You can use several
optional accessories with
the ColorSource Linear,
including secondary
lenses (horizontal,
vertical, and round). You
can use either a single
lens or two lenses
simultaneously, and you
can install them from
either end of the fixture.
For the Linear 2 and
Linear 4 fixtures, order
one accessory for each
0.5 meter segment (cell)
of the fixture.
Spacers for secondary lenses are included with the fixture.
Use these spacers to hold the accessories in position when
multiple lenses are used in the Linear 2 and Linear 4
fixtures.
1:
2:
Spacer
Secondary
Lens
ColorSource Linear v1.5

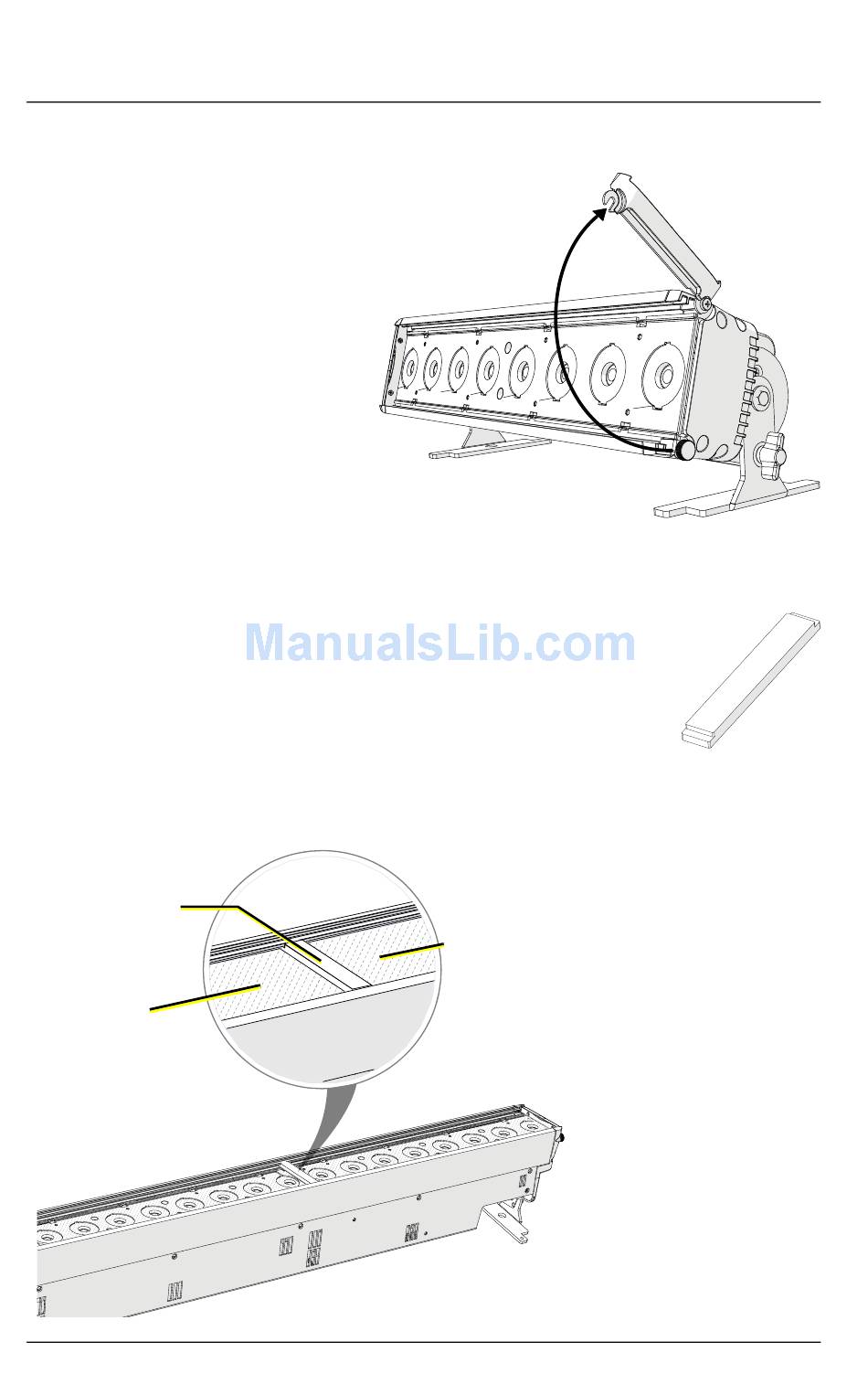

Loosen the thumbscrew on the access panel on
either end of the fixture.
Pivot the access panel until you can access the slots
above the LEDs.
2: Pivot
(ColorSource Linear 1 shown)
Secondary
Lens
Page 14 of 16
1: Loosen
Spacer
3: Slide the secondary
lens (or lenses) into
either of the slots
above the LEDs.
For the Linear 2 and
Linear 4 fixtures,
position spacers
between the lenses
for the cells (in the
same slot as the
lenses). See image at
left.
4: Pivot the access panel
back into place and
tighten the
thumbscrew.
