Adjusting The Tilt; User Interface - ETC ColorSource Linear Installation Manual

ETC Installation Guide
ColorSource Linear v1.5
Grouping button
and LED indicators
Mode button
Powering up
1:
2:

Adjusting the tilt

The fixture can be tilted up and down as needed.
1:
2:
3:

User interface

The user interface allows you to set the start
address of the fixture, access the stand-alone
presets and sequences, set the DMX control
mode, and set the Grouping mode (Linear 2 and
Linear 4 fixtures only).
• The DMX address will blink when no DMX
is present and a preset or sequence is not
active. The inactivity time-out is disabled
while in a data loss state.
• After 5 seconds of inactivity when DMX is
present, the display goes dark.
ColorSource Linear v1.5
Linear 2 and Linear 4
Press the Mode button once to wake the display. The display shows
the DMX address.
Press the Mode button a second time to access the Presets/Sequences
menu.
Loosen, but do not remove the two trunnion locking knobs.
Tilt the fixture to the desired angle.
Tighten the trunnion locking knobs.
Page 6 of 16

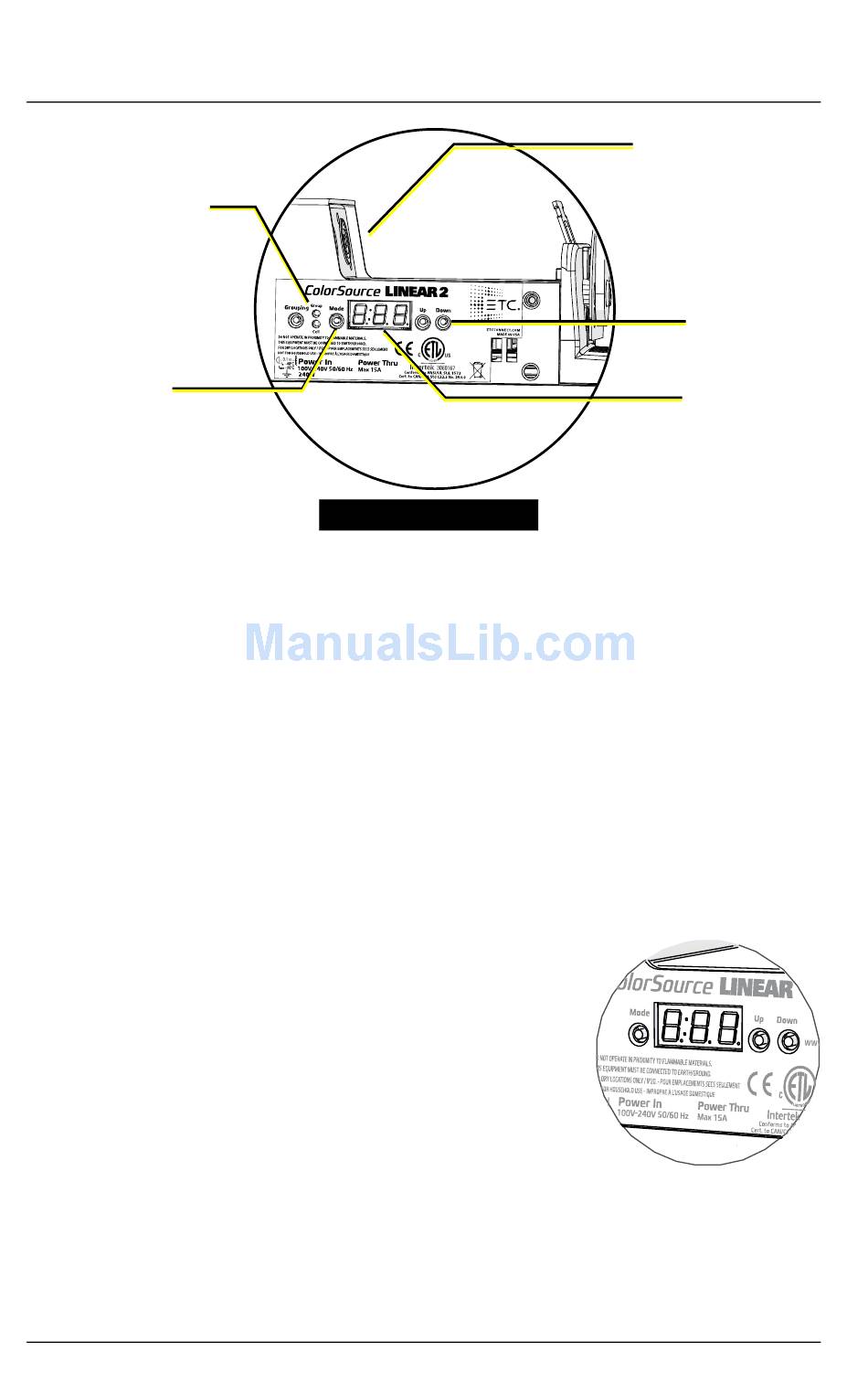

Power and data
connectors are
paired on each
side to facilitate
daisy-chaining
Up and Down
buttons
User interface
(display)
Linear 1
shown
ETC
