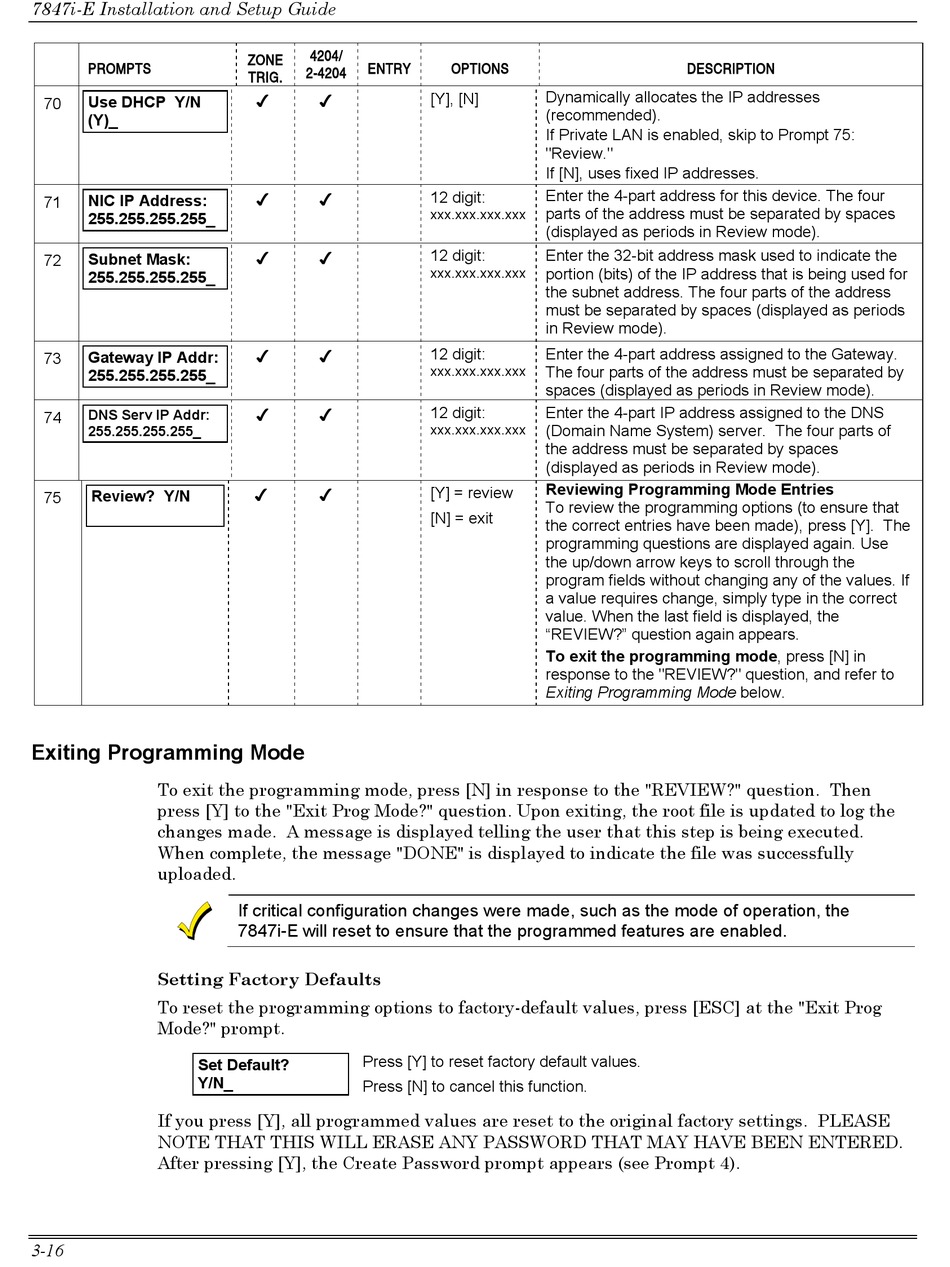

7847i-E Installation and Setup Guide
PROMPTS
Use DHCP Y/N
70
(Y)_
NIC IP Address:
71
255.255.255.255_
Subnet Mask:
72
255.255.255.255_
Gateway IP Addr:
73
255.255.255.255_
DNS Serv IP Addr:
74
255.255.255.255_
Review? Y/N
75
Exiting Programming Mode
To exit the programming mode, press [N] in response to the "REVIEW?" question. Then
press [Y] to the "Exit Prog Mode?" question. Upon exiting, the root file is updated to log the
changes made. A message is displayed telling the user that this step is being executed.
When complete, the message "DONE" is displayed to indicate the file was successfully
uploaded.
Setting Factory Defaults
To reset the programming options to factory-default values, press [ESC] at the "Exit Prog
Mode?" prompt.
Set Default?
Y/N_
If you press [Y], all programmed values are reset to the original factory settings. PLEASE
NOTE THAT THIS WILL ERASE ANY PASSWORD THAT MAY HAVE BEEN ENTERED.
After pressing [Y], the Create Password prompt appears (see Prompt 4).
3-16
4204/
ZONE
ENTRY
2-4204
TRIG.
If critical configuration changes were made, such as the mode of operation, the
7847i-E will reset to ensure that the programmed features are enabled.
Press [Y] to reset factory default values.
Press [N] to cancel this function.
OPTIONS
Dynamically allocates the IP addresses
[Y], [N]
(recommended).
If Private LAN is enabled, skip to Prompt 75:
"Review."
If [N], uses fixed IP addresses.
Enter the 4-part address for this device. The four
12 digit:
parts of the address must be separated by spaces
xxx.xxx.xxx.xxx
(displayed as periods in Review mode).
12 digit:
Enter the 32-bit address mask used to indicate the
xxx.xxx.xxx.xxx
portion (bits) of the IP address that is being used for
the subnet address. The four parts of the address
must be separated by spaces (displayed as periods
in Review mode).
12 digit:
Enter the 4-part address assigned to the Gateway.
xxx.xxx.xxx.xxx
The four parts of the address must be separated by
spaces (displayed as periods in Review mode).
12 digit:
Enter the 4-part IP address assigned to the DNS
xxx.xxx.xxx.xxx
(Domain Name System) server. The four parts of
the address must be separated by spaces
(displayed as periods in Review mode).
Reviewing Programming Mode Entries
[Y] = review
To review the programming options (to ensure that
[N] = exit
the correct entries have been made), press [Y]. The
programming questions are displayed again. Use
the up/down arrow keys to scroll through the
program fields without changing any of the values. If
a value requires change, simply type in the correct
value. When the last field is displayed, the
"REVIEW?" question again appears.
To exit the programming mode, press [N] in
response to the "REVIEW?" question, and refer to
Exiting Programming Mode below.
