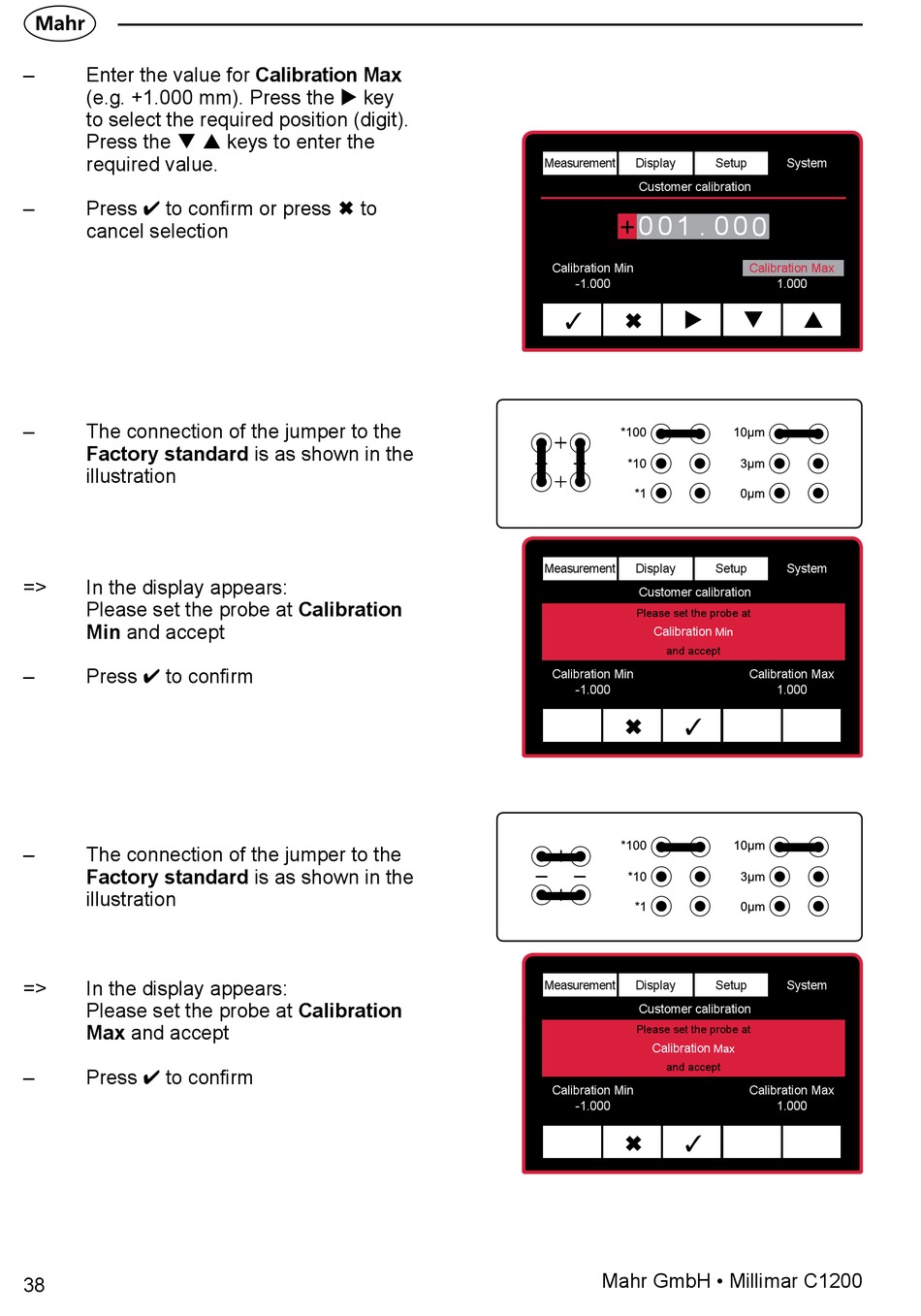

– Enter the value for Calibration Max
(e.g. +1.000 mm). Press the u key
to select the required position (digit).
Press the q p keys to enter the
required value.
– Press 4 to confirm or press Ó to
cancel selection
– The connection of the jumper to the
Factory standard is as shown in the
illustration
=> In the display appears:
Please set the probe at Calibration
Min and accept
– Press 4 to confirm
– The connection of the jumper to the
Factory standard is as shown in the
illustration
=> In the display appears:
Please set the probe at Calibration
Max and accept
– Press 4 to confirm
