6.

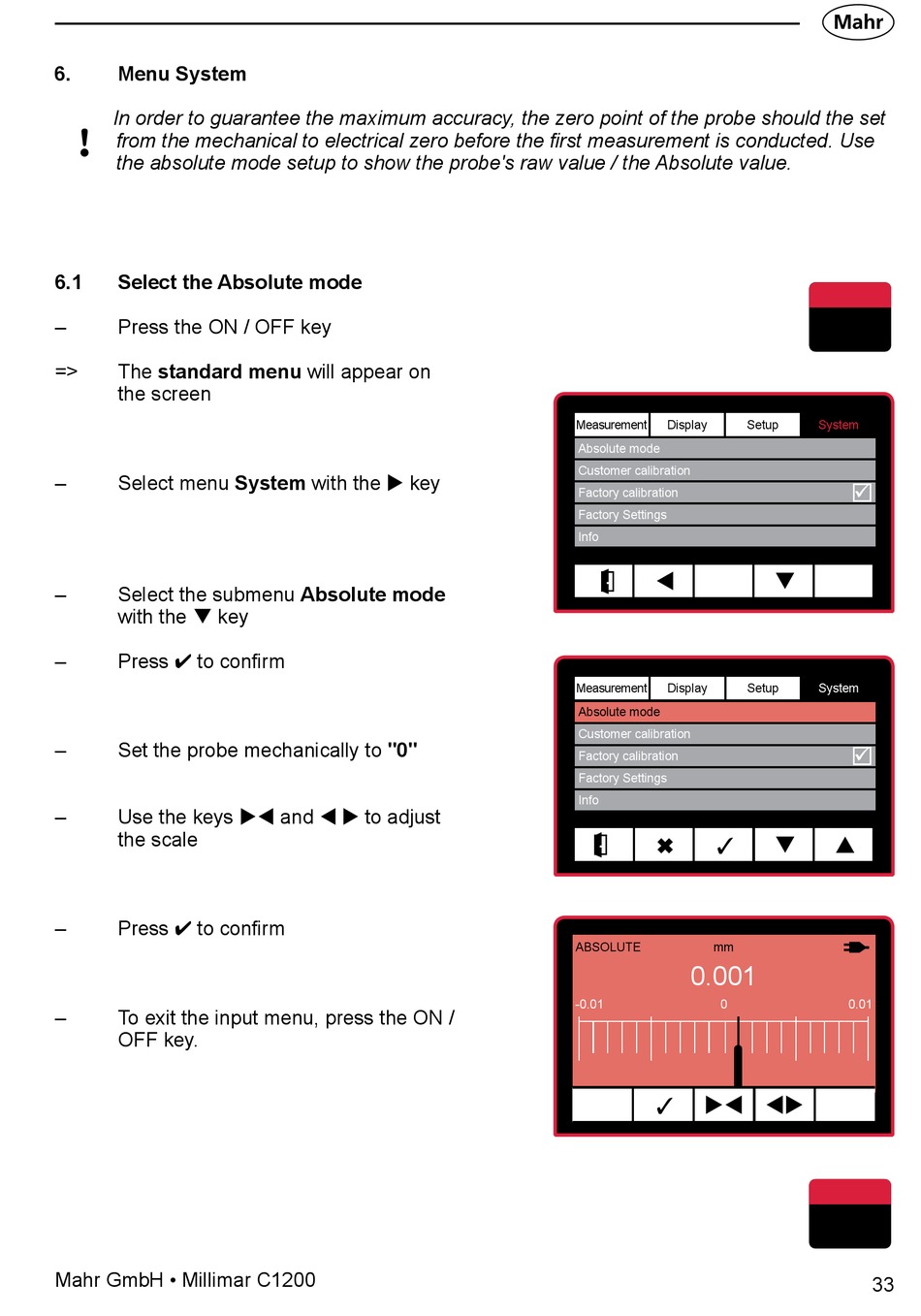

Menu System

In order to guarantee the maximum accuracy, the zero point of the probe should the set
!
from the mechanical to electrical zero before the first measurement is conducted. Use
the absolute mode setup to show the probe's raw value / the Absolute value.
6.1

Select the Absolute mode

– Press the ON / OFF key
=> The standard menu will appear on
the screen
– Select menu System with the u key
– Select the submenu Absolute mode
with the q key
– Press 4 to confirm
Set the probe mechanically to "0"
–
– Use the keys ut and t u to adjust
the scale
– Press 4 to confirm
– To exit the input menu, press the ON /
OFF key.
Mahr GmbH • Millimar C1200
Measurement Display Setup
Absolute mode
Customer calibration
Factory calibration
Factory Settings
Info
t
Measurement Display Setup
Absolute mode
Customer calibration
Factory calibration
Factory Settings
Info
6 3
ABSOLUTE mm
0.001
-0.01 0
ut tu
3
System
ü
q
System
ü
q p
0.01
33
