In order to conduct a reliable and accurate probe calibration, the calibration zero
point which is later required must firstly be positioned via the probe's raw value to the
electrical zero point (see section 2.7, page 15). This is because the inductive probe
measures at the electrical zero point most accurately. The calibration of the probe in
our example is as follows: for the MAX value, a 2.000 mm gage block is used, the MIN
value is obtained on a measuring plate; however, a 1.000 mm gage block would be the
ideal electrical zero.

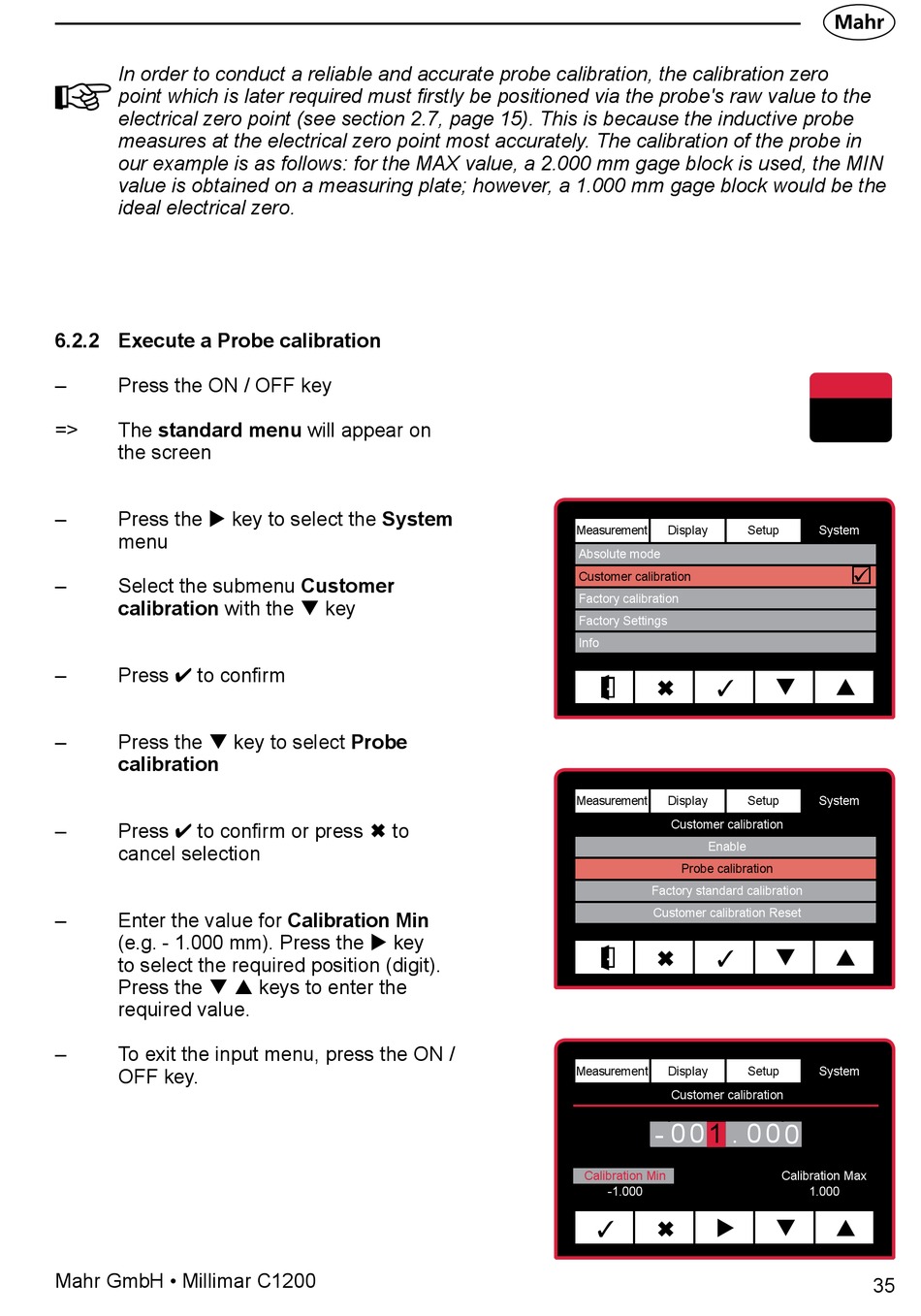

6.2.2 Execute a Probe calibration

– Press the ON / OFF key
=> The standard menu will appear on
the screen
Press the u key to select the System
–
menu
– Select the submenu Customer
calibration with the q key
– Press 4 to confirm
Press the q key to select Probe
–
calibration
– Press 4 to confirm or press Ó to
cancel selection
– Enter the value for Calibration Min
(e.g. - 1.000 mm). Press the u key
to select the required position (digit).
Press the q p keys to enter the
required value.
– To exit the input menu, press the ON /
OFF key.
Mahr GmbH • Millimar C1200
Measurement Display Setup
Absolute mode
Customer calibration
Factory calibration
Factory Settings
Info
6 3
Measurement Display Setup
Customer calibration
Enable
Probe calibration
Factory standard calibration
Customer calibration Reset
6 3
Measurement Display Setup
Customer calibration
- 0 0 1 . 0 0 0
Calibration Min Nominal value
-1.000 +0
u
3 6
System
ü
q p
System
q p
System
Calibration Max
1.000
q p
