Ruijie Networks RG-S8605E Hardware Installation And Reference Manual page 34

LED
Hot Swapping
Power Consumption
EMC Standards
Safety Standards
Operating
Temperature
Storage
Temperature
Operating Humidity
MTBF
Weight
Dimensions
(W x D x H)
M8600E-08XS-EF
Module Appearance

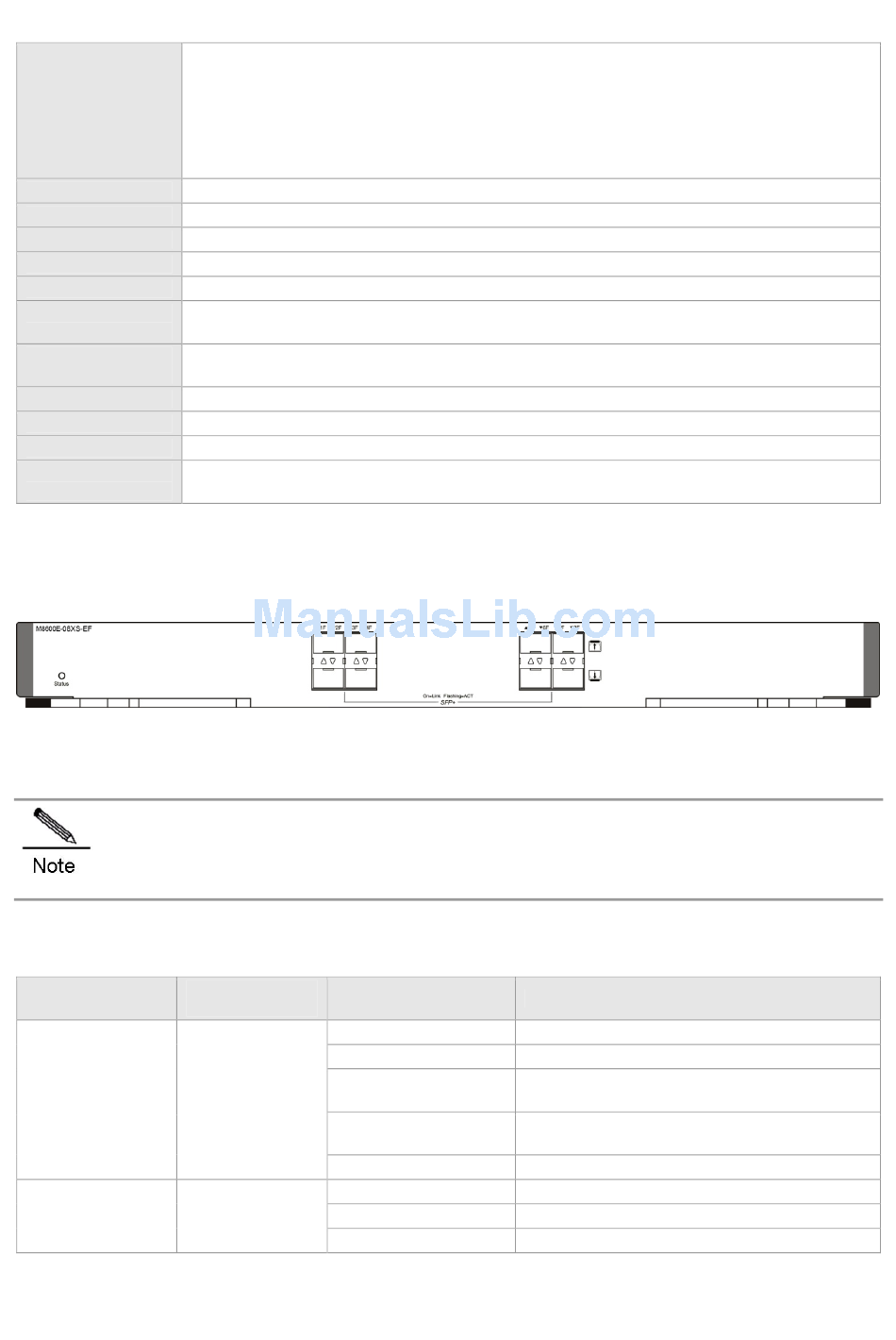

Figure 0-24 Appearance of the M8600E-08XS-EF Module
External Port
It provides eight SFP+ ports. The SFP+ ports support 10G SFP+ modules and Gigabit SFP modules, Hot swapping of the
M8600E-08XS-EF, SFP and SFP+ modules is supported.
The M8600E-08XS-EF supports 10G SFP+ modules and Gigabit SFP modules. 10G SFP+ modules cannot
be used as Gigabit SFP modules.
LED
LED
System LED
SFP+ port LED
Specifications
10GBASE-SR (850nm)
10GBASE-LR (1310nm)
10GBASE-ER (1550nm)
10GBASE-ZR (1550nm)
XG-SFP-CU1M
XG-SFP-CU3M
XG-SFP-CU5M
Status, Link/ACT
Supported
<85W
GB9254-2008 CLASS A
GB4943-2011
0 to 50°C
-40 to 70°C
10%-90% RH (non-condensing)
433,000 hours
Net weight: 3.42 kg
399 mm x 440 mm x 40.18 mm
Identification on
Status
the panel
Off
Solid red
Solid yellow
Status
Blinking green
Solid green
Off
Link/ACT
Solid green
Blinking
Multi-mode optical fiber
Single-mode optical fiber
Single-mode optical fiber
Single-mode optical fiber
1m SFP+ copper cables (DAC)
3m SFP+ copper cables (DAC)
5m SFP+ copper cables (DAC)
Meaning
The module is NOT receiving power.
The module is faulty.
High temperature alarm. The system keeps
operating but the performance is affected.
Initialization is in progress. Continuous blinking
indicates errors.
The module is operational
The port link is NOT connected.
The port is connected.
The port is transmitting and receiving data.
