Precaution
 Pull the tap out before unplugging the cables. Otherwise, the module or the slot can be damaged.
 Immediately install the dust plug to the module port and the switch fiber port.

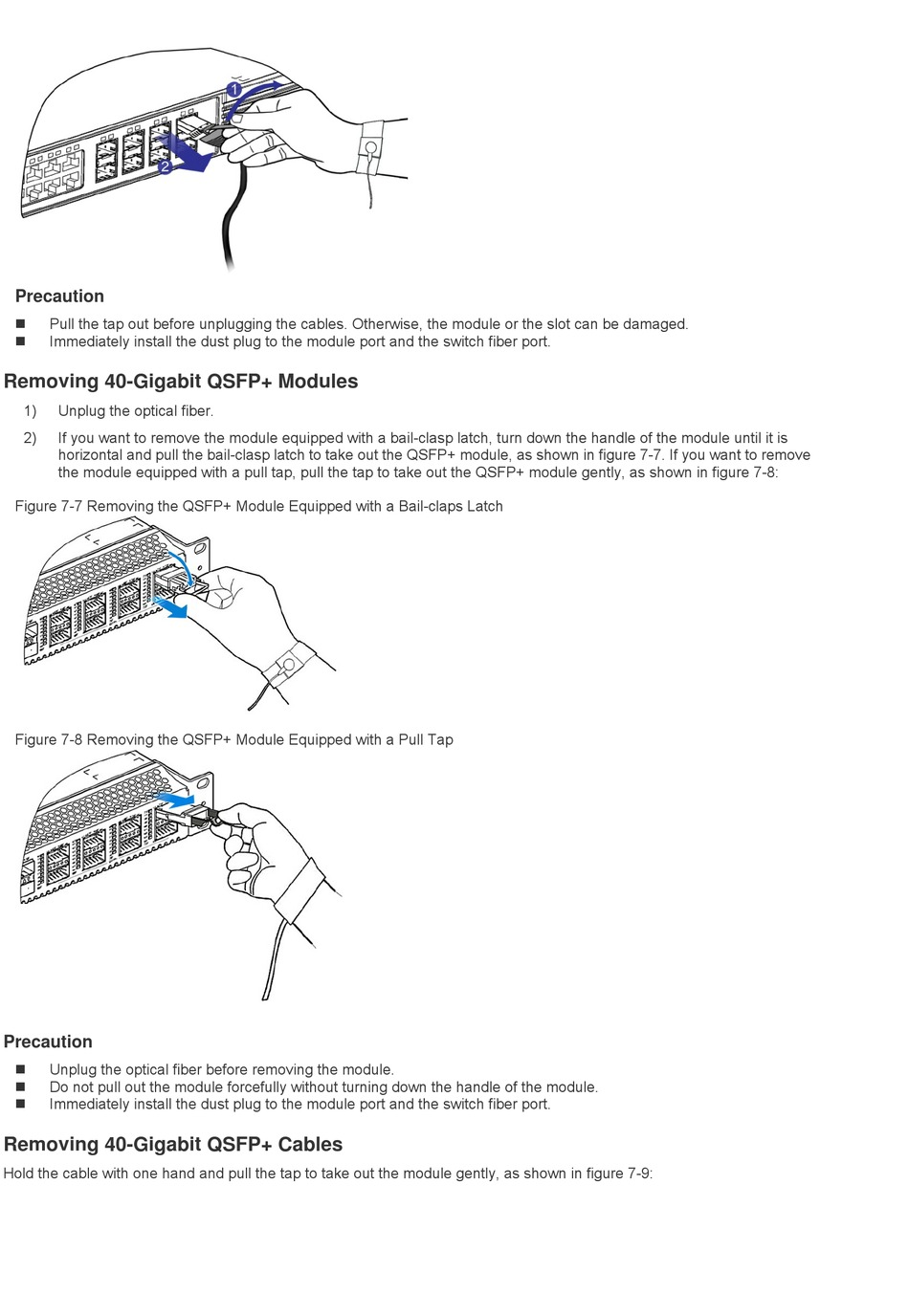

Removing 40-Gigabit QSFP+ Modules

1) Unplug the optical fiber.
2) If you want to remove the module equipped with a bail-clasp latch, turn down the handle of the module until it is
horizontal and pull the bail-clasp latch to take out the QSFP+ module, as shown in figure 7-7. If you want to remove
the module equipped with a pull tap, pull the tap to take out the QSFP+ module gently, as shown in figure 7-8:
Figure 7-7 Removing the QSFP+ Module Equipped with a Bail-claps Latch
Figure 7-8 Removing the QSFP+ Module Equipped with a Pull Tap
Precaution
 Unplug the optical fiber before removing the module.
 Do not pull out the module forcefully without turning down the handle of the module.
 Immediately install the dust plug to the module port and the switch fiber port.

Removing 40-Gigabit QSFP+ Cables

Hold the cable with one hand and pull the tap to take out the module gently, as shown in figure 7-9:
