14-14 1972 PONTIAC SERVICE MANUAL

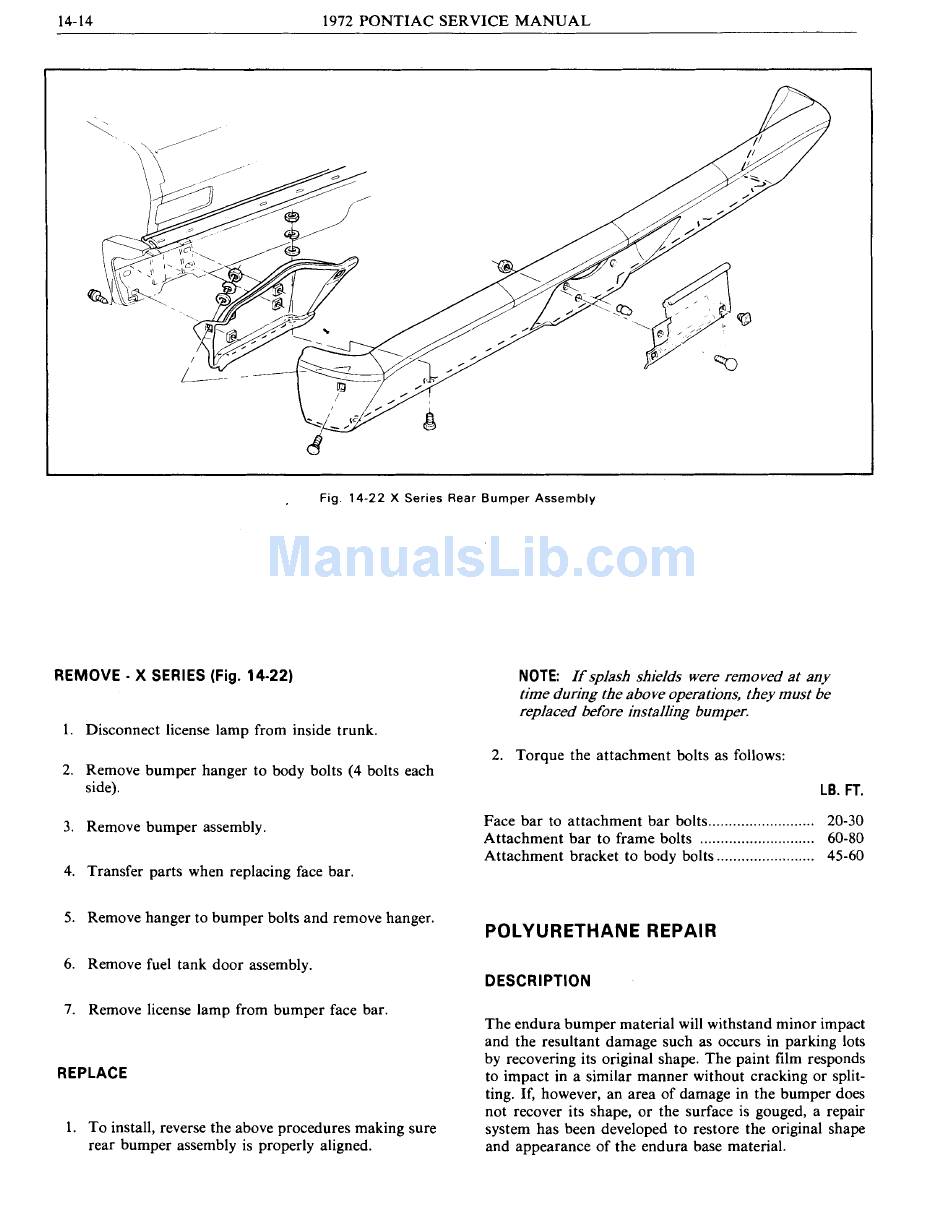

Fig. 14-22 X Series Rear Bumper Assembly
REMOVE
-
X SERIES (Fig. 14-22)
NOTE: I f splash shields were removed at any
time during the above operations, they must be
replaced before installing bumper.
1. Disconnect license lamp from inside trunk.
2. Torque the attachment bolts as follows:
2. Remove bumper hanger to body bolts (4 bolts each
side).
3. Remove bumper assembly.
4. Transfer parts when replacing face bar
5. Remove hanger to bumper bolts and remove hanger.
6. Remove fuel tank door assembly.
7. Remove license lamp from bumper face bar.
REPLACE
1. To install, reverse the above procedures making sure
rear bumper assembly is properly aligned.
LB. FT.
Face bar to attachment bar bolts
..........................
20-30
Attachment bar to frame bolts
............................
60-80
Attachment bracket to body bolts
........................
45-60
POLYURETHANE REPAIR
DESCRIPTION
The endura bumper material will withstand minor impact
and the resultant damage such as occurs in parking lots
by recovering its original shape. The paint film responds
to impact in a similar manner without cracking or split-
ting. If, however, an area of damage in the bumper does
not recover its shape, or the surface is gouged, a repair
system has been developed to restore the original shape
and appearance of the endura base material.
