11-10 1972 PONTIAC SERVICE MANUAL
such as battery tray, cruise control, hoses, electrical
harnesses, etc.
2. Lift front end on frame allowing front suspension to
hang free.
3. Install safety stand under frame.
4.
Remove wheel assembly.
5. Remove front fender wheel opening molding (if so
equipped).
6. Remove inner fender skirt retaining screws.
7. Remove lower fender attaching bolts and rocker
panel molding.
8. Pry out and block fender away from frame.
CAUTION: Exercise care in pulling fender
a way from frame to a void bending fender.
9. Disengage inner fender skirt lip from outer fender
panel by pulling out and down on inner edge of skirt.
10. Remove inner fender skirt by rotating rearward.
REPLACE
1. To replace, reverse above procedure checking fender
alignment with other sheet metal and body parts.
2. Torque all fender inner skirt to fender attaching
screws 15-22 lb. ft.
HEADLAMP FILLER PANEL OR FENDER
EXTENSION
The headlamp filler panels and fender extensions on all
series (except A Series) are constructed of fiberglass. The
G and B Series panels consist of three separate units, two
fender extensions and a headlamp filler panel. The GT and
GTO models have a headlamp filler panel on either side
of the endura bumper.
NOTE: Minor cracks and pits can be repaired
per the procedure listed below.
REMOVE
-
G
SERIES (Fig. 1 1-1 4)
1. Remove parking lamp lens.
- - - - - - - - -

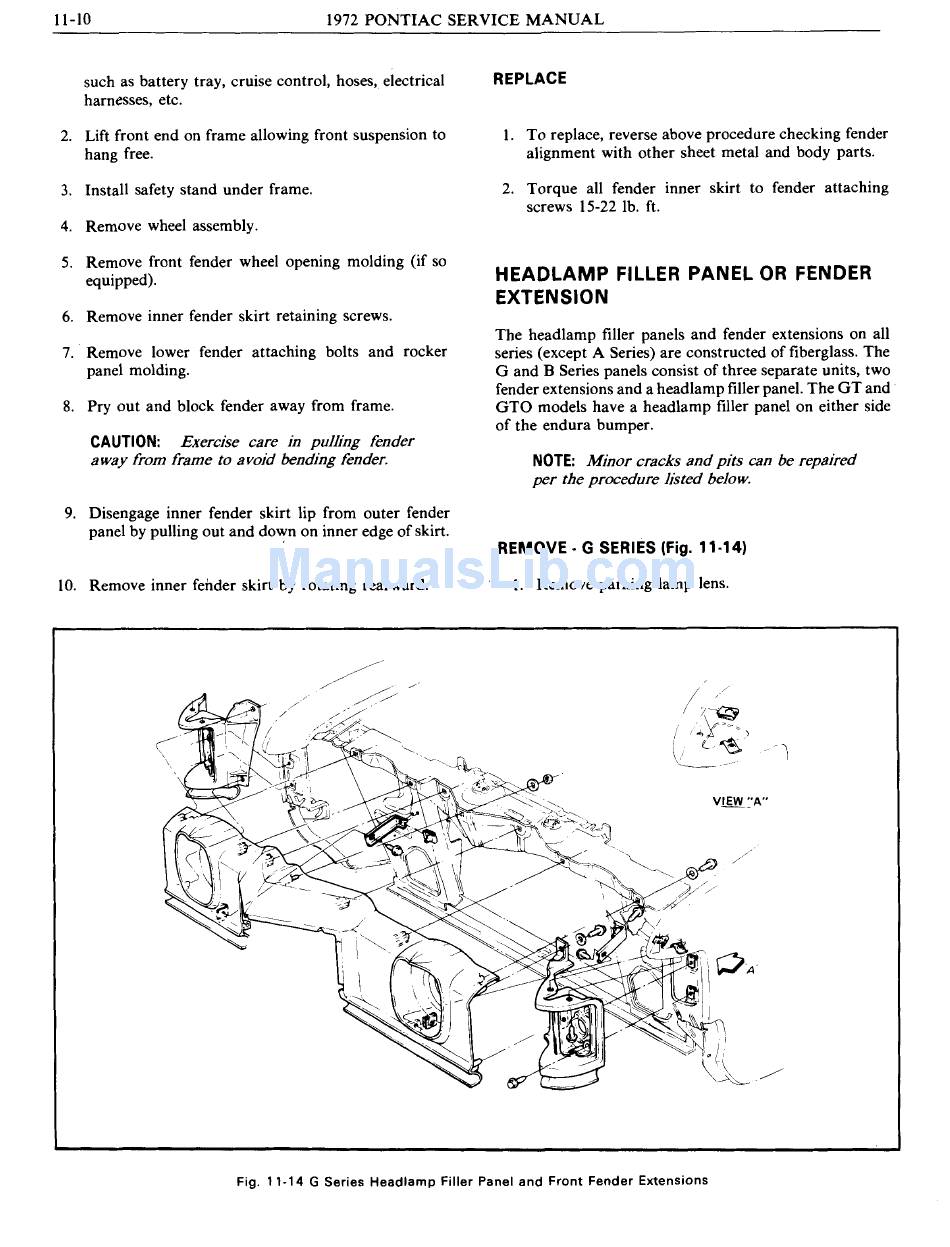

Fig. 11-14 G Series Headlarnp Filler Panel and Front Fender Extensions
