2.5l engine

Advertisement

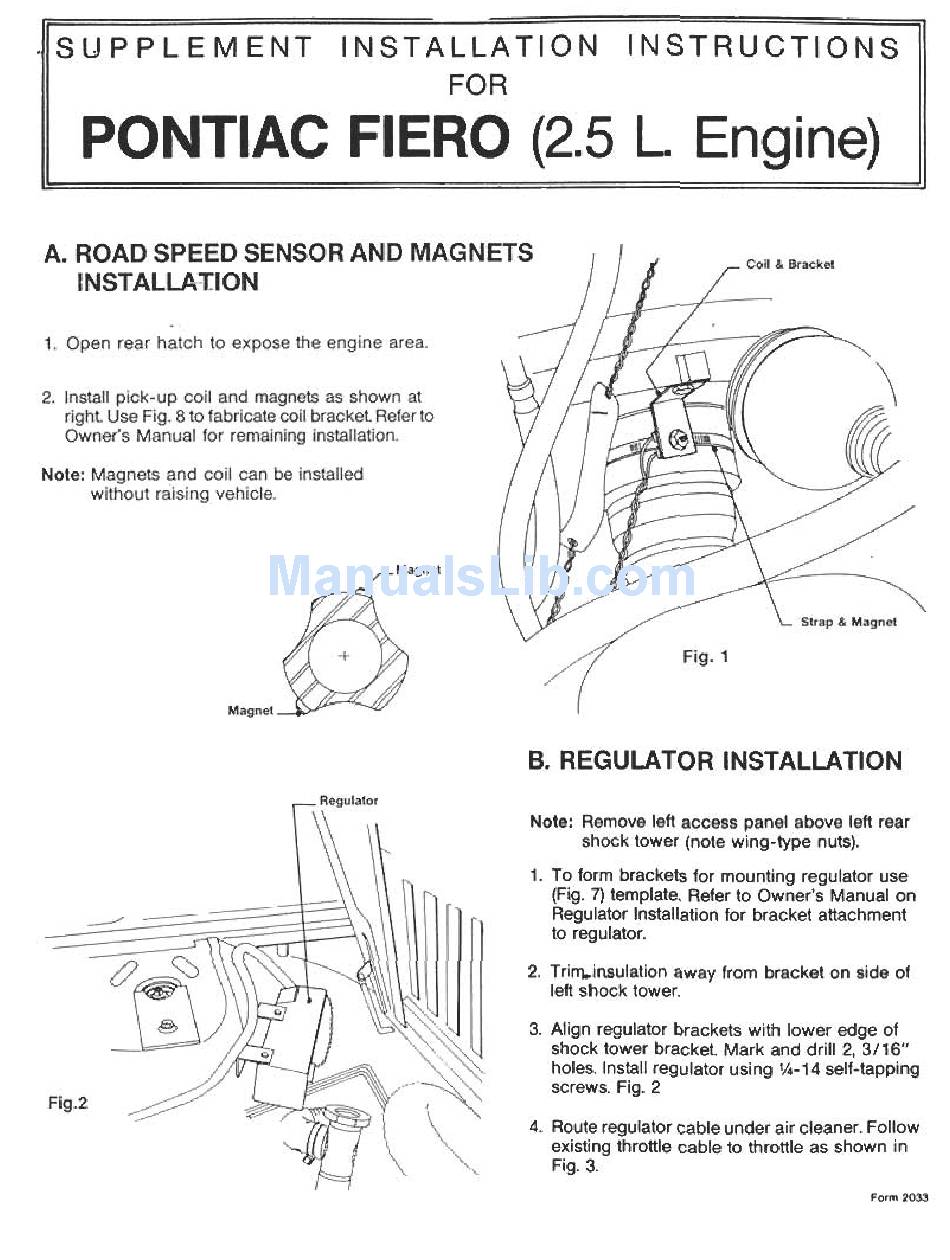

B.
REGULATOR
INSTALLATION
Note:
Remove left access
panel above left rear
shock tower (note wing-type
nuts).
1. To form brackets for mounting regulator use
(Fig. 7) template. Refer to Owner's Manual on
Regulator Installation for bracket attachment
to regulator.
2. Trirn..il1sulation
away from bracket
on side of
left shock tower.
3. Align regulator brackets with lower edge of
shock tower bracket. Mark and drill 2, 3/16"
holes. Install regulator using 1/4-14 self-tapping
screws. Fig. 2
4. Route regulator cable under air cleaner. Follow
existing throttle cable to throttle as shown in
Fig. 3.
Form 2033

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Automobile Parts and is the answer not in the manual?

Questions and answers

Summary of Contents for Pontiac Automobile Parts

  • Page 1 REGULATOR INSTALLATION Note: Remove left access panel above left rear shock tower (note wing-type 1. To form brackets for mounting regulator use (Fig. 7) template. Refer to Owner's Manual on Regulator Installation for bracket attachment to regulator. 2. Trirn..il1sulation away from bracket left shock tower.
  • Page 2 .rap 5. Attach~bead chain connector to existing throttle as shown in Fig. 3. WIRING HARNESS 1. Installation of the wiring harness requires a harness extension part #250-4166. This is due to the engine distance from the fuse panel, brake light switch and control switch.
  • Page 3 2. Remove Console .a. Lift out ash trays. remove 2 -7 mm screws from each (under ash trays). Note: This part of the console only needs to be lifted a few inches. Do not pullover b. Loosen 2 -7 mm screws at the front of main console. Open glove box, remove 2 -7 mm screws. Lift out console.
  • Page 4 Fig.7 Fig.8...
  • Page 5 VACUUM TYPE SYSTEM 1. To install vacuum type system on vehicle follow illustration as shown below. Refer to Owner's Manual for remaining installation. Servo- Assembly '\ \-.- To Vacuum ---c: Source R~:~~~~ ~ F. ELECTRONIC REGULATOR EXTENSION 1. Follow same procedure as mentioned in Section D, except Electronic Regulator is mounted as shown in console.
