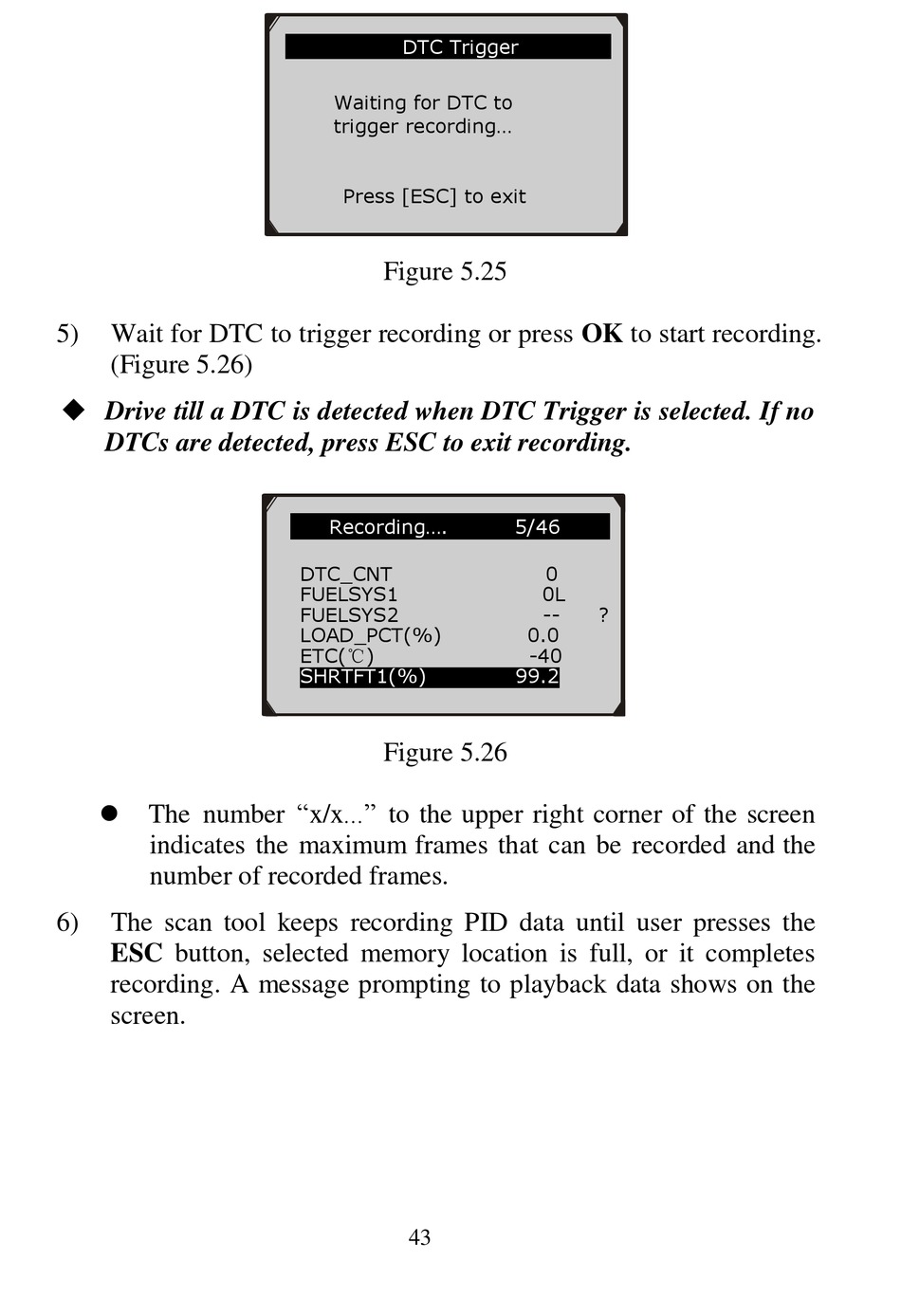

5) Wait for DTC to trigger recording or press OK to start recording.
(Figure 5.26)
 Drive till a DTC is detected when DTC Trigger is selected. If no
DTCs are detected, press ESC to exit recording.
 The number "x/x..." to the upper right corner of the screen
indicates the maximum frames that can be recorded and the
number of recorded frames.
6) The scan tool keeps recording PID data until user presses the
ESC button, selected memory location is full, or it completes
recording. A message prompting to playback data shows on the
screen.
......................DTC
Waiting for DTC to
trigger recording...
Press [ESC] to exit
Figure 5.25
.......Recording....
DTC_CNT
FUELSYS1
FUELSYS2
LOAD_PCT(%)
ETC(℃)
SHRTFT1(%)
Figure 5.26
43
Trigger.................
5/46 .....
0
0L
-- ?
0.0
-40
99.2
