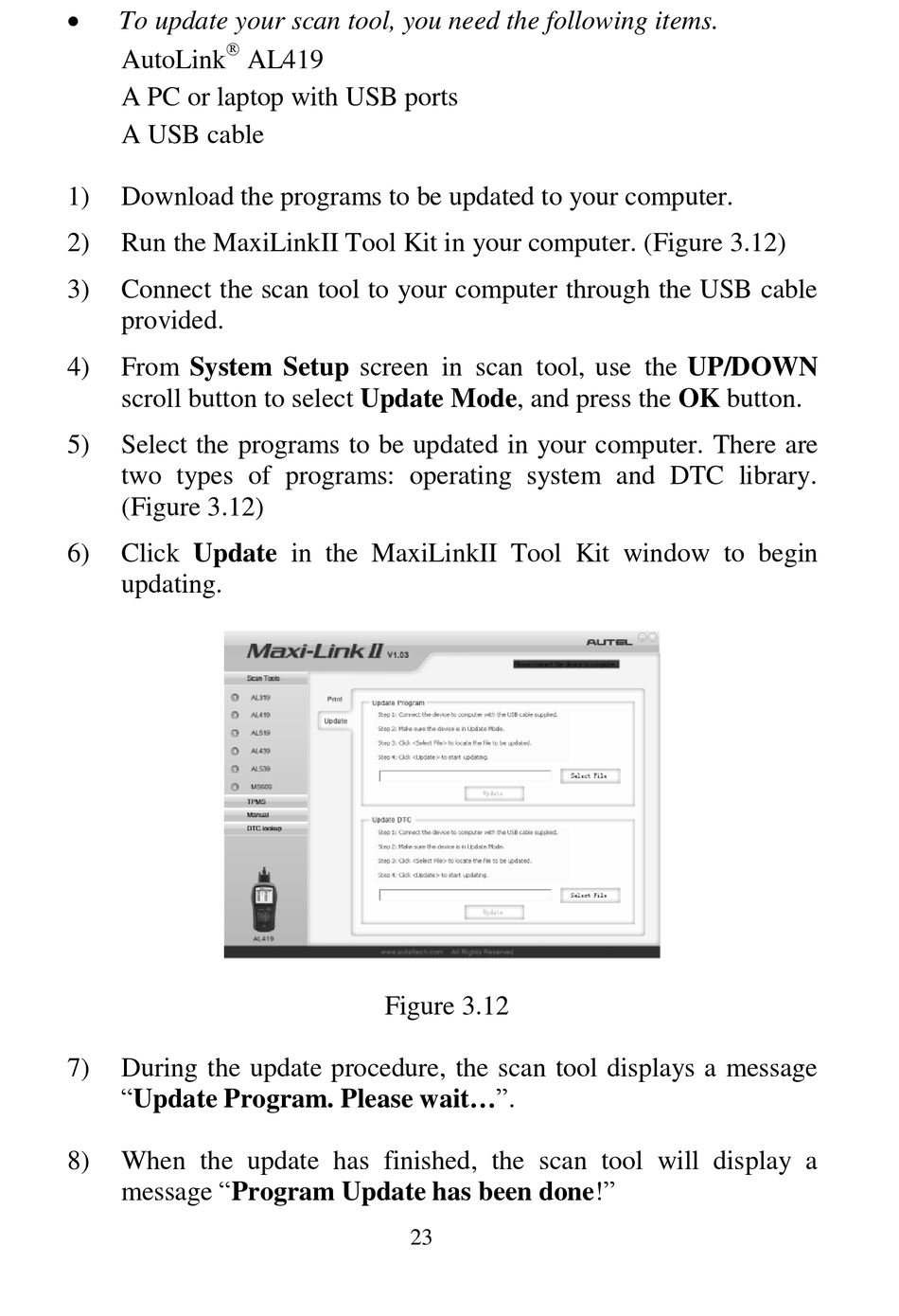

To update your scan tool, you need the following items.
AutoLink
A PC or laptop with USB ports
A USB cable
1) Download the programs to be updated to your computer.
2) Run the MaxiLinkII Tool Kit in your computer. (Figure 3.12)
3) Connect the scan tool to your computer through the USB cable
provided.
4) From System Setup screen in scan tool, use the UP/DOWN
scroll button to select Update Mode, and press the OK button.
5) Select the programs to be updated in your computer. There are
two types of programs: operating system and DTC library.
(Figure 3.12)
6) Click Update in the MaxiLinkII Tool Kit window to begin
updating.
7) During the update procedure, the scan tool displays a message
"Update Program. Please wait...".
8) When the update has finished, the scan tool will display a
message "Program Update has been done!"

AL419
Figure 3.12
