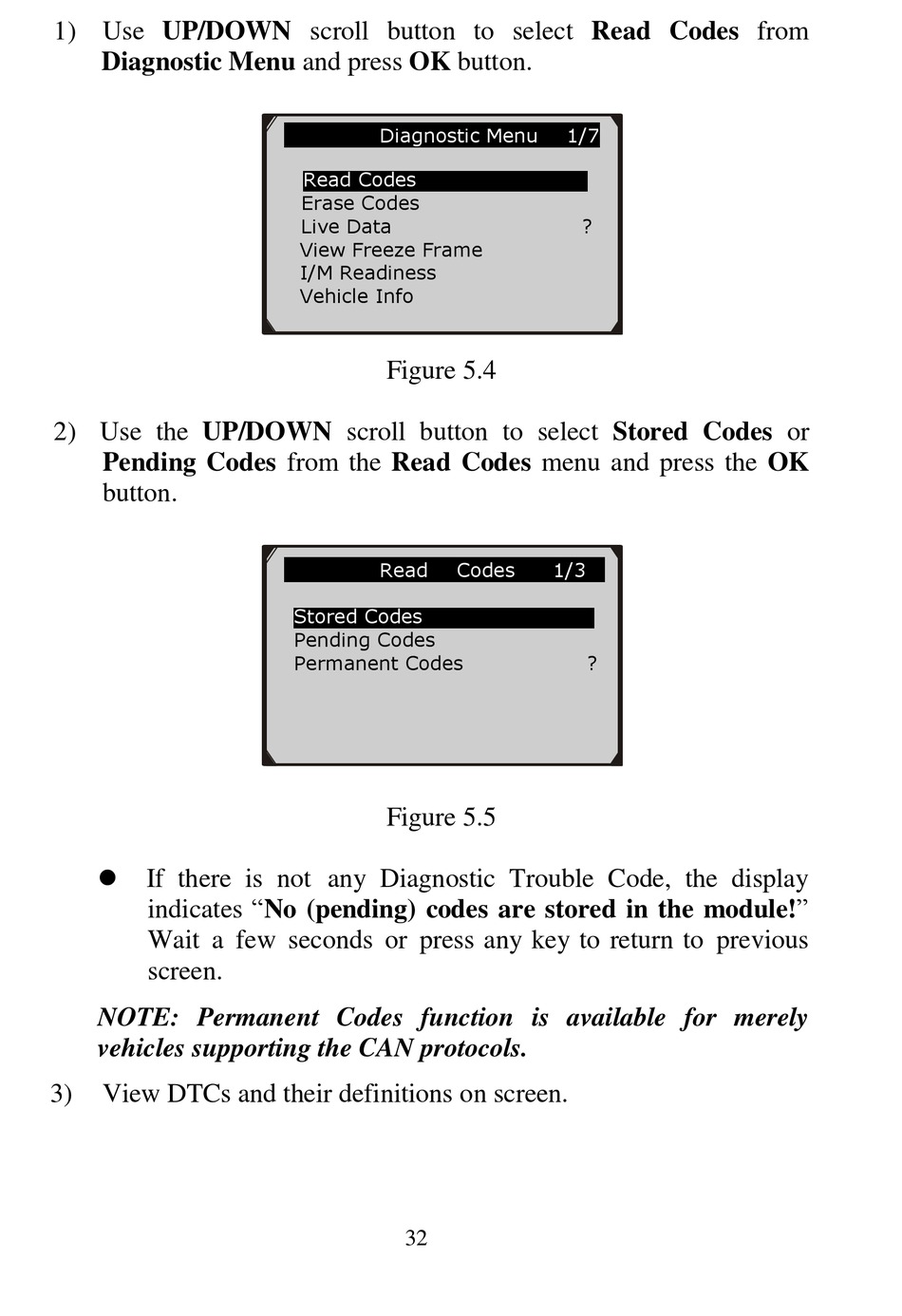

1) Use UP/DOWN scroll button to select Read Codes from
Diagnostic Menu and press OK button.
2) Use the UP/DOWN scroll button to select Stored Codes or
Pending Codes from the Read Codes menu and press the OK
button.

If there is not any Diagnostic Trouble Code, the display
indicates "No (pending) codes are stored in the module!"
Wait a few seconds or press any key to return to previous
screen.
NOTE: Permanent Codes function is available for merely
vehicles supporting the CAN protocols.
3) View DTCs and their definitions on screen.
Diagnostic Menu
Read Codes
Erase Codes
Live Data
View Freeze Frame
I/M Readiness
Vehicle Info
Figure 5.4
Read
Stored Codes
Pending Codes
Permanent Codes
Figure 5.5
