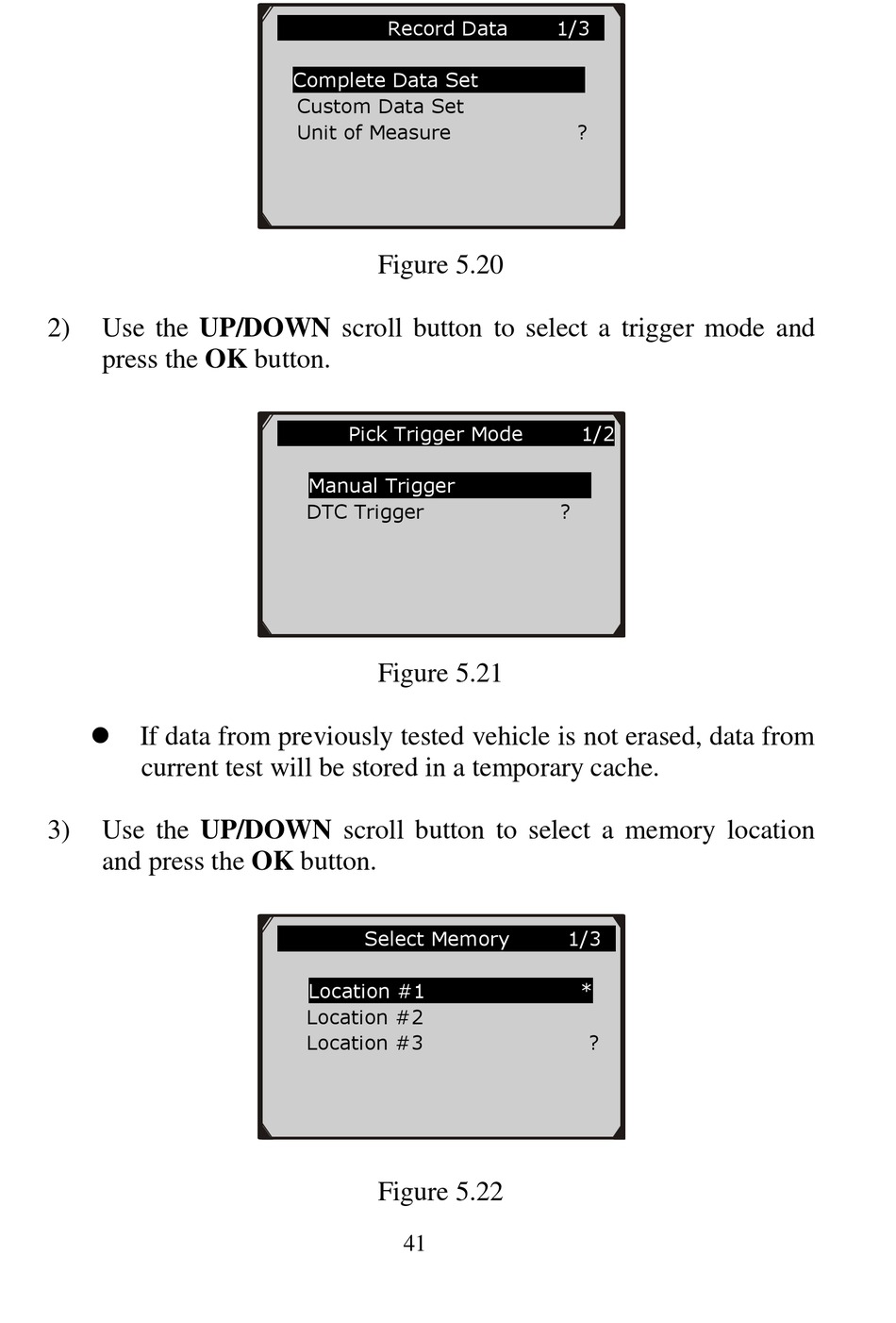

Autel AutoLink AL419 Manual page 42

2) Use the UP/DOWN scroll button to select a trigger mode and
press the OK button.

If data from previously tested vehicle is not erased, data from
current test will be stored in a temporary cache.
3) Use the UP/DOWN scroll button to select a memory location
and press the OK button.
....................Record Data
Complete Data Set
Custom Data Set
Unit of Measure
Figure 5.20
.............Pick Trigger Mode
Manual Trigger
DTC Trigger
Figure 5.21
................Select Memory
Location #1
Location #2
Location #3
Figure 5.22
41
1/3..
?
1/2
?
1/3..
*
?
