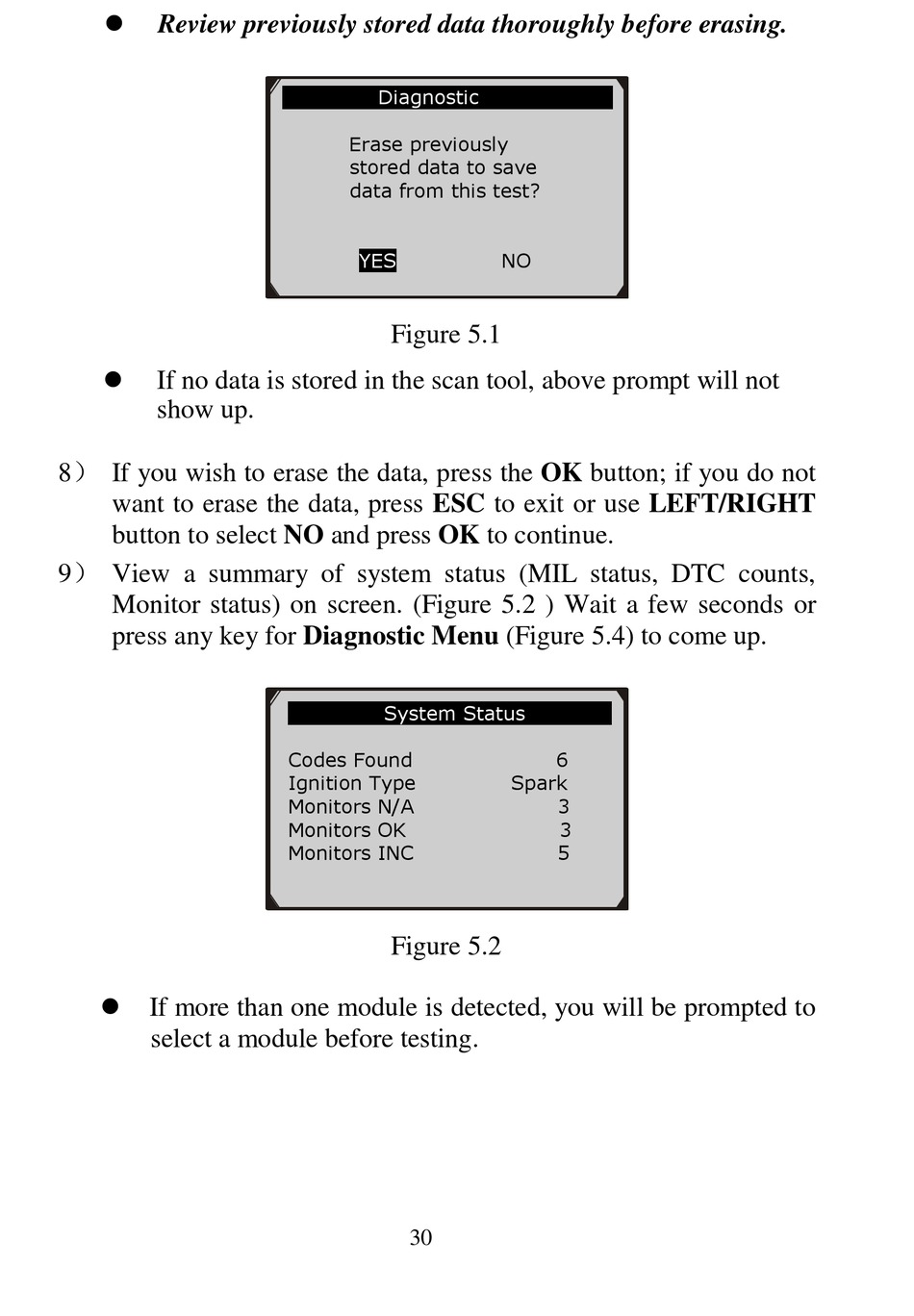

Review previously stored data thoroughly before erasing.

If no data is stored in the scan tool, above prompt will not
show up.
8） If you wish to erase the data, press the OK button; if you do not
want to erase the data, press ESC to exit or use LEFT/RIGHT
button to select NO and press OK to continue.
9） View a summary of system status (MIL status, DTC counts,
Monitor status) on screen. (Figure 5.2 ) Wait a few seconds or
press any key for Diagnostic Menu (Figure 5.4) to come up.

If more than one module is detected, you will be prompted to
select a module before testing.
Diagnostic
Erase previously
stored data to save
data from this test?
YES
Figure 5.1
System Status
Codes Found
Ignition Type
Monitors N/A
Monitors OK
Monitors INC
Figure 5.2
30
NO
6
Spark
3
3
5
