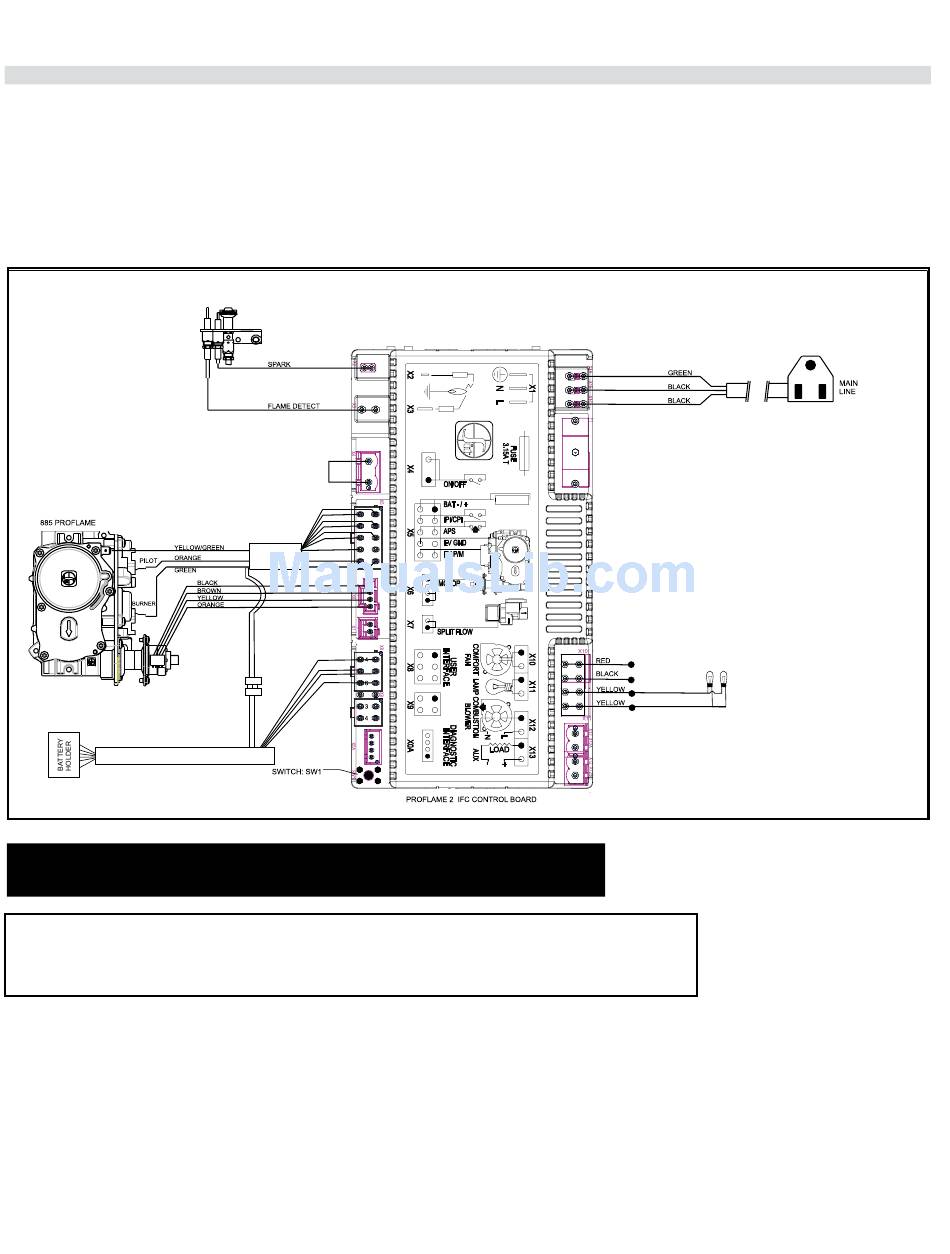

Wiring Diagrams
No electrical power supply is required for the gas
control to operate. 120 Volt AC power is needed
for the lights. A receptacle box, receptacle and
cover are provided and located on the left hand
side of the unit, under the outer base panel.
Electrical power must be brought to the
appliance by a licensed electrician.
CAUTION: Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
This appliance is equipped with a three-prong (grounding) plug for your protection
against shock hazard and should be plugged directly into a properly grounded three-
prong receptacle. Do not cut or remove the grounding prong from this plug.
(Do not cut the ground terminal off under any
circumstances.)
BLACK
BATTERY
CONNECTION
installation
Caution: Ensure that the wires do not
touch any hot surfaces and are away from
sharp edges.
VARIABLE
LIGHTS
City Series |
61
