installation

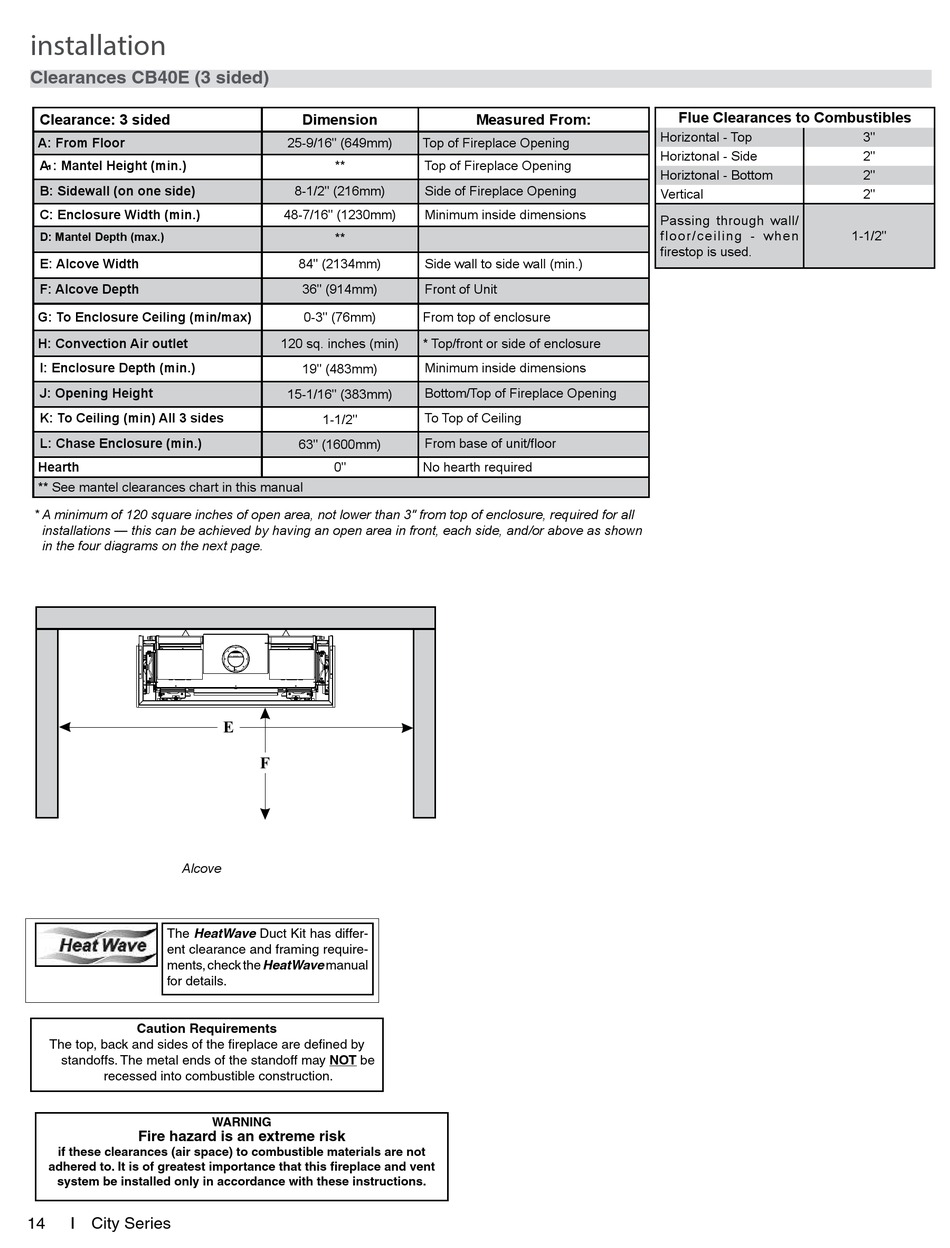

Clearances CB40E (3 sided)

Clearance: 3 sided
A: From Floor
A� � � � : Mantel Height (min.)
B: Sidewall (on one side)
C: Enclosure Width (min.)
D: Mantel Depth (max.)
E: Alcove Width
F: Alcove Depth
G: To Enclosure Ceiling (min/max)
H: Convection Air outlet
I: Enclosure Depth (min.)
J: Opening Height
K: To Ceiling (min) All 3 sides
L: Chase Enclosure (min.)
Hearth
** See mantel clearances chart in this manual
* A minimum of 120 square inches of open area, not lower than 3" from top of enclosure, required for all
installations — this can be achieved by having an open area in front, each side, and/or above as shown
in the four diagrams on the next page.
Alcove
The HeatWave Duct Kit has differ-
ent clearance and framing require-
ments, check the HeatWave manual
for details.
Caution Requirements
The top, back and sides of the ireplace are deined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this ireplace and vent
system be installed only in accordance with these instructions.
14 | City Series
Dimension
25-9/16" (649mm)
**
8-1/2" (216mm)
48-7/16" (1230mm)
**
84" (2134mm)
36" (914mm)
0-3" (76mm)
120 sq. inches (min)
19" (483mm)
15-1/16" (383mm)
1-1/2"
63" (1600mm)
0"
E
F
WARNING
Measured From:
Top of Fireplace Opening
Top of Fireplace Opening
Side of Fireplace Opening
Minimum inside dimensions
Side wall to side wall (min.)
Front of Unit
From top of enclosure
* Top/front or side of enclosure
Minimum inside dimensions
Bottom/Top of Fireplace Opening
To Top of Ceiling
From base of unit/loor
No hearth required
Flue Clearances to Combustibles
Horizontal - Top
Horiztonal - Side
Horiztonal - Bottom
Vertical
Passing through wall/
floor/ceiling - when
irestop is used.
3"
2"
2"
2"
1-1/2"
