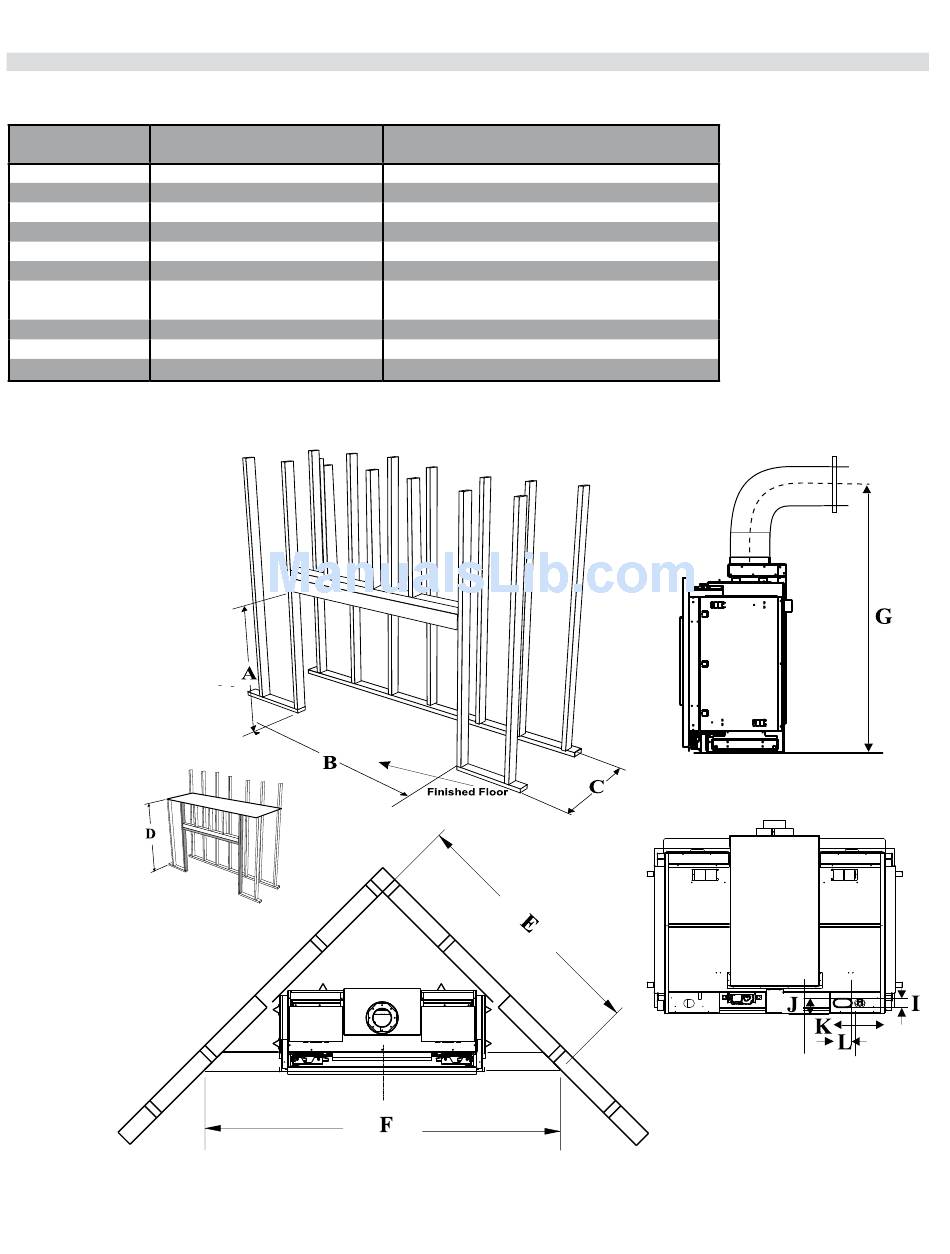

Framing Dimensions CV40E (single sided)

NOTE: Framing may be constructed of combustible material (ie. 2 x 4)and does not require steel studs.
Framing
Description
Dimensions
A Framing Height
B Framing Width
C Framing Depth
D Minimum Height to Combustibles
E Corner Wall Depth
F Corner Facing Wall Width
G Vent Centerline Height
I Gas Connection Opening Height
J Gas Connection Height
K Gas Connection Inset
L Gas Connection Opening Width
Note: A combined minimum of
120 square inches of open area
is required for the convection air
outlet to cool the enclosure. En-
sure clearances for Convection Air
Outlets are met.
See clearances CV40E (single
sided) in this manual as there are
different methods as to how this
can be achieved.
Note: This appliance must be in-
stalled on a solid surface such as
a plywood loor which must be the
full width and depth of the appliance.
CV40E
37-3/8" (949mm)
46-3/4" (1187mm)
19" (483mm)
63"(1600mm)
55" (1396mm)
77-3/4" (1974mm)
56-1/4" (1429mm)
2" (51mm)
4 " (106mm)
13" (330mm)
3-1/2" (89mm)
