installation

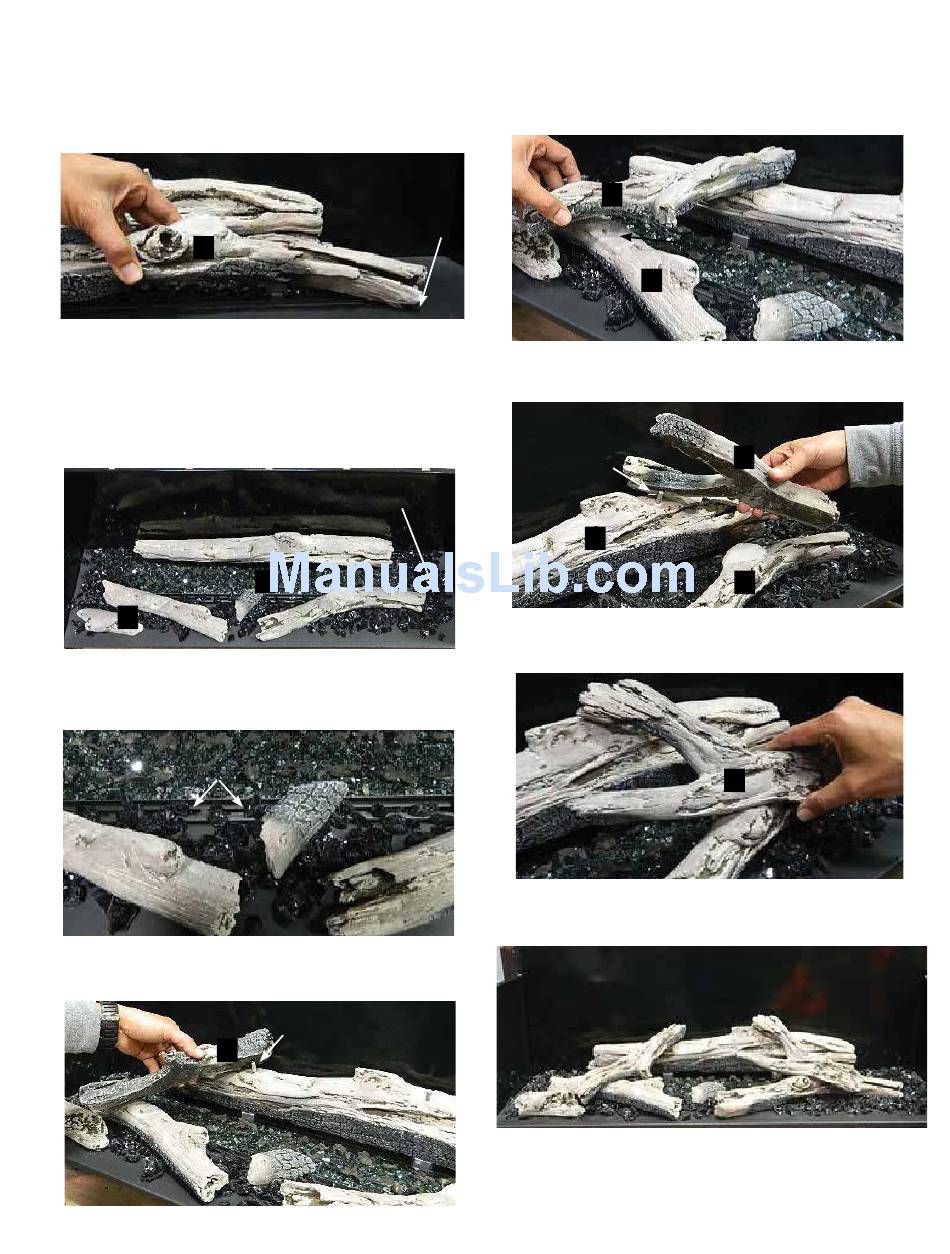

8. Place the split end of Log 3 to the right front corner of the burner—angle
the log so that the other end is sitting approximately 1/2" (13mm) from
the edge of the burner tray.
9. Place Log 6 and Log 7 on the burner locations shown below.
10. Before placing the next log—spread the optional media evenly
throughout the burner tray as shown.
6
NOTE: Ensure the installed optional media doesn't completely block the
air fl ow—ensure more than 50% of the airfl ow is open (shown with 3/4"
crushed black glass).
Do not completely
block air fl ow
11. Place Log 4—identify the pin locator and match with the left side
pin on Log 1.
76 | City Series
Log to corner of
3
Log 3 placement
3/4" Crushed black
glass on burner tray
7
Pin in Log 1
4
Rest the other end of Log 4 on the indent in Log 2 as shown below.
burner
12. Place Log 5—identify the pin locator and match with the right side
pin on Log 1.
Pin in Log 1
Rest the other end of Log 5 on the indent in Log 3 as shown below.
Add lava rock sparsely around the perimeter of the burner.
4
Indent Log 2
2
5
1
3
5
Completed Install
