Regency CV40E-NG Owners & Installation Manual page 26

installation

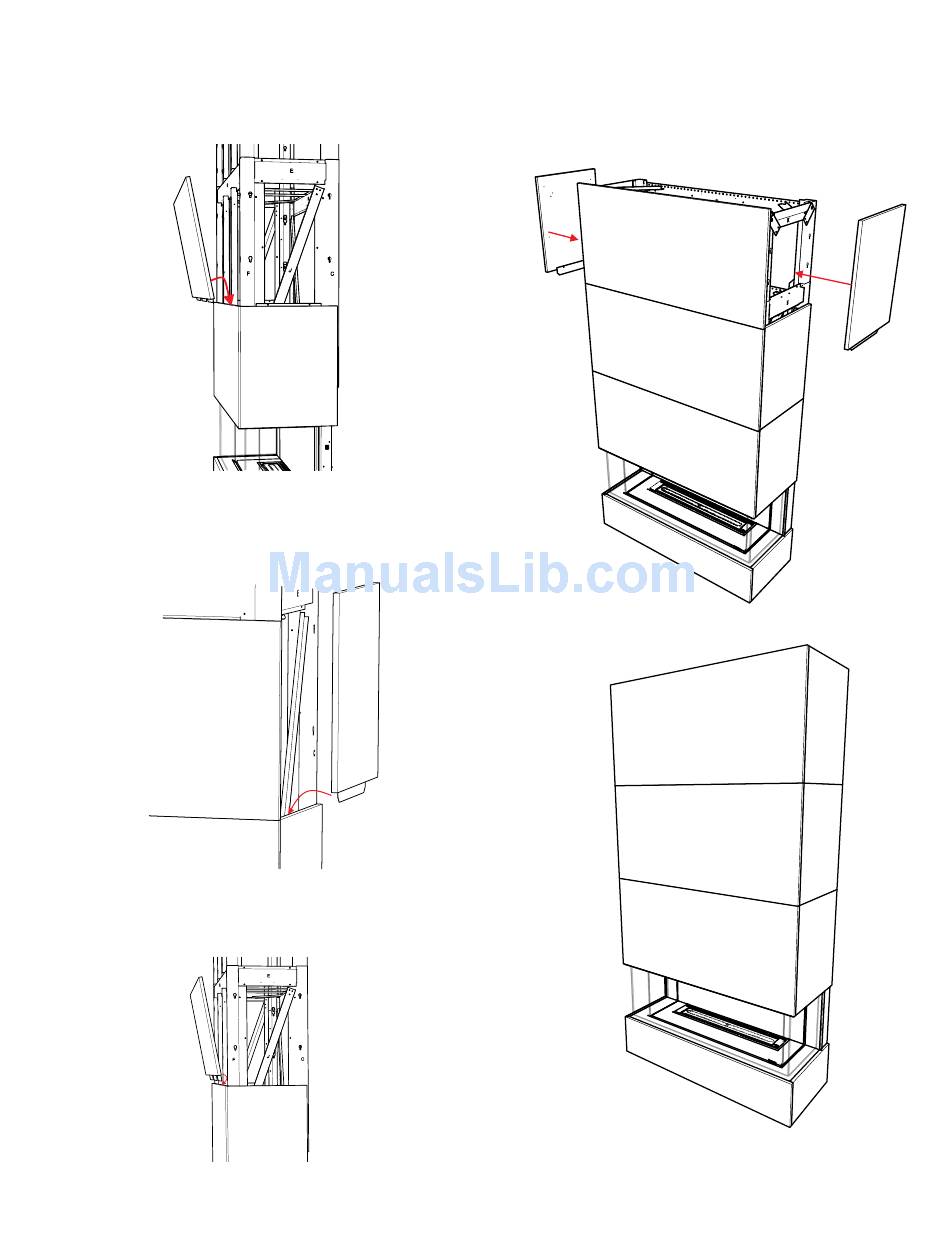

5. Install the front middle panel, position the brackets at the bottom of the
middle front panel in behind the front lower panel.
Brackets on Middle Front Panel—position behind top of Front Lower panel
6. Tighten the screws at the back of the middle panel.
7. Install the two middle side panels—tighten the screws for these panels from
the inside of the framing. (See Step 4 for details)
Brackets on middle side panels—position behind top of lower side panels
8. Install the front top panel and tighten the screws from inside the framing unit.
Brackets on front top panel—position behind top of front middle panel
26 | City Series
9. Install the top side panels, these panels do not allow for the screws to be
tightened once installed. If these panels require adjusting—pre-tighten the
screws before hanging the panels to obtain desired position of the panels.
Brackets on top side panels—position behind top of middle side panels
Completed panel install
