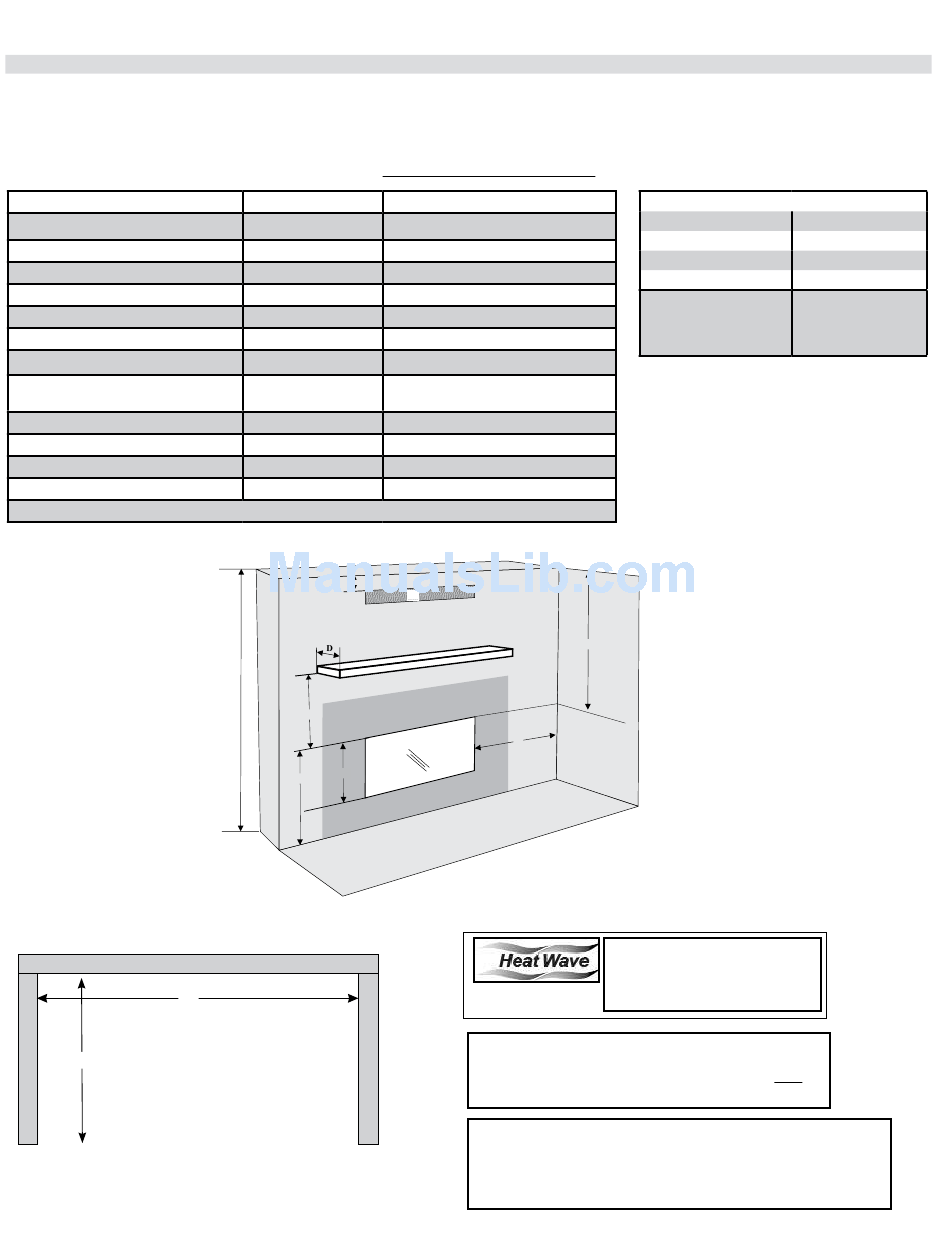

Clearances CV40E (single sided)

The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related ires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this
ireplace and vent system be installed only in accordance with these instructions.
Note: CV40E (single sided unit) clearances listed on this page - for CB40E (3 sided) see next page.
Clearance: single sided
A: Mantel Height (min.)
B1:From Floor
B2: Opening Height
C: Sidewall (on one side)
D: Mantel Depth (max.)
E: Alcove Width
F: Alcove Depth
G: Ceiling
(in front of ireplace)
H: Convection Air Outlet
J: Convection Air Outlet Opening Ofset
K: Chase Enclosure (Min.)
Hearth
** See mantel clearances chart in this manual.
*
A minimum of 120 square
inches of open area, not
lower than 3" from top of
enclosure, required for all
installations
E
F
Alcove
Dimension
**
Top of Fireplace Opening
25-9/16" (649mm)
Top of Fireplace Opening
15-1/16" (383mm)
Bottom/Top of Fireplace Opening
8-1/2" (216mm)
Side of Fireplace Opening
**
84" (2134mm)
Sidewall to Sidewall (Minimum)
36" (914mm)
Front to Unit (Maximum)
37-1/2" (953mm)
Top of Fireplace Opening
*
Top of Enclosure
Max. ofset from top of chase enclosure
0-3" (76mm)
From base of unit/loor
63" (1600mm)
0"
No hearth required
J
H
K
A
B
2
B
1
Measured From:
G
C
CV40E- Single sided
The HeatWave Duct Kit has differ-
ent clearance and framing require-
ments, check the HeatWave manual
for details.
Caution Requirements
The top, back and sides of the ireplace are deined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this ireplace and vent
system be installed only in accordance with these instructions.
installation
Flue Clearances to Combustibles
Horizontal - Top
Horiztonal - Side
Horiztonal - Bottom
Vertical
Passing through wall/
floor/ceiling - when
irestop is used.
WARNING
City Series |
3"
2"
2"
2"
1-1/2"
13
