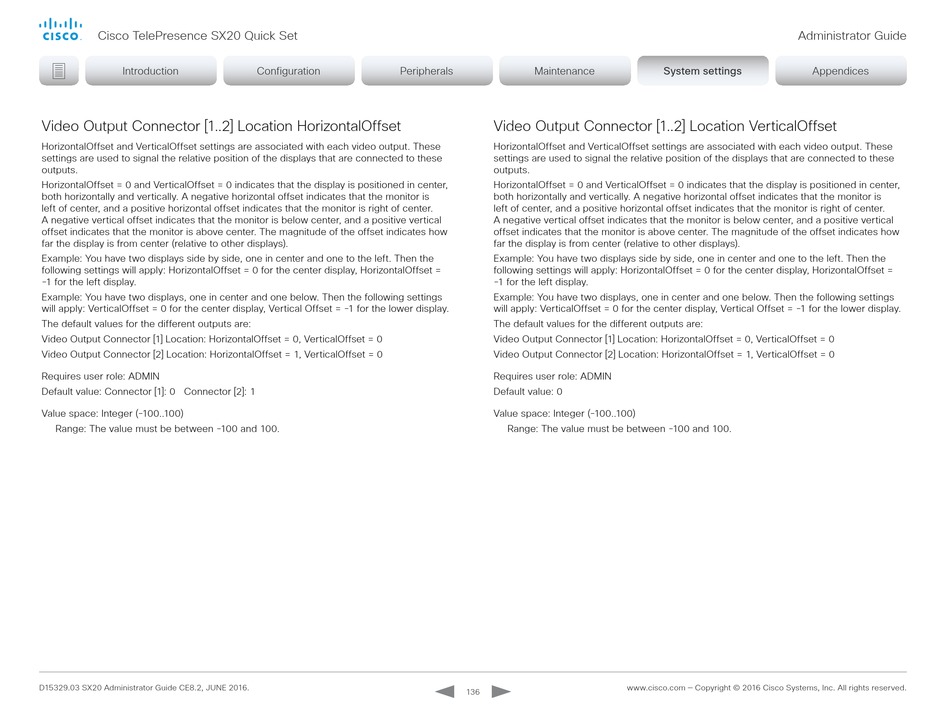

Video Output Connector [1..2] Location HorizontalOffset
HorizontalOffset and VerticalOffset settings are associated with each video output. These
settings are used to signal the relative position of the displays that are connected to these
outputs.
HorizontalOffset = 0 and VerticalOffset = 0 indicates that the display is positioned in center,
both horizontally and vertically. A negative horizontal offset indicates that the monitor is
left of center, and a positive horizontal offset indicates that the monitor is right of center.
A negative vertical offset indicates that the monitor is below center, and a positive vertical
offset indicates that the monitor is above center. The magnitude of the offset indicates how
far the display is from center (relative to other displays).
Example: You have two displays side by side, one in center and one to the left. Then the
following settings will apply: HorizontalOffset = 0 for the center display, HorizontalOffset =
-1 for the left display.
Example: You have two displays, one in center and one below. Then the following settings
will apply: VerticalOffset = 0 for the center display, Vertical Offset = -1 for the lower display.
The default values for the different outputs are:
Video Output Connector [1] Location: HorizontalOffset = 0, VerticalOffset = 0
Video Output Connector [2] Location: HorizontalOffset = 1, VerticalOffset = 0
Requires user role: ADMIN
Default value: Connector [1]: 0 Connector [2]: 1
Value space: Integer (-100..100)
Range: The value must be between -100 and 100.
D15329.03 SX20 Administrator Guide CE8.2, JUNE 2016.
Configuration Peripherals Maintenance
Video Output Connector [1..2] Location VerticalOffset
HorizontalOffset and VerticalOffset settings are associated with each video output. These
settings are used to signal the relative position of the displays that are connected to these
outputs.
HorizontalOffset = 0 and VerticalOffset = 0 indicates that the display is positioned in center,
both horizontally and vertically. A negative horizontal offset indicates that the monitor is
left of center, and a positive horizontal offset indicates that the monitor is right of center.
A negative vertical offset indicates that the monitor is below center, and a positive vertical
offset indicates that the monitor is above center. The magnitude of the offset indicates how
far the display is from center (relative to other displays).
Example: You have two displays side by side, one in center and one to the left. Then the
following settings will apply: HorizontalOffset = 0 for the center display, HorizontalOffset =
-1 for the left display.
Example: You have two displays, one in center and one below. Then the following settings
will apply: VerticalOffset = 0 for the center display, Vertical Offset = -1 for the lower display.
The default values for the different outputs are:
Video Output Connector [1] Location: HorizontalOffset = 0, VerticalOffset = 0
Video Output Connector [2] Location: HorizontalOffset = 1, VerticalOffset = 0
Requires user role: ADMIN
Default value: 0
Value space: Integer (-100..100)
Range: The value must be between -100 and 100.
