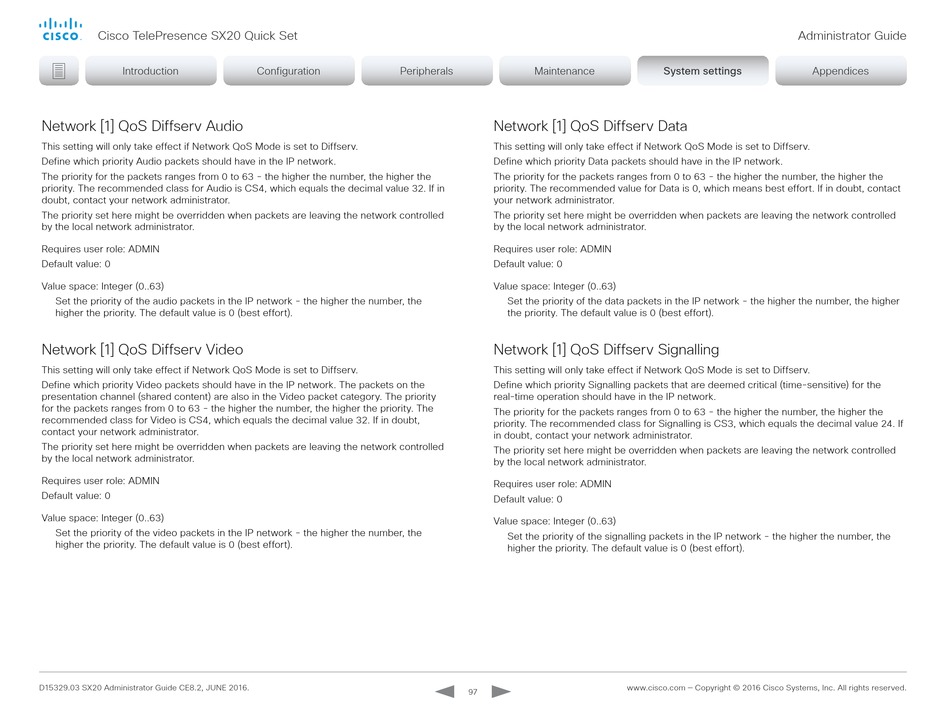

Network [1] QoS Diffserv Audio

This setting will only take effect if Network QoS Mode is set to Diffserv.
Define which priority Audio packets should have in the IP network.
The priority for the packets ranges from 0 to 63 - the higher the number, the higher the
priority. The recommended class for Audio is CS4, which equals the decimal value 32. If in
doubt, contact your network administrator.
The priority set here might be overridden when packets are leaving the network controlled
by the local network administrator.
Requires user role: ADMIN
Default value: 0
Value space: Integer (0..63)
Set the priority of the audio packets in the IP network - the higher the number, the
higher the priority. The default value is 0 (best effort).

Network [1] QoS Diffserv Video

This setting will only take effect if Network QoS Mode is set to Diffserv.
Define which priority Video packets should have in the IP network. The packets on the
presentation channel (shared content) are also in the Video packet category. The priority
for the packets ranges from 0 to 63 - the higher the number, the higher the priority. The
recommended class for Video is CS4, which equals the decimal value 32. If in doubt,
contact your network administrator.
The priority set here might be overridden when packets are leaving the network controlled
by the local network administrator.
Requires user role: ADMIN
Default value: 0
Value space: Integer (0..63)
Set the priority of the video packets in the IP network - the higher the number, the
higher the priority. The default value is 0 (best effort).
D15329.03 SX20 Administrator Guide CE8.2, JUNE 2016.
Configuration Peripherals Maintenance

Network [1] QoS Diffserv Data

This setting will only take effect if Network QoS Mode is set to Diffserv.
Define which priority Data packets should have in the IP network.
The priority for the packets ranges from 0 to 63 - the higher the number, the higher the
priority. The recommended value for Data is 0, which means best effort. If in doubt, contact
your network administrator.
The priority set here might be overridden when packets are leaving the network controlled
by the local network administrator.
Requires user role: ADMIN
Default value: 0
Value space: Integer (0..63)
Set the priority of the data packets in the IP network - the higher the number, the higher
the priority. The default value is 0 (best effort).

Network [1] QoS Diffserv Signalling

This setting will only take effect if Network QoS Mode is set to Diffserv.
Define which priority Signalling packets that are deemed critical (time-sensitive) for the
real-time operation should have in the IP network.
The priority for the packets ranges from 0 to 63 - the higher the number, the higher the
priority. The recommended class for Signalling is CS3, which equals the decimal value 24. If
in doubt, contact your network administrator.
The priority set here might be overridden when packets are leaving the network controlled
by the local network administrator.
Requires user role: ADMIN
Default value: 0
Value space: Integer (0..63)
Set the priority of the signalling packets in the IP network - the higher the number, the
higher the priority. The default value is 0 (best effort).
