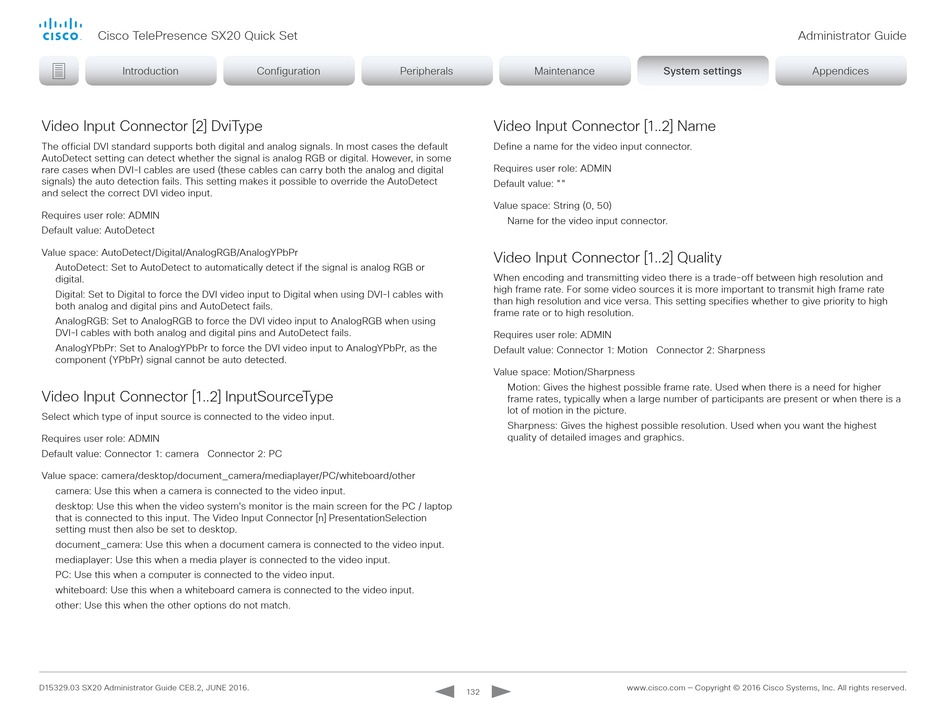

Video Input Connector [2] DviType

The official DVI standard supports both digital and analog signals. In most cases the default
AutoDetect setting can detect whether the signal is analog RGB or digital. However, in some
rare cases when DVI-I cables are used (these cables can carry both the analog and digital
signals) the auto detection fails. This setting makes it possible to override the AutoDetect
and select the correct DVI video input.
Requires user role: ADMIN
Default value: AutoDetect
Value space: AutoDetect/Digital/AnalogRGB/AnalogYPbPr
AutoDetect: Set to AutoDetect to automatically detect if the signal is analog RGB or
digital.
Digital: Set to Digital to force the DVI video input to Digital when using DVI-I cables with
both analog and digital pins and AutoDetect fails.
AnalogRGB: Set to AnalogRGB to force the DVI video input to AnalogRGB when using
DVI-I cables with both analog and digital pins and AutoDetect fails.
AnalogYPbPr: Set to AnalogYPbPr to force the DVI video input to AnalogYPbPr, as the
component (YPbPr) signal cannot be auto detected.

Video Input Connector [1..2] InputSourceType

Select which type of input source is connected to the video input.
Requires user role: ADMIN
Default value: Connector 1: camera Connector 2: PC
Value space: camera/desktop/document_camera/mediaplayer/PC/whiteboard/other
camera: Use this when a camera is connected to the video input.
desktop: Use this when the video system's monitor is the main screen for the PC / laptop
that is connected to this input. The Video Input Connector [n] PresentationSelection
setting must then also be set to desktop.
document_camera: Use this when a document camera is connected to the video input.
mediaplayer: Use this when a media player is connected to the video input.
PC: Use this when a computer is connected to the video input.
whiteboard: Use this when a whiteboard camera is connected to the video input.
other: Use this when the other options do not match.
D15329.03 SX20 Administrator Guide CE8.2, JUNE 2016.
Configuration Peripherals Maintenance
Video Input Connector [1..2] Name
Define a name for the video input connector.
Requires user role: ADMIN
Default value: ""
Value space: String (0, 50)
Name for the video input connector.
Video Input Connector [1..2] Quality
When encoding and transmitting video there is a trade-off between high resolution and
high frame rate. For some video sources it is more important to transmit high frame rate
than high resolution and vice versa. This setting specifies whether to give priority to high
frame rate or to high resolution.
Requires user role: ADMIN
Default value: Connector 1: Motion Connector 2: Sharpness
Value space: Motion/Sharpness
Motion: Gives the highest possible frame rate. Used when there is a need for higher
frame rates, typically when a large number of participants are present or when there is a
lot of motion in the picture.
Sharpness: Gives the highest possible resolution. Used when you want the highest
quality of detailed images and graphics.
