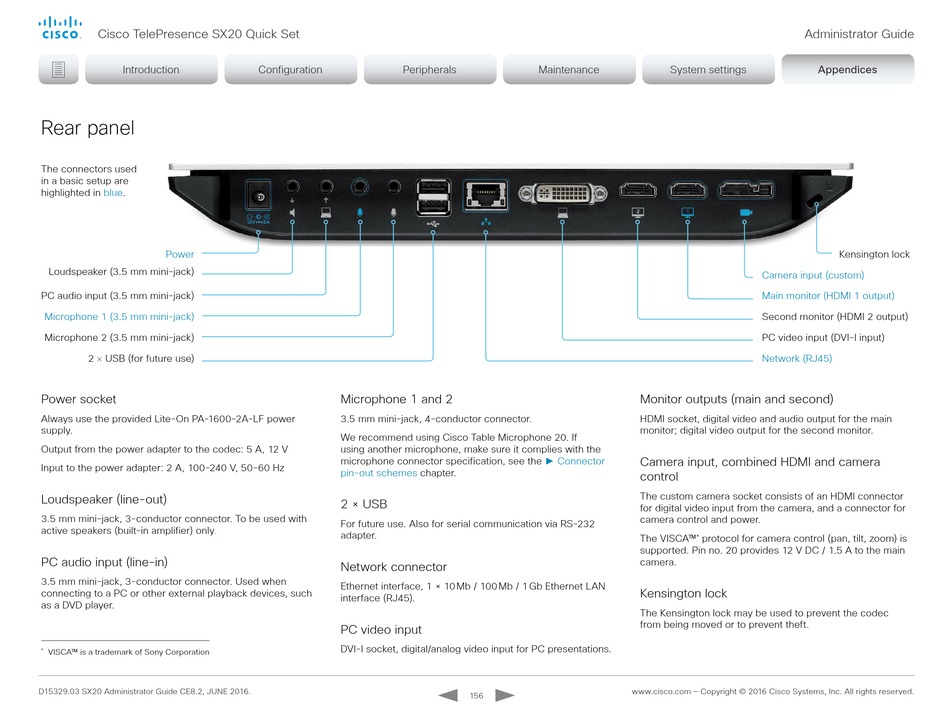

Rear panel

The connectors used
in a basic setup are
highlighted in blue.
Power
Loudspeaker (3.5 mm mini-jack)
PC audio input (3.5 mm mini-jack)
Microphone 1 (3.5 mm mini-jack)
Microphone 2 (3.5 mm mini-jack)
2 × USB (for future use)
Power socket
Always use the provided Lite-On PA-1600-2A-LF power
supply.
Output from the power adapter to the codec: 5 A, 12 V
Input to the power adapter: 2 A, 100-240 V, 50-60 Hz
Loudspeaker (line-out)
3.5 mm mini-jack, 3-conductor connector. To be used with
active speakers (built-in amplifier) only.
PC audio input (line-in)
3.5 mm mini-jack, 3-conductor connector. Used when
connecting to a PC or other external playback devices, such
as a DVD player.
VISCA™ is a trademark of Sony Corporation
*
D15329.03 SX20 Administrator Guide CE8.2, JUNE 2016.
Configuration Peripherals
Microphone 1 and 2
3.5 mm mini-jack, 4-conductor connector.
We recommend using Cisco Table Microphone 20. If
using another microphone, make sure it complies with the
microphone connector specification, see the
pin-out schemes chapter.
2 × USB
For future use. Also for serial communication via RS-232
adapter.
Network connector
Ethernet interface, 1 × 10 Mb / 100 Mb / 1 Gb Ethernet LAN
interface (RJ45).
PC video input
DVI-I socket, digital/analog video input for PC presentations.
Maintenance
Monitor outputs (main and second)
HDMI socket, digital video and audio output for the main
monitor; digital video output for the second monitor.
Camera input, combined HDMI and camera
► Connector
control
The custom camera socket consists of an HDMI connector
for digital video input from the camera, and a connector for
camera control and power.
The VISCA™
supported. Pin no. 20 provides 12 V DC / 1.5 A to the main
camera.
Kensington lock
The Kensington lock may be used to prevent the codec
from being moved or to prevent theft.
