Cisco TelePresence SX20 Quick Set

Introduction

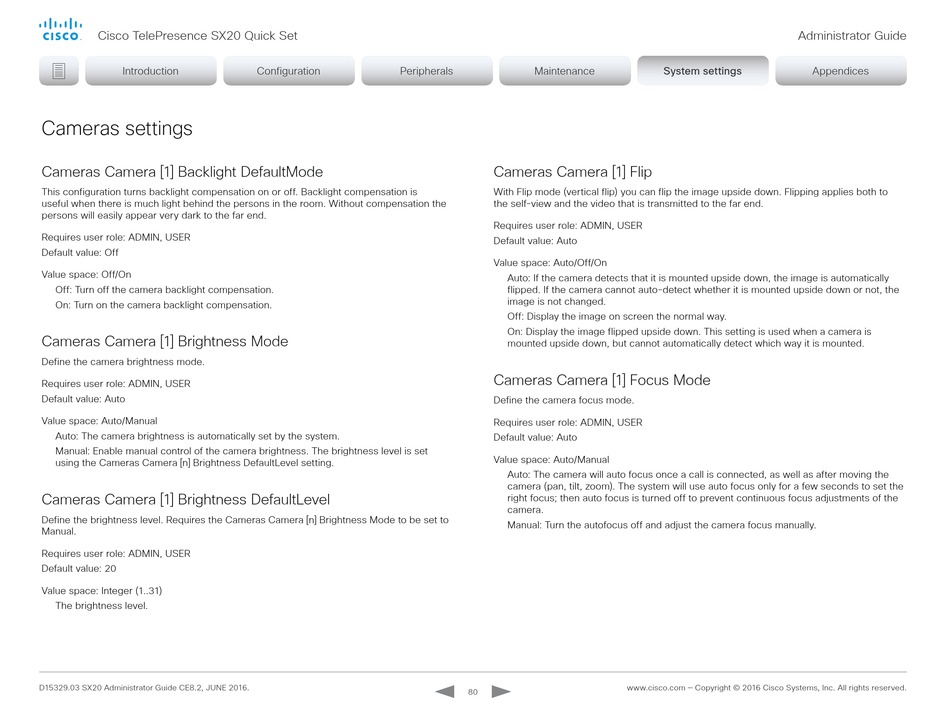

Cameras settings

Cameras Camera [1] Backlight DefaultMode

This configuration turns backlight compensation on or off. Backlight compensation is
useful when there is much light behind the persons in the room. Without compensation the
persons will easily appear very dark to the far end.
Requires user role: ADMIN, USER
Default value: Off
Value space: Off/On
Off: Turn off the camera backlight compensation.
On: Turn on the camera backlight compensation.

Cameras Camera [1] Brightness Mode

Define the camera brightness mode.
Requires user role: ADMIN, USER
Default value: Auto
Value space: Auto/Manual
Auto: The camera brightness is automatically set by the system.
Manual: Enable manual control of the camera brightness. The brightness level is set
using the Cameras Camera [n] Brightness DefaultLevel setting.

Cameras Camera [1] Brightness DefaultLevel

Define the brightness level. Requires the Cameras Camera [n] Brightness Mode to be set to
Manual.
Requires user role: ADMIN, USER
Default value: 20
Value space: Integer (1..31)
The brightness level.
D15329.03 SX20 Administrator Guide CE8.2, JUNE 2016.
Configuration Peripherals Maintenance

Cameras Camera [1] Flip

With Flip mode (vertical flip) you can flip the image upside down. Flipping applies both to
the self-view and the video that is transmitted to the far end.
Requires user role: ADMIN, USER
Default value: Auto
Value space: Auto/Off/On
Auto: If the camera detects that it is mounted upside down, the image is automatically
flipped. If the camera cannot auto-detect whether it is mounted upside down or not, the
image is not changed.
Off: Display the image on screen the normal way.
On: Display the image flipped upside down. This setting is used when a camera is
mounted upside down, but cannot automatically detect which way it is mounted.

Cameras Camera [1] Focus Mode

Define the camera focus mode.
Requires user role: ADMIN, USER
Default value: Auto
Value space: Auto/Manual
Auto: The camera will auto focus once a call is connected, as well as after moving the
camera (pan, tilt, zoom). The system will use auto focus only for a few seconds to set the
right focus; then auto focus is turned off to prevent continuous focus adjustments of the
camera.
Manual: Turn the autofocus off and adjust the camera focus manually.
www.cisco.com — Copyright © 2016 Cisco Systems, Inc. All rights reserved.
80
Administrator Guide
System settings System settings Appendices
