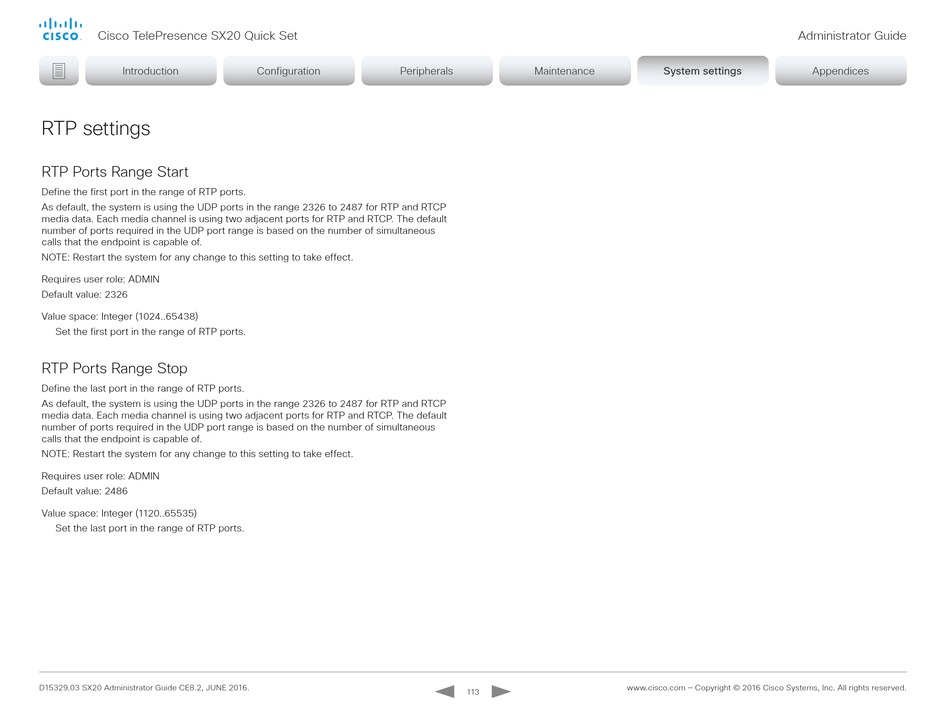

RTP settings

RTP Ports Range Start

Define the first port in the range of RTP ports.
As default, the system is using the UDP ports in the range 2326 to 2487 for RTP and RTCP
media data. Each media channel is using two adjacent ports for RTP and RTCP. The default
number of ports required in the UDP port range is based on the number of simultaneous
calls that the endpoint is capable of.
NOTE: Restart the system for any change to this setting to take effect.
Requires user role: ADMIN
Default value: 2326
Value space: Integer (1024..65438)
Set the first port in the range of RTP ports.

RTP Ports Range Stop

Define the last port in the range of RTP ports.
As default, the system is using the UDP ports in the range 2326 to 2487 for RTP and RTCP
media data. Each media channel is using two adjacent ports for RTP and RTCP. The default
number of ports required in the UDP port range is based on the number of simultaneous
calls that the endpoint is capable of.
NOTE: Restart the system for any change to this setting to take effect.
Requires user role: ADMIN
Default value: 2486
Value space: Integer (1120..65535)
Set the last port in the range of RTP ports.
