To fix power, output and bypass cables, first loosen the 2 screws of the connections
block cover and remove the cover (fig. 19).
6 kVA model 10 kVA model

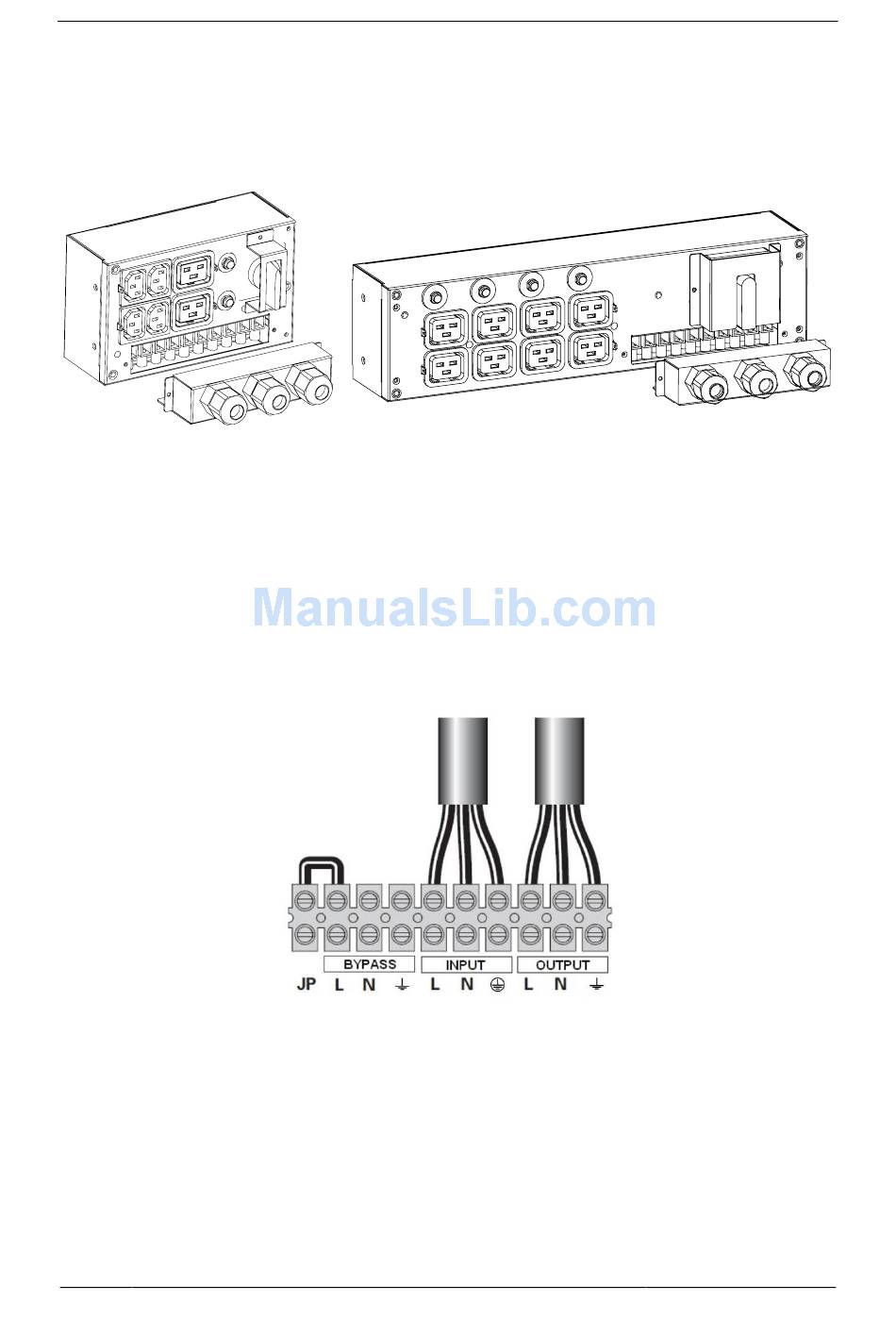

Fig. 19: Access to the connectors block and the outputs block in respective UPS models.
Connecting cables in a configuration with one power supply line (common
power supply inputs)
If there is no bypass line, it is necessary to insert a jumper between JP and L Bypass
pins according to fig. 20.
Fig. 20: Connecting cables in a configuration with common power supply inputs.
