EVER UPS POWERLINE RT 6000 / 10000 series instruction manual
10 kVA model view:

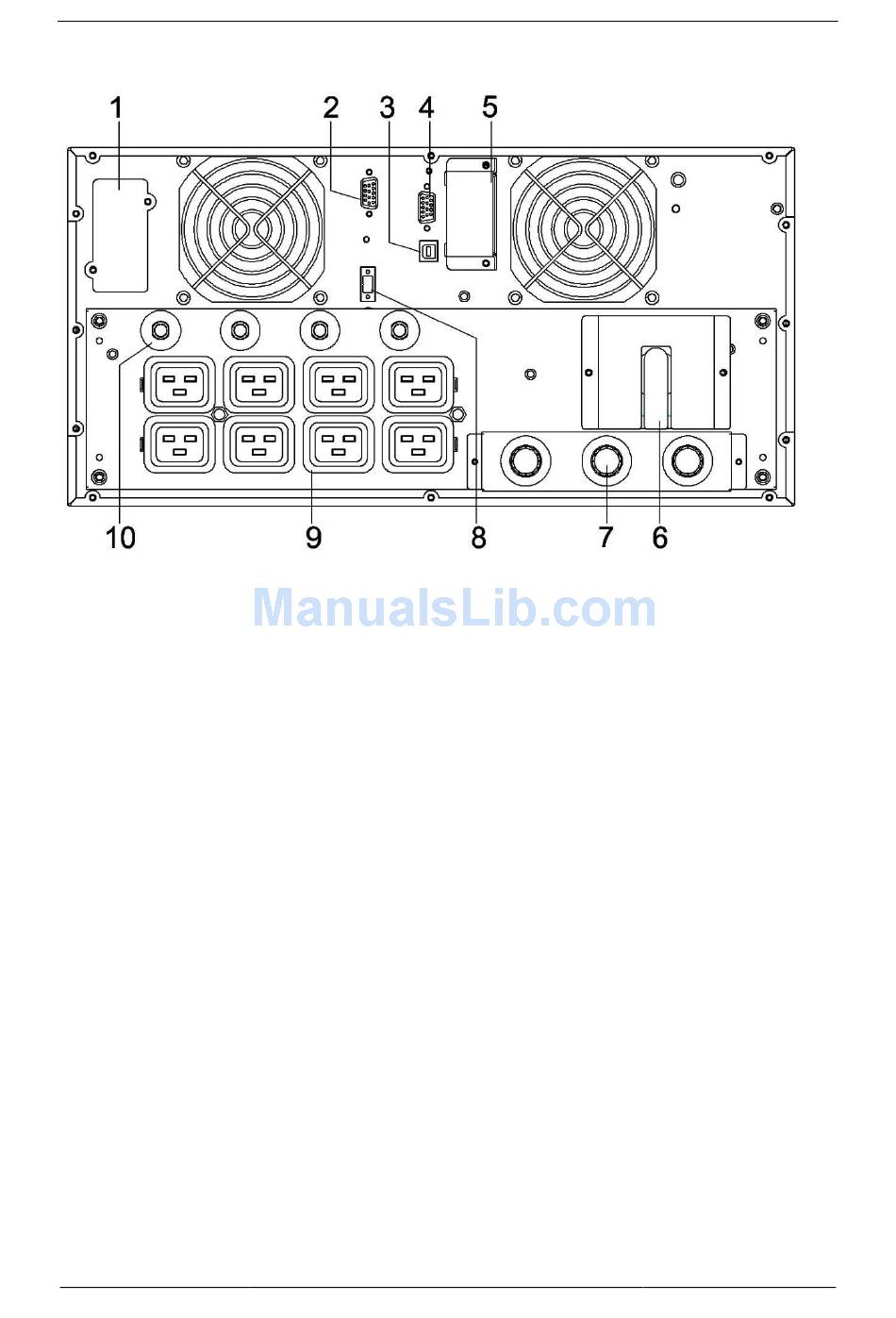

Fig. 5: View of the rear panel elements in POWERLINE RT 10000 UPS.
1. SNMP card slot.
2. Communication interface for parallel operation.
3. USB communication port.
4. RS-232 communication port.
5. External batteries modules connector.
6. Service bypass switch.
7. Power supply, output and bypass lines connection clamps.
8. EPO connector.
9. 16 A output sockets.
10. Output circuit fuses.
16
Technical Support, tel.: +48 61 6500 400
www.ever.eu
2017-01-05 13:16
