EVER UPS POWERLINE RT 6000 / 10000 series instruction manual
Table 3 presents a description of icons of the LCD display. For a more detailed
description of the LCD display and the structure of its menu, see chapter: CONTROL
PANEL AND LCD DISPLAY FUNCTIONS – MENU STRUCTURE.

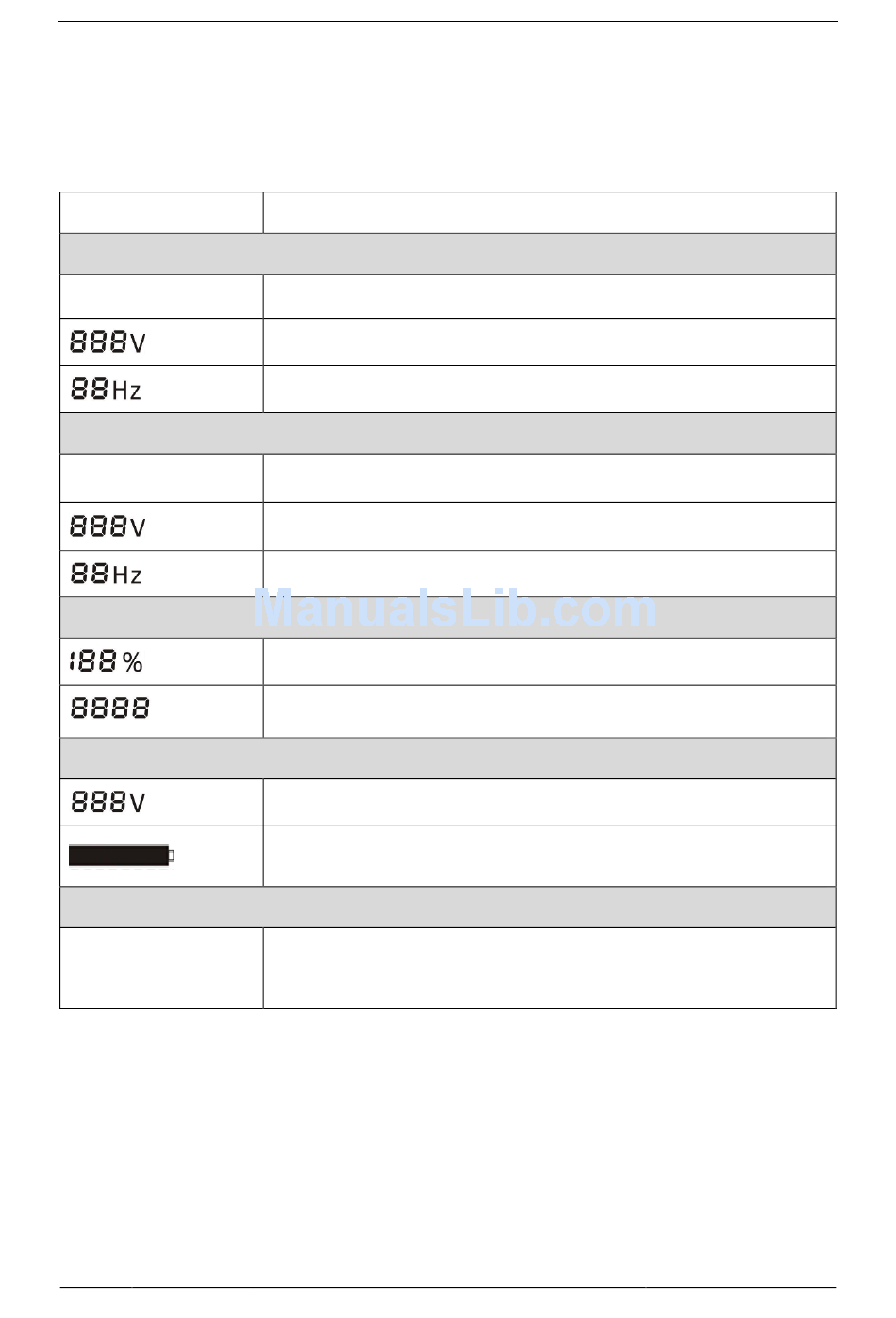

Table 3. Description of LCD display icons
DISPLAY ELEMENT
INPUT
LINE
OUTPUT
OUTPUT
LOAD
W
BATTERIES
MODE /WARNING
Symbol in the upper
middle part of
screen
21
www.ever.eu
Input parameters information field
Input voltage value
Input voltage frequency
Output parameters information field
Output voltage value
Output voltage frequency
UPS load level in %
UPS load level in W
Indicates battery voltage
Battery symbol (the percentage of the dark field changes depending on
the charge level of the batteries)
UPS operation mode or warnings indicators (symbol types and its
the
meaning) are described in chapter: "Operation modes and warnings"
Pomoc Techniczna, tel.: +48 61 6500 400
DESCRIPTION
