EVER UPS POWERLINE RT 6000 / 10000 series instruction manual
Rack Kit for installing UPS units / battery modules in a Rack (optional).
A set of elements for installing the unit in the Rack:
1. 2 front rack supports with installation screws,
2. 2 sliding rack guides (with profiles and their screws).
For the detailed list of the Rack Kit elements with assembling instructions for the
Rack, see the assembling instructions at www.ever.eu.
ELEMENTS OF THE UPS - REAR PANEL
Elements of the rear panel of specific POWERLINE RT models is shown in fig. 4 and
5.
6 kVA model view:

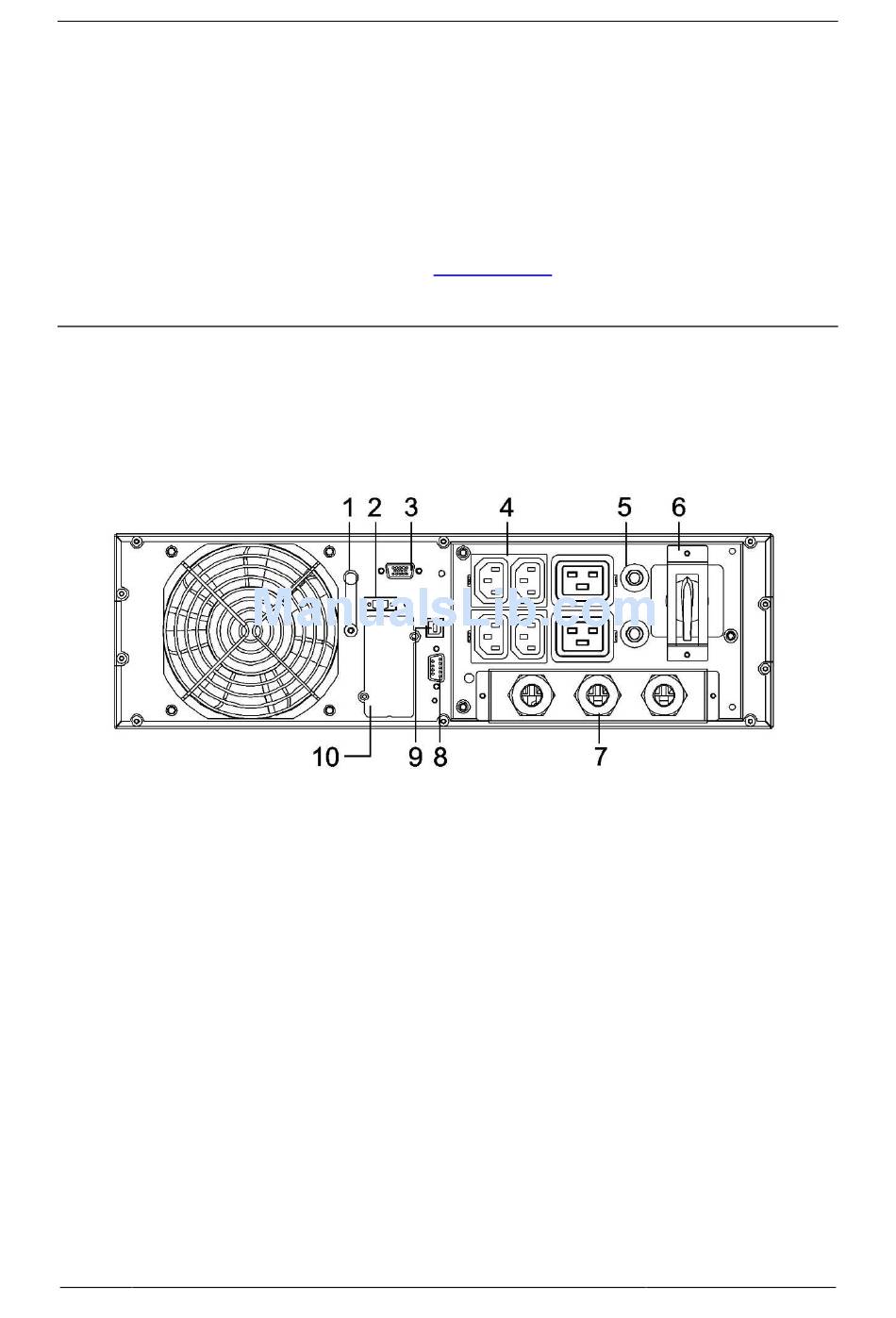

Fig. 4: View of the rear panel elements in POWERLINE RT 6000 UPS.
1. Functional earthing clamp.
2. EPO connector.
3. Communication interface for parallel operation.
4. Output sockets (10 A) x 4 + output sockets (16 A) x 2
5. Output circuit fuses.
6. Service bypass switch.
7. Power supply, output and bypass lines connection clamps.
8. RS-232 communication port.
9. USB communication port.
10. SNMP card slot.
