Levelflex FMP51, FMP52, FMP54

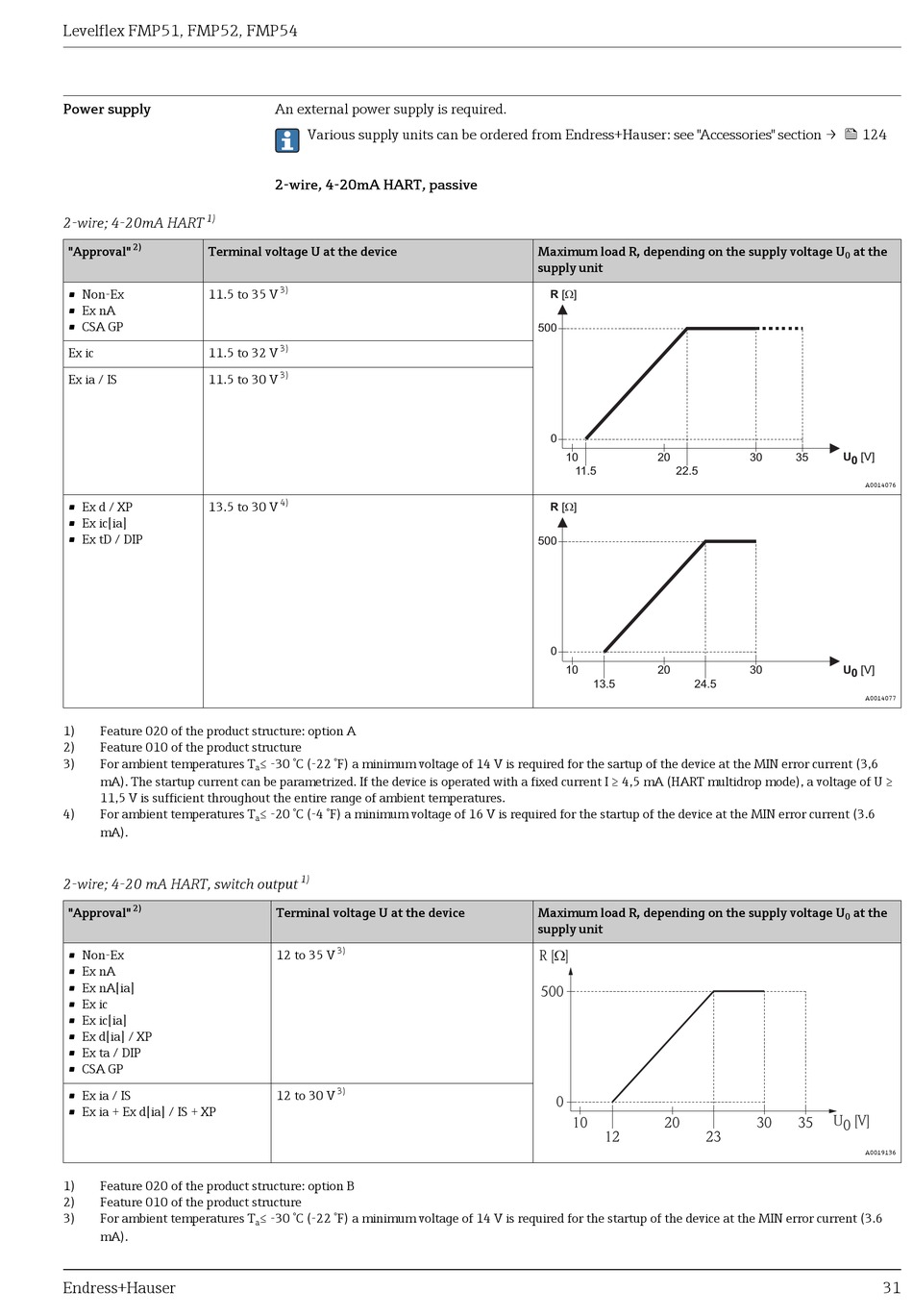

Power supply

1)
2-wire; 4-20mA HART
2)
"Approval" Terminal voltage U at the device
• Non-Ex 11.5 to 35 V
• Ex nA
• CSA GP
Ex ic 11.5 to 32 V
Ex ia / IS 11.5 to 30 V
• Ex d / XP 13.5 to 30 V
• Ex ic[ia]
• Ex tD / DIP
1) Feature 020 of the product structure: option A
2) Feature 010 of the product structure
3) For ambient temperatures T
mA). The startup current can be parametrized. If the device is operated with a fixed current I ≥ 4,5 mA (HART multidrop mode), a voltage of U ≥
11,5 V is sufficient throughout the entire range of ambient temperatures.
4) For ambient temperatures T
mA).
2-wire; 4-20 mA HART, switch output
2)
"Approval"
• Non-Ex
• Ex nA
• Ex nA[ia]
• Ex ic
• Ex ic[ia]
• Ex d[ia] / XP
• Ex ta / DIP
• CSA GP
• Ex ia / IS
• Ex ia + Ex d[ia] / IS + XP
1) Feature 020 of the product structure: option B
2) Feature 010 of the product structure
3) For ambient temperatures T
mA).
Endress+Hauser
An external power supply is required.
Various supply units can be ordered from Endress+Hauser: see "Accessories" section →  124
2-wire, 4-20mA HART, passive
3)
3)
3)
4)
≤ -30 °C (-22 °F) a minimum voltage of 14 V is required for the sartup of the device at the MIN error current (3,6
a
≤ -20 °C (-4 °F) a minimum voltage of 16 V is required for the startup of the device at the MIN error current (3.6
a
1)
Terminal voltage U at the device
3)
12 to 35 V
3)
12 to 30 V
≤ -30 °C (-22 °F) a minimum voltage of 14 V is required for the startup of the device at the MIN error current (3.6
a
Maximum load R, depending on the supply voltage U
supply unit
R [ ] W
500
0
10 20
11.5 22.5
R [ ] W
500
0
10 20
13.5 24.5
Maximum load R, depending on the supply voltage U
supply unit
R [ ] W
500
0
10 20
12 23
at the
0
30 35 U 0 [V]
A0014076
30 U 0 [V]
A0014077
at the
0
U 0 [V]
30 35
A0019136
