Endress+Hauser Levelflex FMP51 Technical Information page 80

R
ø4 (0.16)
80

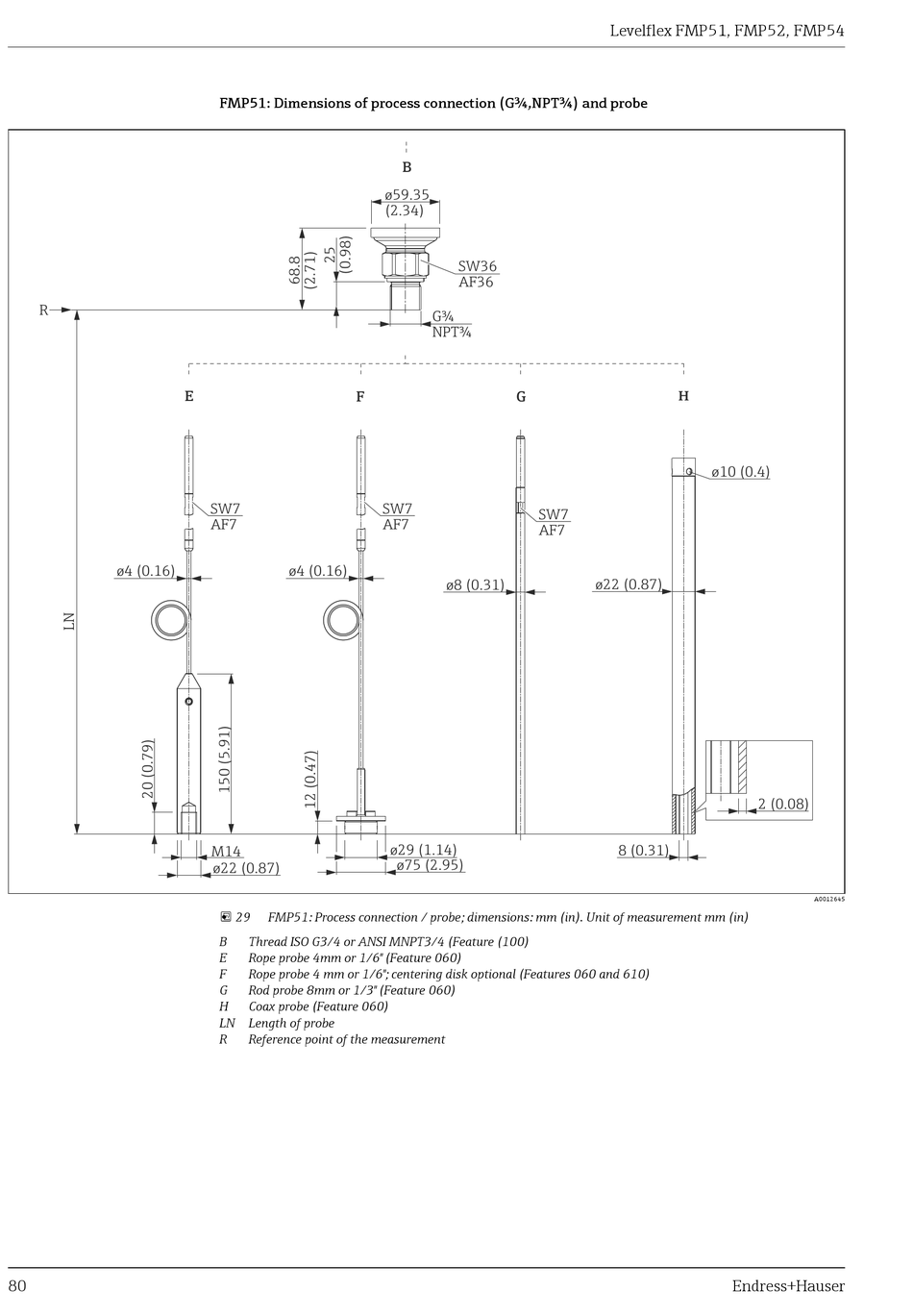

FMP51: Dimensions of process connection (G¾,NPT¾) and probe
E
SW7
AF7
ø4 (0.16)
M14
ø22 0 ( .87)
 29 FMP51: Process connection / probe; dimensions: mm (in). Unit of measurement mm (in)
B Thread ISO G3/4 or ANSI MNPT3/4 (Feature (100)
E Rope probe 4mm or 1/6" (Feature 060)
F Rope probe 4 mm or 1/6"; centering disk optional (Features 060 and 610)
G Rod probe 8mm or 1/3" (Feature 060)
H Coax probe (Feature 060)
LN Length of probe
R Reference point of the measurement
B
ø59.35
(2.34)
SW36
AF36
G¾
NPT¾
F G
SW7
AF7
ø8 (0.31)
ø29 (1.14)
ø75 (2.95)
Levelflex FMP51, FMP52, FMP54
H
SW7
AF7
ø22 (0.87)
8 (0.31)
ø10 (0.4)
2 (0.08)
A0012645
Endress+Hauser
