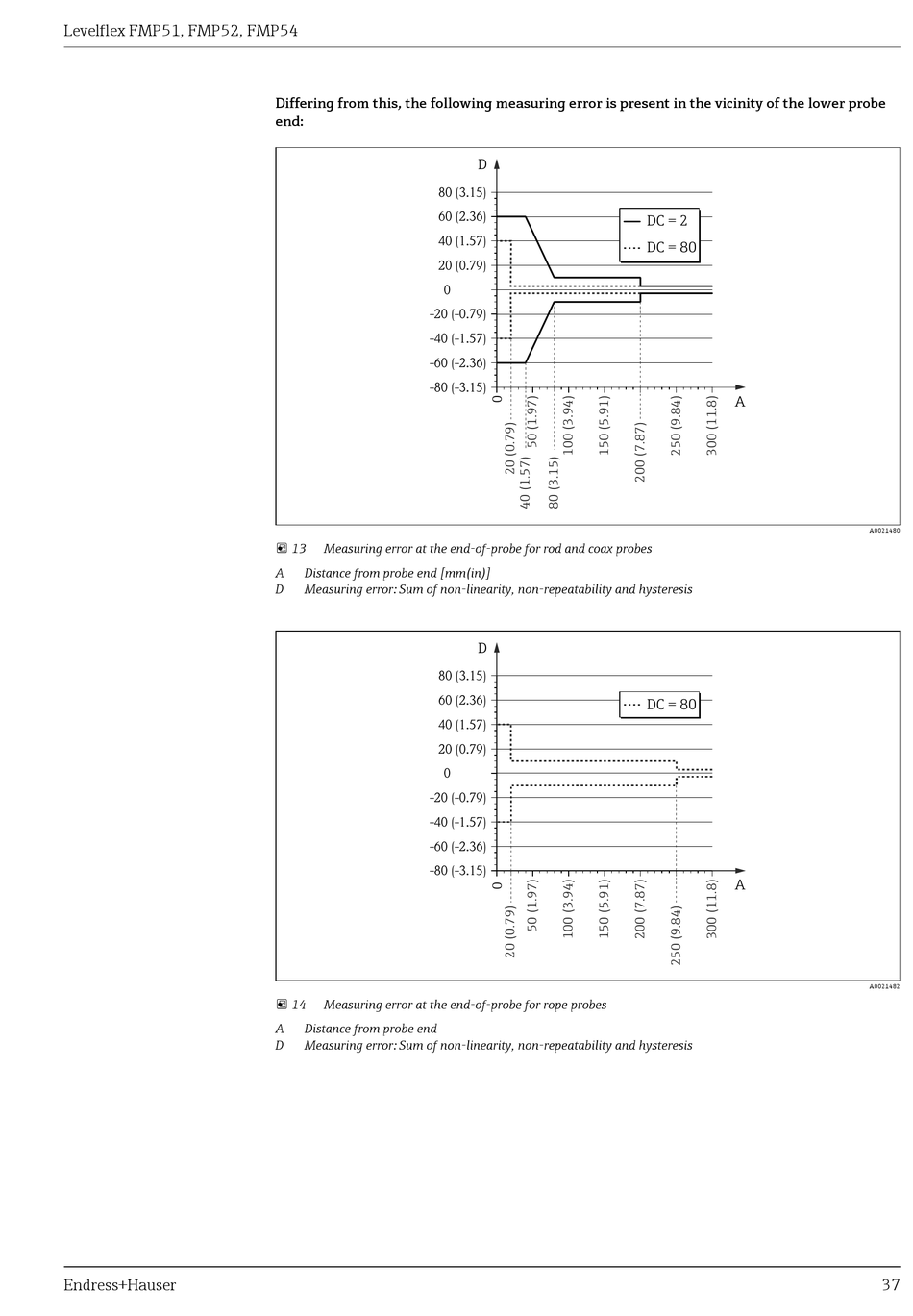

Differing from this, the following measuring error is present in the vicinity of the lower probe
end:
80 (3.15)
60 (2.36)
40 (1.57)
20 (0.79)
0
-20 (-0.79)
-40 (-1.57)
-60 (-2.36)
-80 (-3.15)
 13 Measuring error at the end-of-probe for rod and coax probes
A Distance from probe end [mm(in)]
D Measuring error: Sum of non-linearity, non-repeatability and hysteresis
80 (3.15)
60 (2.36)
40 (1.57)
20 (0.79)
0
-20 (-0.79)
-40 (-1.57)
-60 (-2.36)
-80 (-3.15)
 14 Measuring error at the end-of-probe for rope probes
A Distance from probe end
D Measuring error: Sum of non-linearity, non-repeatability and hysteresis
D
DC = 2
DC = 80
D
DC = 80
A
A0021480
A
A0021482
