Levelflex FMP51, FMP52, FMP54
A
SW60
AF60
ø90
(3.54)
SW14
AF14
M40x1
E
SW14
AF14
ø4 (0.16)
M14
ø22 (0.87)
Endress+Hauser

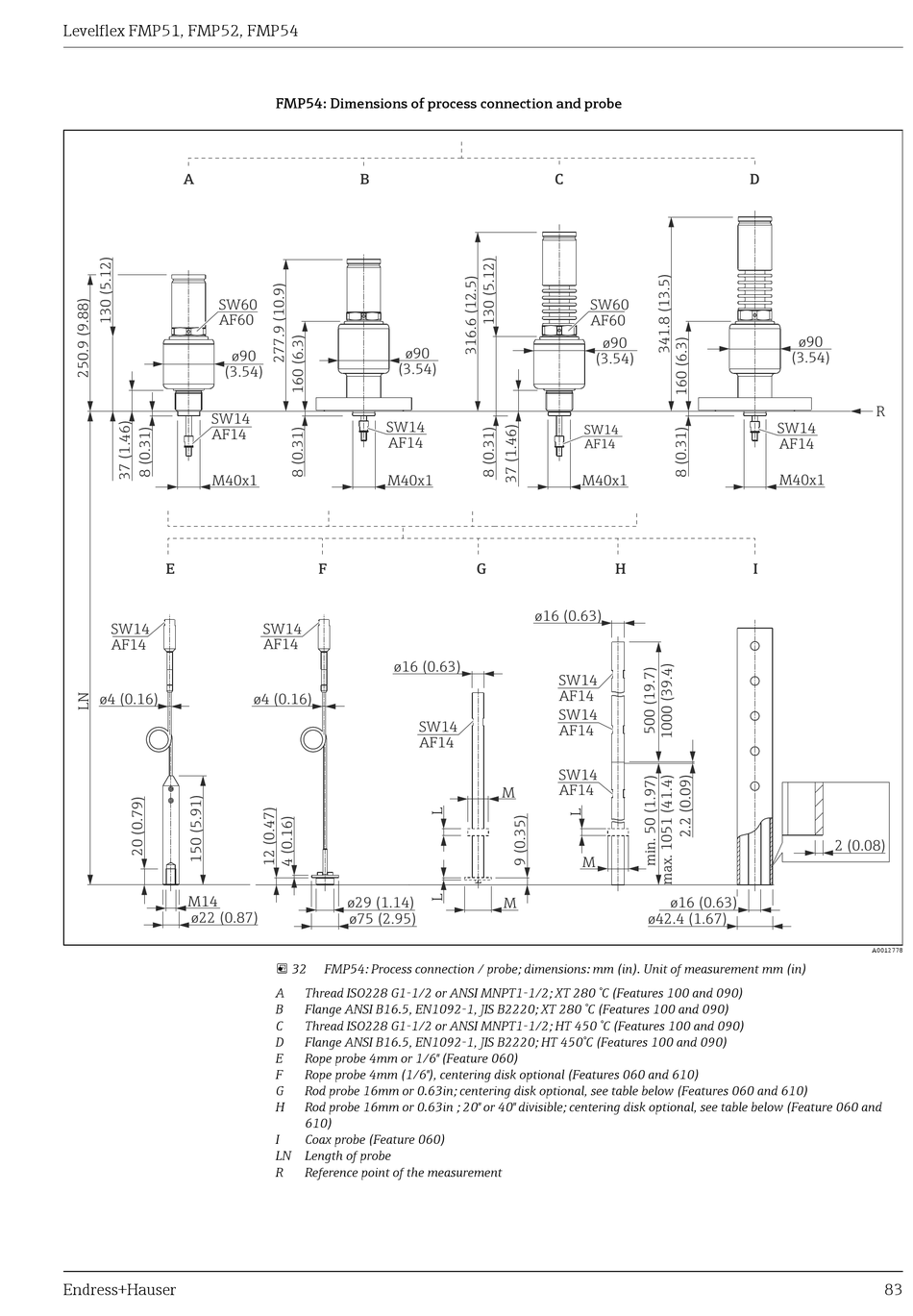

FMP54: Dimensions of process connection and probe
B
ø90
(3.54)
SW14
AF14
M40x1
F
SW14
AF14
ø16 (0.63)
ø4 (0.16)
SW14
AF14
ø29 (1.14)
ø75 (2.95)
 32 FMP54: Process connection / probe; dimensions: mm (in). Unit of measurement mm (in)
A Thread ISO228 G1-1/2 or ANSI MNPT1-1/2; XT 280 °C (Features 100 and 090)
B Flange ANSI B16.5, EN1092-1, JIS B2220; XT 280 °C (Features 100 and 090)
C Thread ISO228 G1-1/2 or ANSI MNPT1-1/2; HT 450 °C (Features 100 and 090)
D Flange ANSI B16.5, EN1092-1, JIS B2220; HT 450°C (Features 100 and 090)
E Rope probe 4mm or 1/6" (Feature 060)
F Rope probe 4mm (1/6"), centering disk optional (Features 060 and 610)
G Rod probe 16mm or 0.63in; centering disk optional, see table below (Features 060 and 610)
H Rod probe 16mm or 0.63in ; 20" or 40" divisible; centering disk optional, see table below (Feature 060 and
610)
I Coax probe (Feature 060)
LN Length of probe
R Reference point of the measurement
C
SW60
AF60
ø90
(3.54)
SW14
AF14
M40x1
G H
ø16 (0.63)
SW14
AF14
SW14
AF14
SW14
AF14
M
M
M
ø42.4 (1.67)
D
ø90
(3.54)
SW14
AF14
M40x1
I
2 (0.08)
ø16 (0.63)
R
A0012778
