HART loop converter HMX50
The dynamic variables of the HART protocol can be converted into individual 4 to 20 mA sections
using the HART loop converter HMX50. The variables are assigned to the current output and the
measuring ranges of the individual parameters are defined in the HMX50.
HART

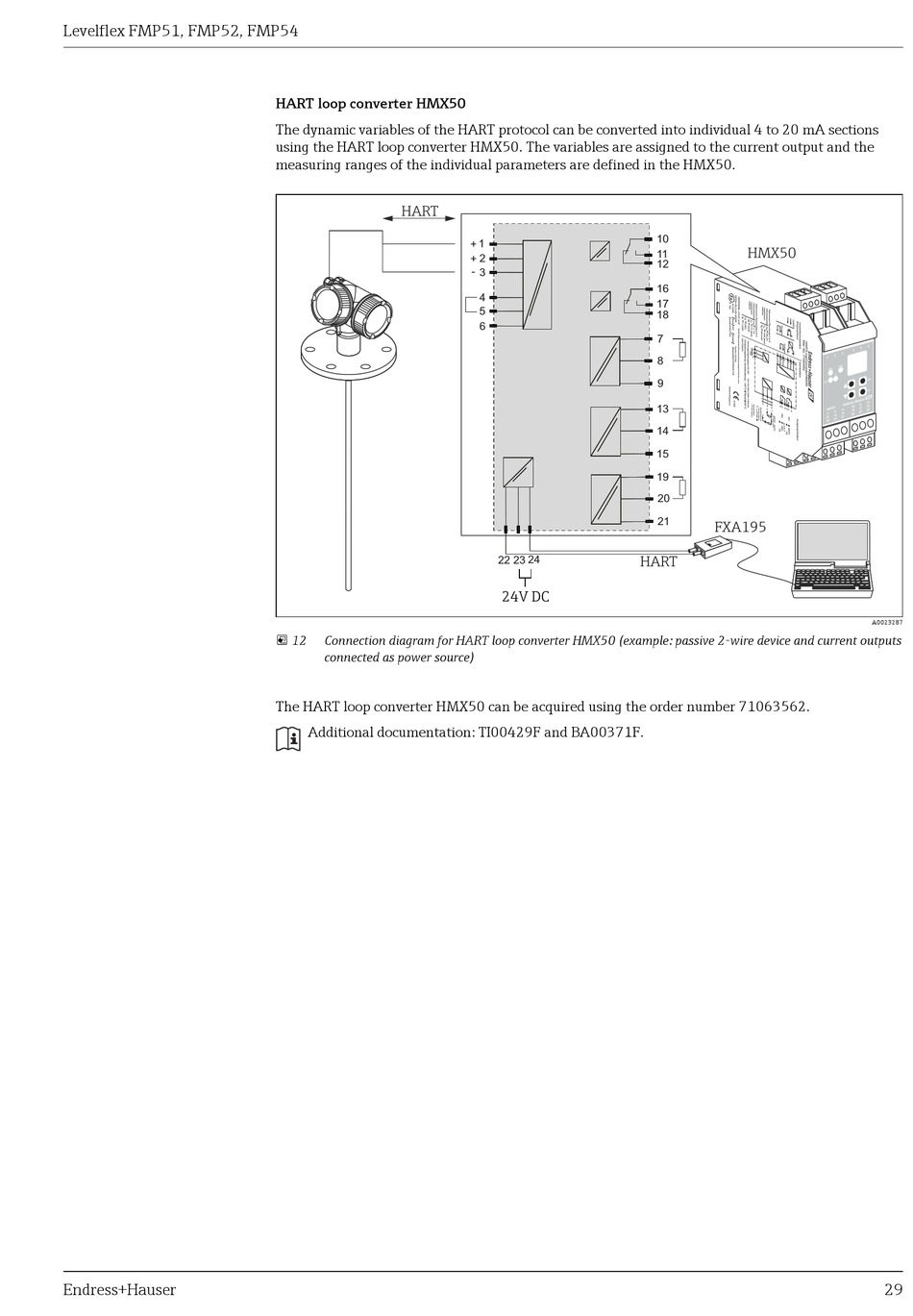

 12 Connection diagram for HART loop converter HMX50 (example: passive 2-wire device and current outputs
connected as power source)
The HART loop converter HMX50 can be acquired using the order number 71063562.
Additional documentation: TI00429F and BA00371F.
