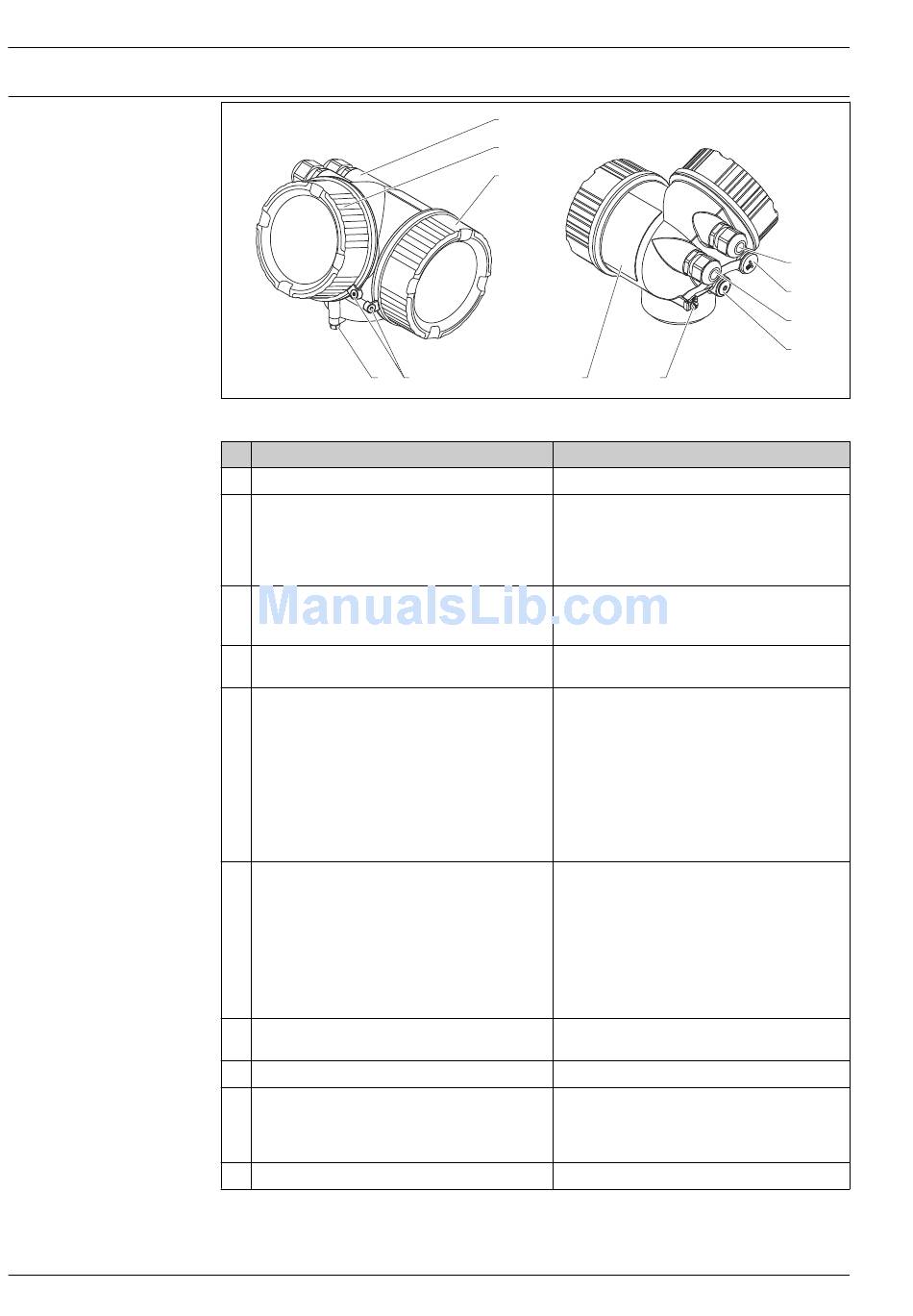

Materials: GT19 housing

88
4
No. Part
1 Housing
2.1 Cover of the electronics compartment
2.2 Cover of the terminal compartment
4 Lock at the housing neck
5.1 Dummy plug, cable gland, adapter or plug
(depending on the device version)
5.2 Dummy plug, cable gland or adapter (depending on
the device version)
6 Dummy plug or M12 socket (depending on the
device version)
7 Pressure relief stopper
8 Ground terminal
9 Nameplate
1) For the version with M12 plug the sealing material is Viton.
2) For the version with 7/8" plug, the sealing material is NBR.
1
2.1
2.2
3 9
Material
PBT
• Cover, depending on the device version:
– PA (see-through cover)
– PBT (non-transparent cover)
• Cover seal: EPDM
• Thread-coating: Graphite-based lubricant varnish
• Cover: PBT
• Cover seal: EPDM
• Thread-coating: Graphite-based lubricant varnish
• Screw: A4-70
• Clamp: 316L (1.4404)
• Dummy plug, depending on the device version:
– PE
– PBT-GF
• Cable gland, depending on the device version:
– Nickel-plated brass (CuZn)
– PA
• Adapter: 316L (1.4404/1.4435)
• Seal: EPDM
• M12 plug: Nickel-plated brass
• 7/8" plug: 316 (1.4401)
• Dummy plug, depending on the device version:
– PE
– PBT-GF
– Nickel-plated steel
• Cable gland, depending on the device version:
– Nickel-plated brass (CuZn)
– PA
• Adapter: 316L (1.4404/1.4435)
• Seal: EPDM
• Dummy plug: Nickel-plated brass (CuZn)
• M12 socket: Nickel-plated GD-Zn
Nickel-plated brass (CuZn)
• Screw: A2
• Spring washer: A4
• Clamp: 304 (1.4301)
• Holder: 304 (1.4301)
Sticker
Levelflex FMP51, FMP52, FMP54
8
1)
2)
Endress+Hauser
5.2
6
5.1
7
A0013788
