PICO840/842 Pico-ITX Board

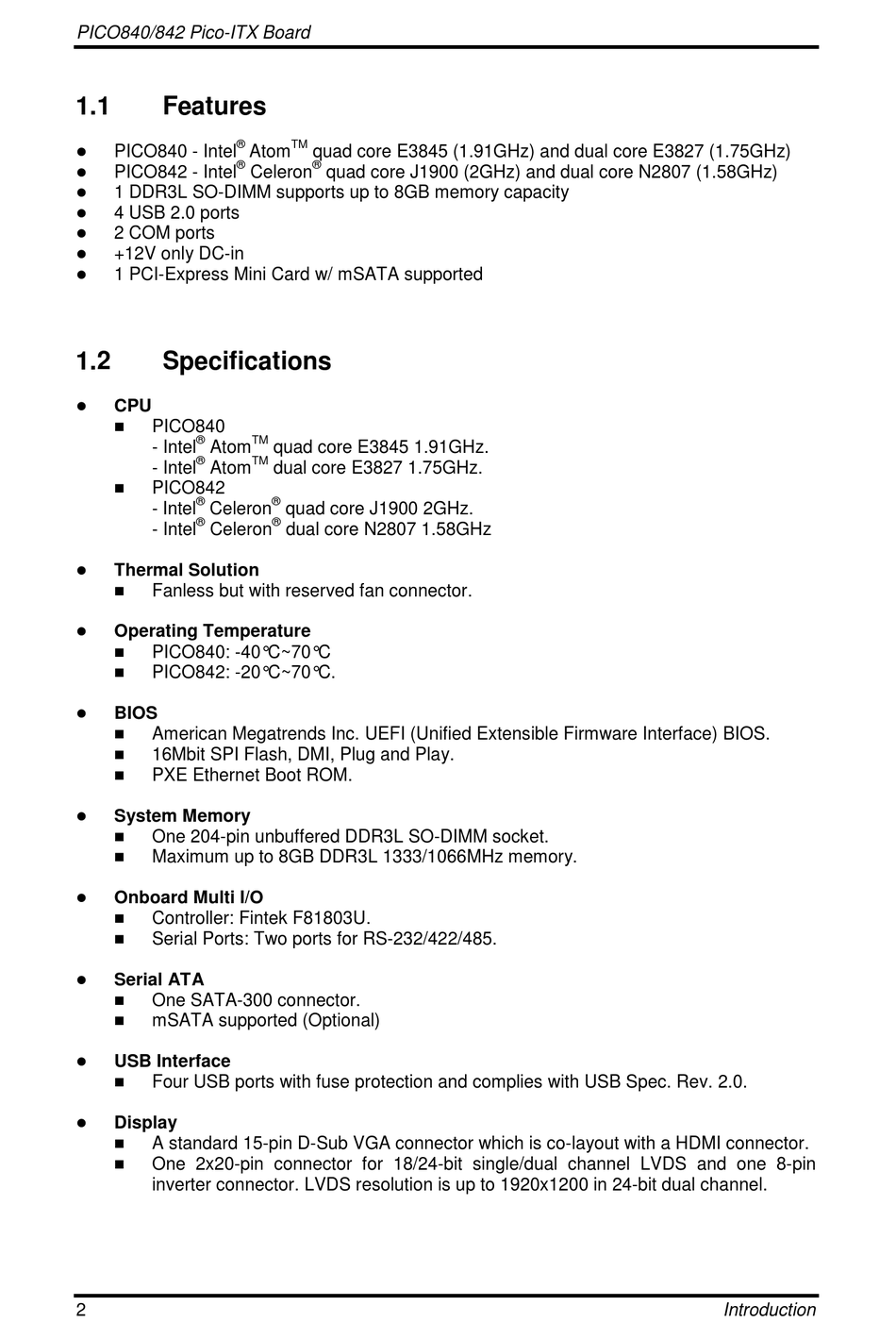

1.1

Features

®
 PICO840 - Intel
®
 PICO842 - Intel
 1 DDR3L SO-DIMM supports up to 8GB memory capacity
 4 USB 2.0 ports
 2 COM ports

+12V only DC-in
 1 PCI-Express Mini Card w/ mSATA supported
1.2

Specifications

 CPU
 PICO840
®
- Intel Atom
®
- Intel Atom
 PICO842
®
- Intel Celeron
®
- Intel Celeron
 Thermal Solution
 Fanless but with reserved fan connector.
 Operating Temperature
 PICO840: -40°C~70°C
 PICO842: -20°C~70°C.
 BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.

16Mbit SPI Flash, DMI, Plug and Play.
 PXE Ethernet Boot ROM.
 System Memory
 One 204-pin unbuffered DDR3L SO-DIMM socket.
 Maximum up to 8GB DDR3L 1333/1066MHz memory.
 Onboard Multi I/O
 Controller: Fintek F81803U.
 Serial Ports: Two ports for RS-232/422/485.
 Serial ATA
 One SATA-300 connector.

mSATA supported (Optional)
 USB Interface
 Four USB ports with fuse protection and complies with USB Spec. Rev. 2.0.
 Display
 A standard 15-pin D-Sub VGA connector which is co-layout with a HDMI connector.
 One 2x20-pin connector for 18/24-bit single/dual channel LVDS and one 8-pin
inverter connector. LVDS resolution is up to 1920x1200 in 24-bit dual channel.
2
TM
Atom quad core E3845 (1.91GHz) and dual core E3827 (1.75GHz)
®
Celeron quad core J1900 (2GHz) and dual core N2807 (1.58GHz)
TM
quad core E3845 1.91GHz.
TM
dual core E3827 1.75GHz.
®
quad core J1900 2GHz.
®
dual core N2807 1.58GHz
Introduction
