3.5.3

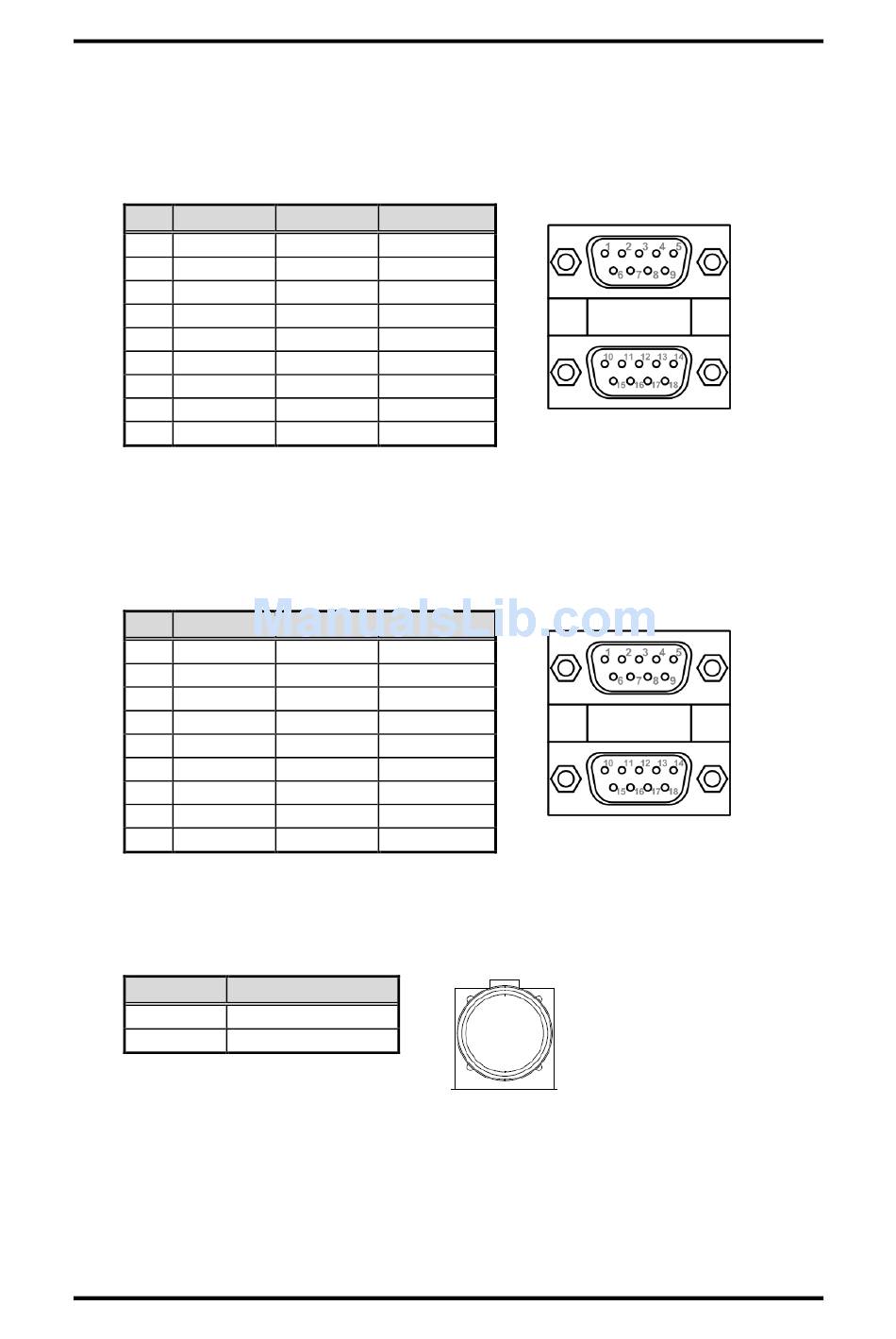

COM1 Connector (CN3)

CN3 is the lower connector of the double-deck DB-9 connector. Only COM1 comes with
power capability on DCD and RI pins by setting jumpers (see section 3.4.1). The pin
assignments of RS-232/422/485 are listed in table below. If you need COM1 port to
support RS-422 or RS-485, please refer to section 5.4.
Pin
RS-232
10
DCD
11
RXD
12
TXD
13
DTR
14
GND
15
DSR
16
RTS
17
CTS
18
RI
3.5.4

COM2 Connector (CN4)

CN4 is the upper connector of the double-deck DB-9 connector. The pin assignments of
RS-232/422/485 are listed in table below. If you need COM2 port to support RS-422 or
RS-485, please refer to section 5.4.
Pin
RS-232
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
3.5.5

System Power Switch (CN5)

This switch is for turning on/off the system power.
Function
Description
On
Turn on/off system
Off
Keep system status
AX93283 I/O Board
RS-422
RS-485
TX-
Data-
TX+
Data+
RX+
N.C
RX-
N.C.
No use
No use
No use
No use
No use
No use
No use
No use
No use
No use
RS-422
RS-485
TX-
Data-
TX+
Data+
RX+
N.C
RX-
N.C.
No use
No use
No use
No use
No use
No use
No use
No use
No use
No use
PICO840/842 Pico-ITX Board
CN3
CN4
27
